PF3100 Quick User Guide
November 2017
PROFIRE PF3100
Quick User Guide
PROFIRE
1.855.776.3473
solutions@profireenergy.com
Page 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF3100 and is the answer not in the manual?

Questions and answers

Related Manuals for ProFire PF3100

Summary of Contents for ProFire PF3100

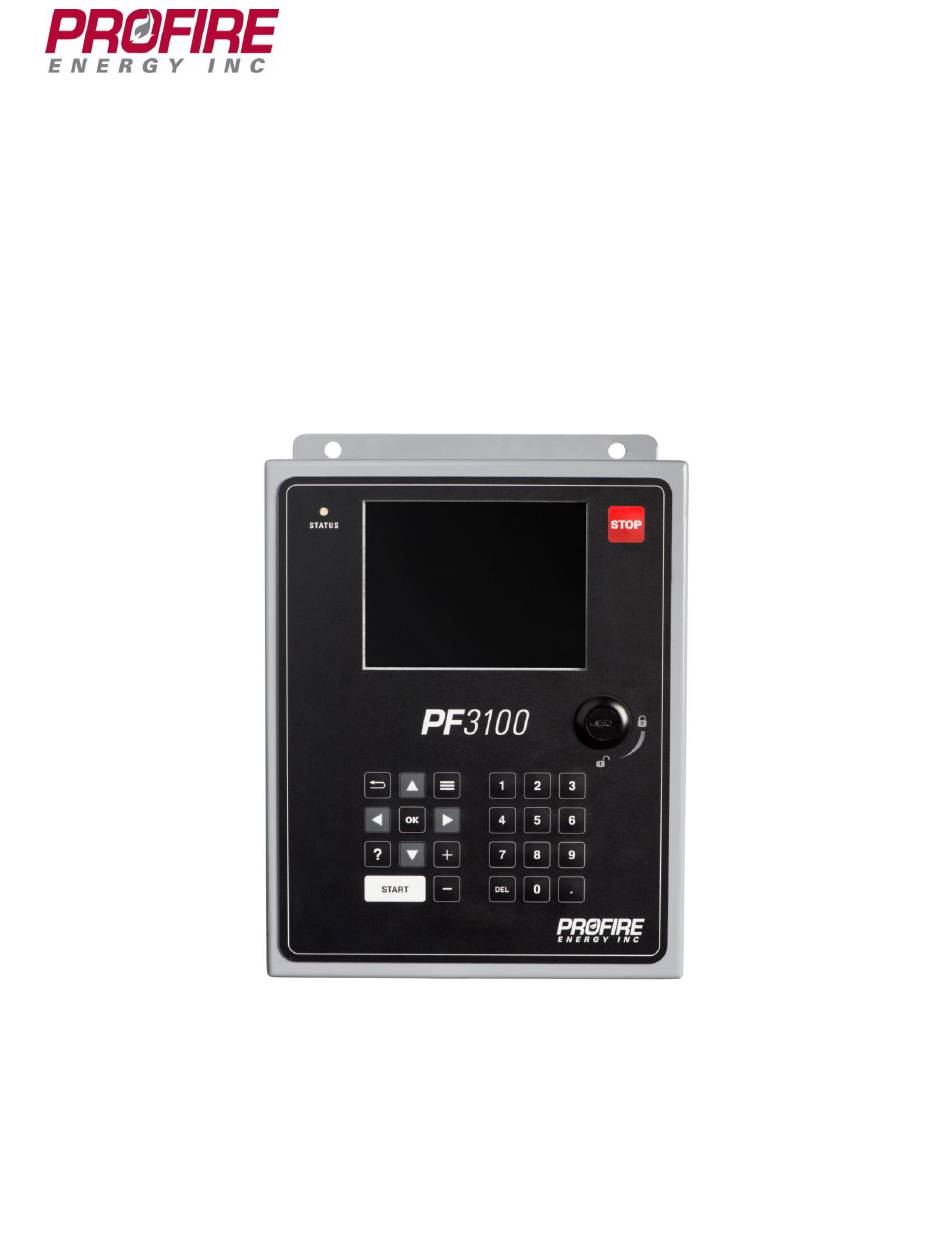

  • Page 1 PF3100 Quick User Guide November 2017 PROFIRE PF3100 Quick User Guide PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 1 of 10...

  • Page 2: Multi-Button

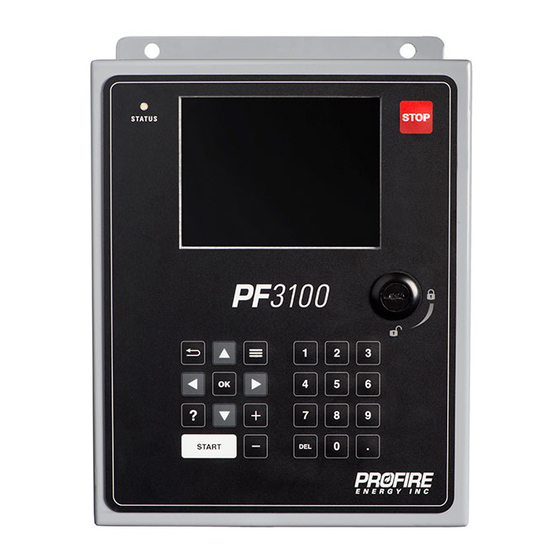

    PF3100 Quick User Guide 1. PF3100 User Interface (UI) The PF3100 User Interface is intuitive and easy to read: Power LED On = powered. Off = not powered. Status LED Off = not powered. Flashing green = start-up sequence. Green = system is running.

  • Page 3: Number Pad

    PF3100 Quick User Guide OK Key Used to enter a menu, acknowledge a prompt, save an edited setting, or return to the home screen. Help Key Allows access to system help. One button press brings up tooltips for items on the current screen.

  • Page 4: Start/Stop Switch

    PF3100 Quick User Guide Start/Stop Switch This switch is located at the side of the box and can be used to turn the system off and on. Enclosure Door Lock (not pictured) Mechanism for securing the door. A flat-head (standard or slotted) screwdriver is needed to open and close the enclosure.
  • Page 5 PF3100 Quick User Guide Appliance Status Screen Appliance Status screen allows you to view the status of the entire appliance you have selected, including temperatures, input states, output states, and overall status. If there are any alerts, a star symbol (*) will appear next to the Alerts tab.

  • Page 6: Alert Screen

    PF3100 Quick User Guide Alert Screen Alert Screen indicates the presence of any active alarms, waits, and warnings. Use the arrow keys to select whichever alarm, wait, or warning you would like to see and press OK. In the above example, if you select the alarm...

  • Page 7: Adjusting Settings

    PF3100 Quick User Guide 3. Setpoints Adjusting Setpoints from the Status Screen From this screen, you can use the arrow keys to get to an item that you wish to view. Once the item is highlighted (red), press OK. This screen enables you to access any setpoints you may need.

  • Page 8: Quick Adjust Screen

    PF3100 Quick User Guide Quick Adjust Screen From the System Overview Appliance Status screen, the primary process temperature may be adjusted in small increments. Press the Multi-Button when on one of these screens to open up the quick adjust dialog as shown...

  • Page 9: Stopping The System

    PF3100 Quick User Guide 4. Stopping the System Stop Query Screen From any screen on the UI, press the STOP key on the keypad and this screen will appear: You will be prompted to confirm that you want to stop. Press the...

  • Page 10: Shutdown Screen

    It is recommended that you take note immediately of the reason(s) for the shutdown. Once you have selected Acknowledge, this information will no longer be available. Ever. So write it down. 5. Profire Contact Information If you have any concerns or questions about this information, please contact PROFIRE as follows: U.S. 1.801.796.5127...
