PF3100 BMS Controller Card Product Manual R 1.0
PROFIRE PF3100 BMS Controller Card
PF3101-00
The PROFIRE PF3100 BMS Controller Card is the hub for most of the wiring: it is a power producer, meaning
that other cards may draw power from it.
PROFIRE
1.855.776.3473
solutions@profireenergy.com
Page 1 of 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ProFire PF3101-00
Summary of Contents for ProFire PF3101-00
- Page 1 PF3100 BMS Controller Card Product Manual R 1.0 PROFIRE PF3100 BMS Controller Card PF3101-00 The PROFIRE PF3100 BMS Controller Card is the hub for most of the wiring: it is a power producer, meaning that other cards may draw power from it. PROFIRE 1.855.776.3473...
-
Page 2: Table Of Contents
Wiring Diagrams ............................9 Mounting Instructions ..........................9 Enclosure Specifications ........................... 10 Instructions for Use ..........................10 Preventative Maintenance & Inspection ....................11 Important Safety Information ........................12 PROFIRE Contact Information ........................12 PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 2 of 12... -
Page 3: Introduction
1. Introduction Functional Description The PROFIRE PF3100 BMS Controller Card is the hub for most of the wiring coming from the valve train. This card accepts 12-24 VDC input and is responsible for re-distributing power to attached peripheral devices. Model Types... -
Page 4: Card Information

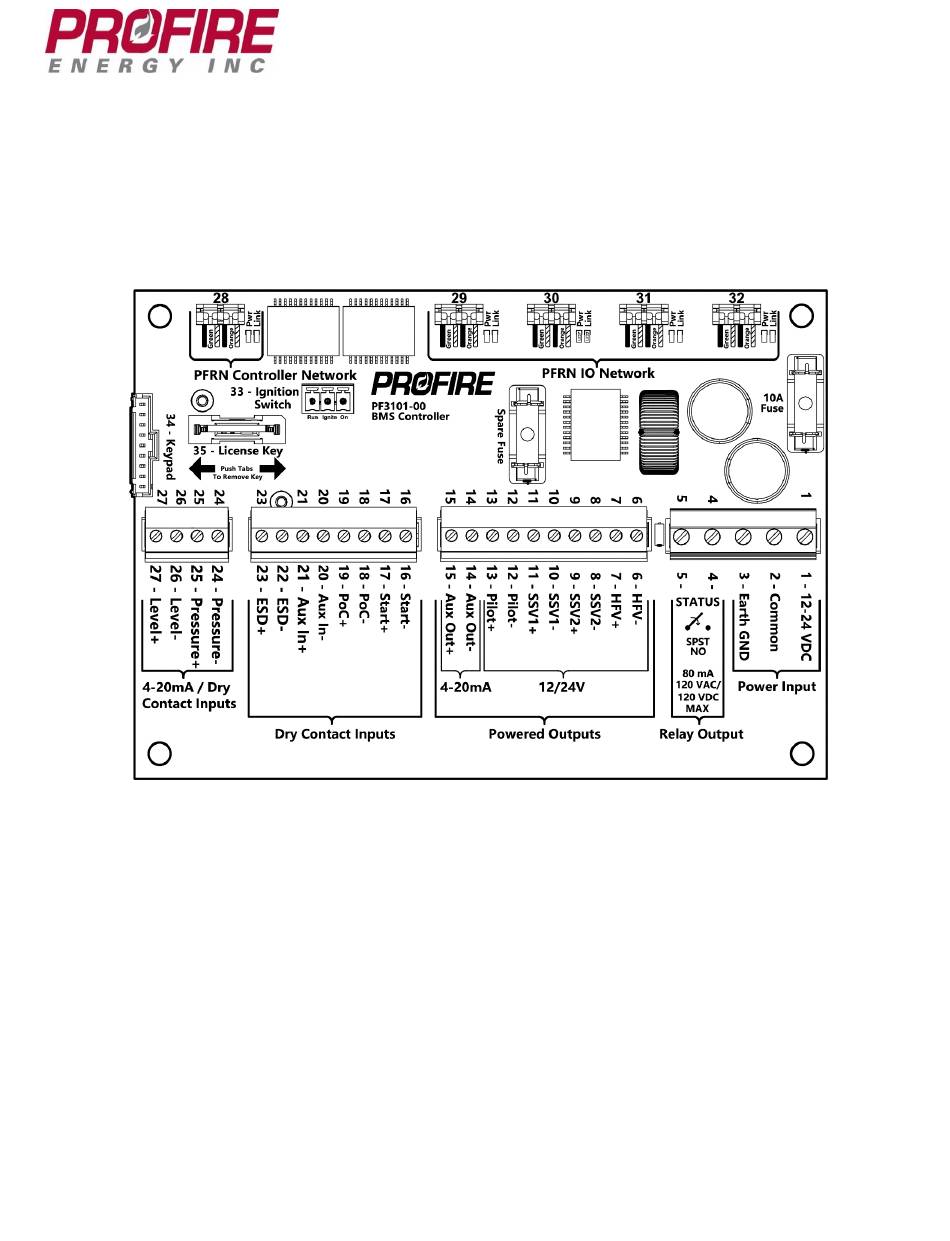

PF3100 BMS Controller Card Product Manual 3. Card Information Card Specifications The ambient temperature rating for the BMS Card is -40°C (-40°F) to +60°C (+140°F). Card Diagram PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 4 of 12... - Page 5 12-24 VDC 2mA Sink Digital Input. Connect to the Proof of Closure (POC) + switch in one or more main valves. 12-24 VDC 100mA Max 12/24 VDC power output. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 5 of 12...
- Page 6 External switch on the enclosure Ignition Ignition with run, stop, and ignite 3.3 VDC Switch Switch capabilities. Controls status LEDs on front of Keypad 3.3 VDC Keypad enclosure. License Not in use. 3.3 VDC License Key PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 6 of 12...
- Page 7 ➢ The POC must be closed for the duration of the purge time, otherwise the purge time starts over again. ➢ The contact must close within 2 seconds of the BMS commanding the main valves to close, otherwise the system shuts down. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 7 of 12...
- Page 8 This input can be configured via software to work with either a dry contact or a 4-20mA signal. The following options are available: ➢ 4-20mA Level input (with high and low trip points) ➢ High Level Switch input only ➢ High and Low Level Switch input (wired in series) PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 8 of 12...
-
Page 9: Wiring Diagrams
1. Install four (4) #10-32 screws through the BMS Controller card (as indicated in the image below) and attach them to the upper set of enclosure stand-offs. Please note the board orientation. 2. Torque to 26 in*lb. PROFIRE 1.855.776.3473 solutions@profireenergy.com... -
Page 10: Enclosure Specifications
The BMS Controller card is designed to be used with a certified BMS controller as part of the PF3100 platform. The only connection to the BMS is the PFRN. External power is not required for the board. Configuration of the card settings are performed on the PF3100 User Interface. PROFIRE 1.855.776.3473 solutions@profireenergy.com... -
Page 11: Preventative Maintenance & Inspection
➢ Routine inspections should be performed on all equipment. If any abnormality is found, corrective actions should be taken. If the abnormality cannot be corrected, contact PROFIRE as soon as possible. ➢ A qualified technician should perform any tests necessary to confirm that the equipment is still in a safe condition. -
Page 12: Important Safety Information
Before installing the PF3100 BMS Controller Card, please review the list of warnings below. Product use in a manner not specified by PROFIRE is not recommended. Failure to observe the following warnings may result in death, electrocution, property damage, product damage, product damage, government fines, or malfunction of the product itself.
