PF3100 Thermocouple Card Product Manual R 1.0

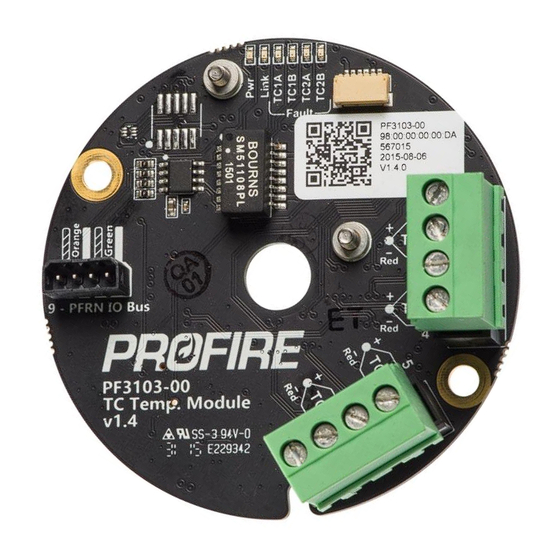

PROFIRE PF3100 Thermocouple Card
PF3103-00
The PROFIRE PF3100 Thermocouple Card relays the measured temperature from the appliance to a controller
for use in process control and high temperature safety shutdown.
PROFIRE
1.855.776.3473
solutions@profireenergy.com
Page 1 of 11
Advertisement
Table of Contents
Related Manuals for ProFire PF3100 Series
Summary of Contents for ProFire PF3100 Series
- Page 1 PF3100 Thermocouple Card Product Manual R 1.0 PROFIRE PF3100 Thermocouple Card PF3103-00 The PROFIRE PF3100 Thermocouple Card relays the measured temperature from the appliance to a controller for use in process control and high temperature safety shutdown. PROFIRE 1.855.776.3473 solutions@profireenergy.com...
-
Page 2: Table Of Contents
Wiring Diagram ............................7 Mounting Instructions ..........................8 Enclosure Specifications ..........................9 Instructions for Use ............................ 9 Preventative Maintenance & Inspection ..................... 9 Important Safety Information ........................10 PROFIRE Contact Information ........................11 PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 2 of 11... -
Page 3: Introduction
Temperature Module - No Probe temperature probe 2. Certifications PROFIRE strives to ensure that certifications are updated as quickly as they become available for all of our products. Thermocouple Card - Hazardous Location Rating Certification: Class I, Div 2, Grp ABCD; T4; Type 4 IEC 61508 SIL 2, CSA 22.2 No. -
Page 4: Card Information
PF3100 Thermocouple Card Product Manual 3. Card Information Card Specifications The ambient temperature rating for the Thermocouple card is -40°C (-40°F) to +60°C (+140°F). Card Diagram PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 4 of 11... - Page 5 Single = N thermocouple input Port Electrical Ratings Safety Description Rated Name Voltage Current Number PFRN IO The PFRN IO connect port is used to 36 VDC 1A Max communicate with the BMS card. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 5 of 11...
- Page 6 Single element thermocouples are NOT considered safety rated and should only be used for monitoring non- safety critical processes. Dual element thermocouples ARE considered safety rated when configured in software as such, and when wired correctly. These inputs may be used for monitoring safety critical processes. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 6 of 11...
-
Page 7: Wiring Diagram
Wiring Specifications 12-30 AWG can be used for all connections. External fuses must be installed according to the local electrical code. Wire gauge size must also be selected in accordance with local electrical codes. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 7 of 11... -
Page 8: Mounting Instructions
PF3100 Thermocouple Card Product Manual 5. Mounting Instructions Mounting the Card in the Enclosure 1. Install four (4) #10-32 screws through the Thermocouple card (as indicated in the image below). 2. Torque to 26 in*lb. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 8 of 11... -
Page 9: Enclosure Specifications
➢ Routine inspections of all equipment should be performed. If any abnormality is found, corrective actions should be taken. If the abnormality cannot be corrected, contact PROFIRE. ➢ A qualified technician should perform any tests necessary to confirm that the equipment is still in a safe condition. -
Page 10: Important Safety Information
Before installing the PF3100 Thermocouple card, please review the list of warnings below. Product use in a manner not specified by PROFIRE is not recommended. Failure to observe the following warnings may result in death, electrocution, property damage, product damage, product damage, government fines, or malfunction of the product itself. -
Page 11: Profire Contact Information
“Quick User Guide” document at the following link: http://3100.profireenergy.com/pf3100-documentation/ 10. PROFIRE Contact Information If you have any concerns or questions about this product, please contact PROFIRE as follows: U.S. 1.801.796.5127 321 South, 1250 West Suite 1...
