ProFire PF2200 BMS CARD Replacement Manual

PF2200 BMS CARD
REPLACEMENT GUIDE
WARNING
• Explosion Hazard. Do not disconnect while
the circuit is live or unless the area is free of
ignitible concentrations.
• Explosion Hazard. Do not remove or replace
fuses unless power has been disconnected or
the area is free of ignitible concentrations.
OVERVIEW
This document contains step-by-step instructions to replace the Profire PF2200 BMS Card.

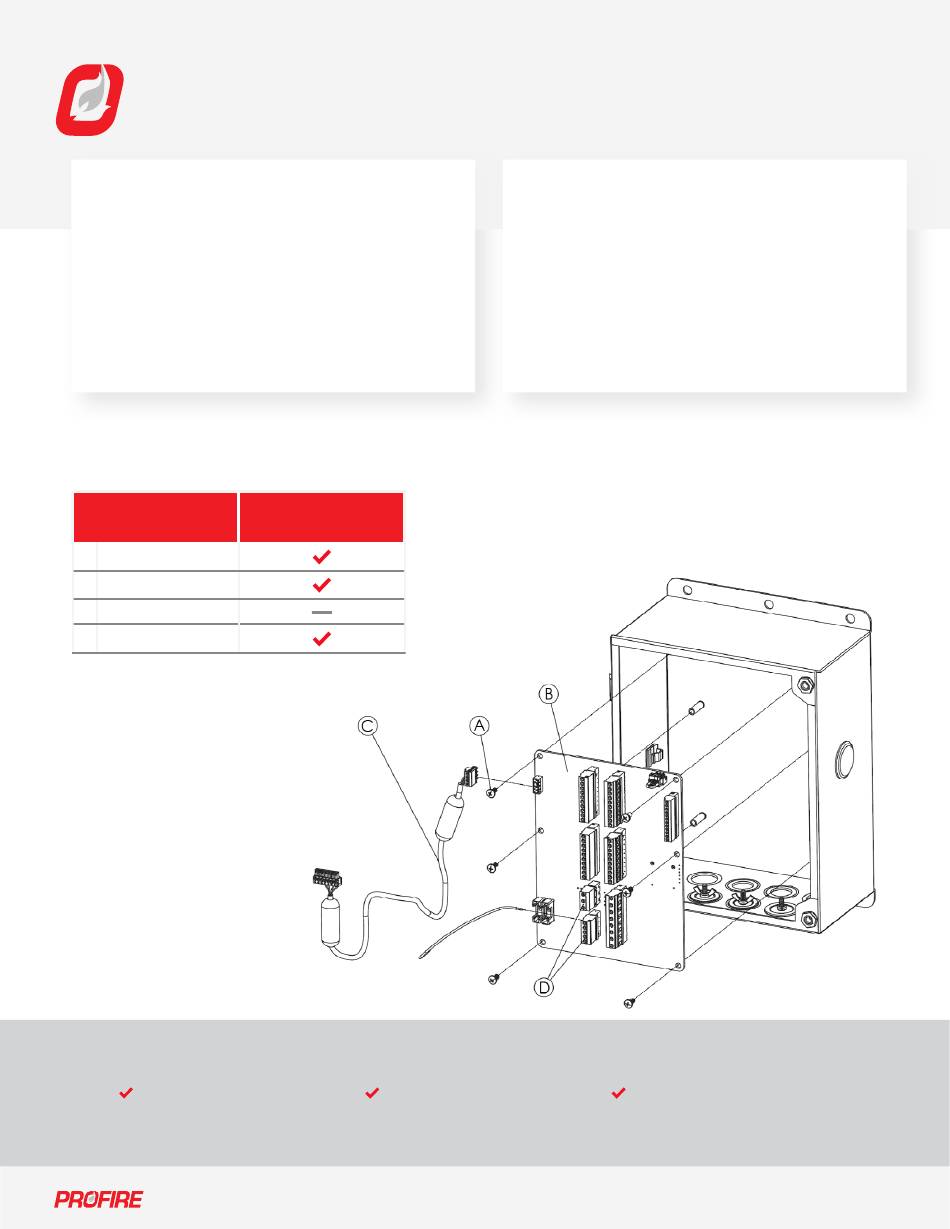

COMPONENTS
A
6 x Phillips Screws*
B
1 x BMS Card
C
1 x PFN Cable
D
9 x Headers**
*Plastic enclosures only require 4 Phillips Screws. The extra 2
may be discarded.
**9/10 headers are included. The 10th header is included on
the PFN cable (C)
BEFORE YOU GO TO SITE
Check that all components listed in the
table above are included in the box and that
you have any others that you may need to
complete the repair.
WWW.PROFIREENERGY.COM | 855.PRO.FIRE | SUPPORT@PROFIREENERGY.COM
INCLUDED WITH
REPLACEMENT CARD
Ensure that you have the correct BMS Card
before going to site since SB, DB and FD
BMS cards are not interchangeable.
AVERTISSEMENT
• Risque d'Explosion. Ne pas débrancher
pendant que le circuit est sous tension ou à
moins que l'emplacement ne soit exempt de
concentrations inflammables.
• Risque d'Explosion. Ne pas retirer ni remplac-
er les fusibles ni à moins que l'alimentation
n'ait été coupée ou que l'emplacement ne
soit exempt de concentrations inflammables.
Ensure that you have a USB stick with the
necessary firmware to upgrade the system
to in case the firmware in the cards on site
do not match.
DOC-001127 v1.4 WEB
