Fromm FS360 Assembly Instruction Manual

Fromm FS360 Assembly Instruction Manual

Scale unit
Hide thumbs Also See for FS360:

Advertisement

Quick Links

Download this manual See also: Service Manual
Assembly Instruction / ELS /
Numbers & Drawings
Scale unit FS360
Version 01 Machines
Version 01 List
Website : www.fromm-stretch.com
It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2019
www.fromm-stretch.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS360 and is the answer not in the manual?

Questions and answers

Related Manuals for Fromm FS360

Summary of Contents for Fromm FS360

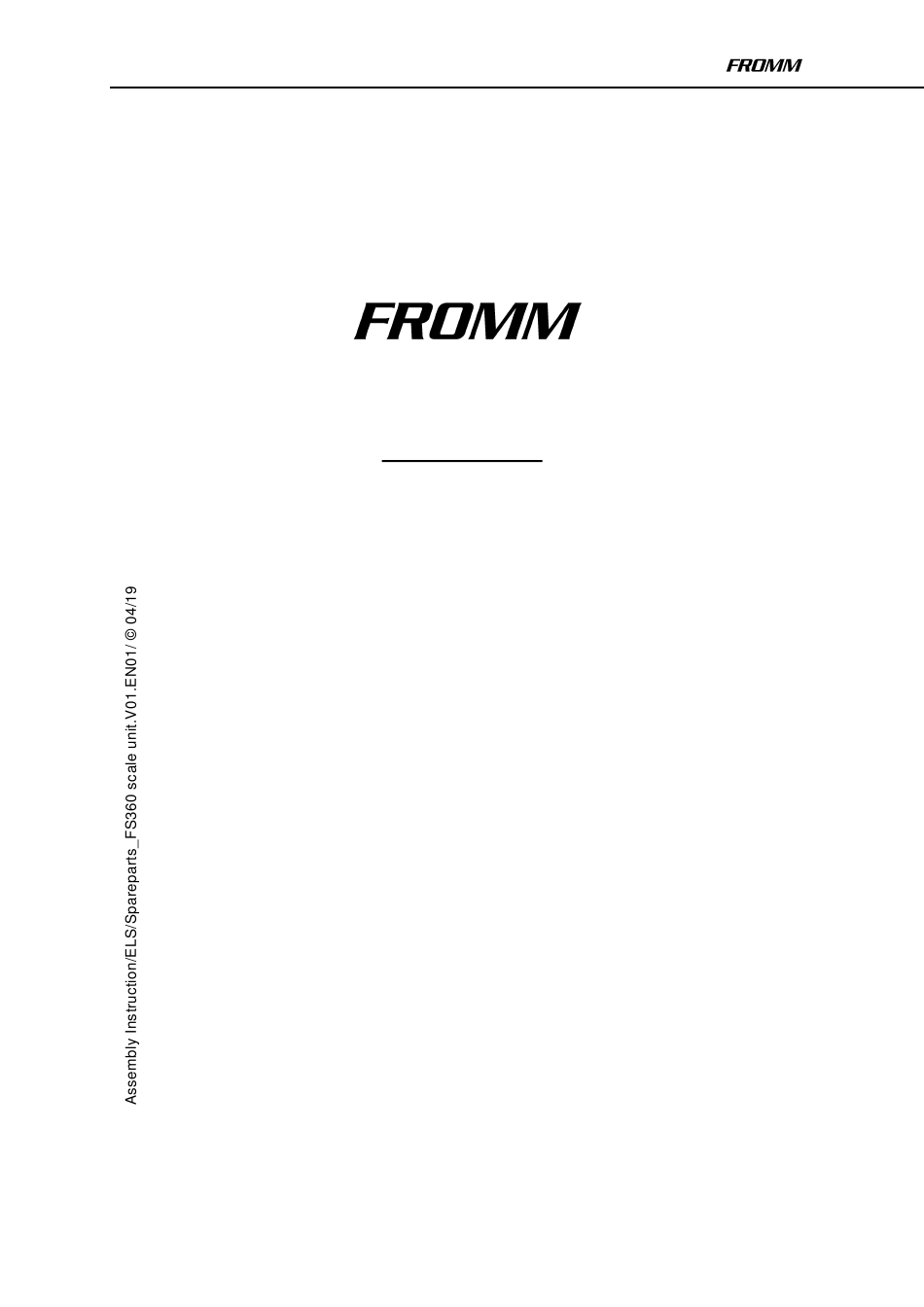

  • Page 1 Assembly Instruction / ELS / Numbers & Drawings Scale unit FS360 Version 01 Machines Version 01 List Website : www.fromm-stretch.com It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2019...
  • Page 2 Manual Assembly Instructions Scale unit FS1.0386A for FS360 machine 1. SAFETY INSTRUCTION 1.1. GENERAL SAFETY PRECAUTIONS Carefully read the “Directions for use”, paying particular attention to the “Residual risks”; Pay attention to the safety warnings; Use the machine only for the use for which it is designed;...
  • Page 3 Do not carry out interventions with the machine on, but only carry them out after having stopped the machine and put it in safety conditions; FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 4 The employer must adequately document the training obtained by the operators. FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 5 20°C); The installation area must not be subject to or contain sources of electromagnetic interference or radiation (X rays, laser light etc); FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 6 If any of the aforementioned conditions cannot be met, any additional measures necessary to ensure safe operating conditions (e.g. special electrical components, air conditioning systems etc.) must be defined during the contractual stage. FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.

  • Page 7: Main Components

    C) Control console: contains the user interface for the calibration and weighing of pallets; D) Fixing the load cell foot. FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 8 FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr. 000000000227 | Swift Nr. IT-BAPPIT21130 IT-37013 Caprino V.se. (VR) info@fromm-stretch.com Iban. IT11-W-05034-85830-000000000227 ITALY www.fromm-stretch.com...
  • Page 9 Labeling machine (A): it allows to print a label with the weighing information to be applied on the pallet; Support for indicator (B). FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.

  • Page 10: Technical Data

    2.3. TECHNICAL DATA The illustration and table show the dimensional characteristics and technical data of the machine. Dimensions referred to FS360 machine with turntable Ø1500mm, mast H=2100mm. 2.3.1. TECHNICAL CHARACTERISTICS Value Supply voltage V 220 - 240 1Ph Electric current frequency 50/60 Hz...
  • Page 11 Danger warning Use of this machine in explosive environments or when exposed to the elements is strictly forbidden. FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 12 Carry out the transport with suitable means and adequate capacity. Make sure that the machine and its components are properly anchored to the means of transport. FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 13 4 brackets to the floor through the supplied pressure caps); Bracket to fix FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 14 Height adjustment of load cell feet 4. Fix the position of the feet blocking them with the appropriate nut; Locking load cells feet FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 15 Position of brackets for table brackets for table diameter 1500mm diameter 1650mm Bracket positioning FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr.
  • Page 16 1500mm diameter table, the second one is relative to the 1650mm table. Turntable diameter 1500mm FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 17 Turntable diameter 1650mm Metric thread M6 Threading holes to fix the carter FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr. 000000000227 | Swift Nr. IT-BAPPIT21130 IT-37013 Caprino V.se.
  • Page 18 N1.6109, split washers N1.6215, nuts N1.5106) as shown in the figure; Holes position for fixing the machine to the scale unit structure FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 19 Fixing the machine to the scale unit structure Mast side fixing FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr. 000000000227 | Swift Nr. IT-BAPPIT21130 IT-37013 Caprino V.se.
  • Page 20 Right side carter Left side carter Central side carter FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr. 000000000227 | Swift Nr. IT-BAPPIT21130 IT-37013 Caprino V.se.
  • Page 21 Fixing the weight indicator tool to the mast 12. Place the cables correctly and fix them throught the supplied magnets; Fixing the cables position on the mast FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax.
  • Page 22 13. Fix the cable coming from the load cells to the structure; 14. Reassemble the disk; FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr.
  • Page 23 FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Bank. Banca Popolare di Verona | IT-37010 | ITALY Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr. 000000000227 | Swift Nr. IT-BAPPIT21130 IT-37013 Caprino V.se. (VR) info@fromm-stretch.com Iban. IT11-W-05034-85830-000000000227 ITALY www.fromm-stretch.com...
  • Page 24 Electrical Scheme Scale unit FS360 Version 01 Machines Version 01 List It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2019 www.fromm-stretch.com...
  • Page 28 Numbers & Drawings Scale unit FS360 Version 01 Machines Version 01 List It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2019 www.fromm-stretch.com...
  • Page 30 FS1.0386A Scale unit complete RAL 5010 Blue Sablè Part no. RIF Description Specification English Q.ty FS1.0358A 1 Group Group scale unit RAL 5010 Blue Sablè FS1.0385A 2 Group Group scale instrument RAL 5010 Blue Sablè Carter for diameter 1650mm FS1.2814 3 Carter Carter protection for base d.1650mm scale unit FS1.2816...
  • Page 32 FS1.0358A Group scale unit RAL 5010 Blue Sablè Part no. RIF Description Specification English Q.ty FS1.0357 1 Group Group junction box FS1.0368 2 Group Group load cell FS1.2770A 3 Structure Welded structure scale unit RAL 5010 Blue Sablè FS1.2774A 4 Bracket Rear fixing bracket RAL 5010 Blue Sablè...
  • Page 34 FS1.0357 Group junction box Part no. RIF Description Specification English Q.ty FS1.2758 1 Junction box Perforated junction box N1.6115 2 Washer Plain washer M4 UNI6592/69 DIN125A zinced N1.6160 3 Washer Plain washer M4 4.3x14x0.8 BN735 Bossard zinced N1.6183 4 Washer Plain washer 3.2x7 UNI6592 zinced N1.7212 5 Bolt...
  • Page 36 FS1.0368 Group load cell Part no. RIF Description Specification English Q.ty FS3.2527Z 1 Plate Plate zinced N1.1581 2 Screw Hexagon head cap screw M12x55 UNI5737 DIN931 zinced N1.5134 3 Nut Nut M12 DIN439B Bossard BN124 zinced N1.6182 4 Washer Washer M12 13x24x2.5 UNI6592 DIN125A zinced N1.6249 5 Washer Lock washer M12 12.2x18x2.5 zinced DIN7980...
  • Page 38 FS1.0385A Group scale instrument RAL 5010 Blue Sablè Part no. RIF Description Specification English Q.ty FS1.2884A 1 Bracket Bracket RAL 5010 Blue Sablè FS1.2891 2 Display Indicator display N1.1546 3 Screw Hexagon head cap screw M10x25 UNI5739 DIN933 zinced N1.5306 4 Nut Self-locking M10 UNI7474 DIN985 zinced N1.6130...
