Viessmann VITODENS 200-W Type B2HA Technical Manual

Wall mounted gas condensing boiler
Hide thumbs Also See for VITODENS 200-W Type B2HA:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
VIESMANN
VITODENS 200-W
Gas condensing boiler
12 to 150 kW
As a multi boiler system up to 594 kW
Technical guide

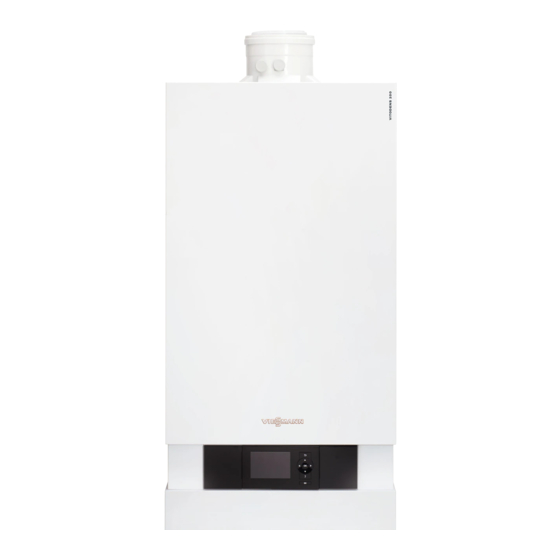

VITODENS 200-W
Type B2HA
Wall mounted gas condensing boiler
With modulating MatriX cylinder burner for natural gas and
LPG
For room sealed or open flue operation
5822432 GB
5/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITODENS 200-W Type B2HA and is the answer not in the manual?

Questions and answers

Related Manuals for Viessmann VITODENS 200-W Type B2HA

Summary of Contents for Viessmann VITODENS 200-W Type B2HA

  • Page 1 VIESMANN VITODENS 200-W Gas condensing boiler 12 to 150 kW As a multi boiler system up to 594 kW Technical guide VITODENS 200-W Type B2HA Wall mounted gas condensing boiler With modulating MatriX cylinder burner for natural gas and For room sealed or open flue operation 5822432 GB 5/2018...

  • Page 2: Table Of Contents

    Index Index Vitodens 200-W 1.1 Product description ....................... 1.2 Specification for Vitodens 200-W, 49 and 60 kW ............1.3 Specification for Vitodens 200-W, 80 and 99 kW ............13 1.4 Specification for Vitodens 200-W, 120 and 150 kW ............21 Installation accessories 2.1 Installation accessories for Vitodens 200-W, 49 and 60 kW .........
  • Page 3 Index (cont.) ■ Multi boiler systems ....................■ Max./min. flow rates Vitodens 200-W ............... 4.4 Intended use ......................... Control units 5.1 Vitotronic 100, type HC1B, for constant temperature operation ........■ Structure and functions ..................... ■ Specification Vitotronic 100, type HC1B ..............5.2 Vitotronic 200, type HO1B, for weather-compensated operation .........

  • Page 4: Vitodens 200-W 1.1 Product Description

    Vitodens 200-W 1.1 Product description Vitodens 200-W, 49 to 60 kW A Inox-Radial heat exchanger made from stainless steel – for high operational reliability and a long service life. High heating output on a very small footprint B Modulating MatriX cylinder burner for extremely clean combus- tion and quiet operation C Variable speed combustion fan for quiet and economical opera- tion...
  • Page 5 Vitodens 200-W (cont.) Vitodens 200-W, 80 to 99 kW A Inox-Radial heat exchanger made from stainless steel – for high operational reliability and a long service life. High heating output on a very small footprint B Modulating MatriX cylinder burner for extremely clean combus- tion and quiet operation C Variable speed combustion fan for quiet and economical opera- tion...
  • Page 6 Vitodens 200-W (cont.) Vitodens 200-W wall mounted condensing boilers up to 150 kW are Packed separately: especially suitable for installation in apartment buildings and com- Vitotronic 100 for constant temperature operation mercial or public buildings. For such cases, the Vitodens 200-W offers an affordable, space saving solution –...

  • Page 7: Specification For Vitodens 200-W, 49 And 60 Kw

    Vitodens 200-W (cont.) 1.2 Specification for Vitodens 200-W, 49 and 60 kW Gas boiler, type B and C, category II Gas condensing boiler 2N3P Rated heating output range when operating with natural gas Details to EN 15502-1 – T = 50/30 °C 12.0 to 49.0 12.0 to 60.0 –...
  • Page 8 Vitodens 200-W (cont.) Gas boiler, type B and C, category II Gas condensing boiler 2N3P Rated heating output range when operating with natural gas Details to EN 15502-1 – T = 50/30 °C 12.0 to 49.0 12.0 to 60.0 – T = 80/60 °C 10.9 to 45.0 10.9 to 55.2...
  • Page 9 Vitodens 200-W (cont.) With heating circuit connection set with low loss header A Heating flow G 1½ (male thread) (connection possible to the left G Cable entry area at the back or to the right) H Without connection sets B Heating return G 1½ (male thread) (connection possible to the K Recommended dimension for a single boiler system left or to the right) L Recommended dimension for a multi boiler system...
  • Page 10 Vitodens 200-W (cont.) The low loss header separates the heat generator circuit (boiler cir- High efficiency circulation pump in the heating circuit connec- cuit) from the subsequent heating circuits. tion set The highly efficient circulation pump uses significantly less power compared to conventional pumps.
  • Page 11 Vitodens 200-W (cont.) Note When the heating circuit pump and circulation pump for cylinder heating are operated in parallel mode (no DHW priority control), we recommend the installation of a DHW cylinder in the secondary side of the heating system. With heating circuit connection set for combination with system separation or heating water buffer cylinder A Expansion vessel connection G 1 (male thread) G Cable entry area at the back...
  • Page 12 Vitodens 200-W (cont.) Note Pressure drop on the heating water side ■ The heating circuit connection set must be ordered separately. For sizing a circulation pump (accessories or on-site provision). ■ Lay all required supply cables on site and route them into the boiler in the specified area.

  • Page 13: Specification For Vitodens 200-W, 80 And 99 Kw

    Vitodens 200-W (cont.) 1.3 Specification for Vitodens 200-W, 80 and 99 kW Gas boiler, type B and C, category II Gas condensing system boiler 2N3P Rated heating output range when operating with natural gas 80.0/99.0 kW Details to EN 15417 –...
  • Page 14 Vitodens 200-W (cont.) Gas boiler, type B and C, category II Gas condensing system boiler 2N3P Rated heating output range when operating with natural gas 80.0/99.0 kW Details to EN 15417 – T = 50/30 °C 20.0 to 80.0 20.0 to 99.0 –...
  • Page 15 Vitodens 200-W (cont.) With heating circuit connection set with low loss header A Heating flow G 1½ (male thread) (connection possible to the left G Cable entry area at the back or to the right) H Without connection sets B Heating return G 1½ (male thread) (connection possible to the K Recommended dimension for a single boiler system left or to the right) L Recommended dimension for a multi boiler system...
  • Page 16 Vitodens 200-W (cont.) When balancing the low loss header, adjust the flow rate on the High efficiency circulation pump in the heating circuit connec- tion set (accessories) boiler side (V primary A) to approx. 10 to 30 % below the flow rate The highly efficient circulation pump uses significantly less power on the system side (V secondary B) (reducing the return tempera- compared to conventional pumps.
  • Page 17 Vitodens 200-W (cont.) 1000 2000 3000 4000 5000 6000 7000 Flow rate in l/h Note When the heating circuit pump and circulation pump for cylinder heating are operated in parallel mode (no DHW priority control), we recommend the installation of a DHW cylinder in the secondary side of the heating system.
  • Page 18 Vitodens 200-W (cont.) With heating circuit connection set for combination with system separation or heating water buffer cylinder A Safety valve G Connection sets (accessories) B Connection for expansion vessel G 1 (male thread) H Without connection set (accessories) C Boiler flow G 1½ (male thread) K Recommended dimension (single boiler system) D Gas connection Rp 1 L Recommended dimension (multi boiler system)
  • Page 19 Vitodens 200-W (cont.) Residual head of the circulation pump 1200 120 1100 110 1000 1000 2000 3000 4000 5000 6000 Flow rate in l/h Curve Pump rate, circulation pump 40 % 50 % 60 % 70 % 80 % 90 % 100 % Adjust the functioning of the circulation pump during commissioning Hydraulic connection/connection requirements...
  • Page 20 Vitodens 200-W (cont.) Note If the residual head of the circulation pump available as an acces- sory is insufficient to overcome the following system pressure drop values, install an additional, external circulation pump on site. In this case, either the heating circuit connection with integral low loss header, a system separation or a heating water buffer cylinder must be used.

  • Page 21: Specification For Vitodens 200-W, 120 And 150 Kw

    Vitodens 200-W (cont.) 1.4 Specification for Vitodens 200-W, 120 and 150 kW Gas boiler, type B and C, category II Gas condensing system boiler 2N3P Rated heating output range when operating with natural gas Details to EN 15417 – T = 50/30 °C 32.0 to 120.0 32.0 to 150.0...
  • Page 22 Vitodens 200-W (cont.) Gas boiler, type B and C, category II Gas condensing system boiler 2N3P Rated heating output range when operating with natural gas Details to EN 15417 – T = 50/30 °C 32.0 to 120.0 32.0 to 150.0 –...
  • Page 23 Vitodens 200-W (cont.) With heating circuit connection set with low loss header A Heating flow G 2 (male thread) (connection possible to the left H Without connection sets or to the right) K Recommended dimension for single boiler system without B Heating return G 2 (male thread) (connection possible to the left mounting frame or to the right)
  • Page 24 Vitodens 200-W (cont.) When balancing the low loss header, adjust the flow rate on the High efficiency circulation pump in the heating circuit connec- tion set (accessories) boiler side (V primary A) to approx. 10 to 30 % below the flow rate The highly efficient circulation pump uses significantly less power on the system side (V secondary B) (reducing the return tempera- compared to conventional pumps.
  • Page 25 Vitodens 200-W (cont.) Pressure drop on the heating water side DHW cylinder connection set for connecting the DHW cylinder For sizing a cylinder loading pump (on site). upstream of the low loss header, see accessories. 1000 2000 3000 4000 5000 6000 7000 Flow rate in l/h...
  • Page 26 Vitodens 200-W (cont.) With heating circuit connection set for combination with system separation or heating water buffer cylinder 165.5 165.5 A Safety valve H Without connection set (accessories) B Connection for expansion vessel G 1 (male thread) K Recommended dimension (single boiler system without mount- C Boiler flow G 2 (male thread) ing frame) D Gas connection Rp 1...
  • Page 27 Vitodens 200-W (cont.) Circulation pump VI PARA 30/1-12 Rated voltage Power consumption – max. – min. Variable speed (Δp constant or Δp variable), fully wired. Residual head of the circulation pump 1200 1100 1000 1000 2000 3000 4000 5000 6000 7000 8000 9000...
  • Page 28 Vitodens 200-W (cont.) Hydraulic connection/connection requirements Control unit setting Circulation pump setting Coding address/group Ext. In Multi boiler system 30:0/boiler/2 Recommended for Δt = 15 K = 3 ≙ 6.87 m – 120 kW: = 6 ≙ 8.60 m – 150 kW: Multi stage circulation pump (on site) 30:0/boiler/2 Note...

  • Page 29: Installation Accessories 2.1 Installation Accessories For Vitodens 200-W, 49 And 60 Kw

    Installation accessories 2.1 Installation accessories for Vitodens 200-W, 49 and 60 kW Heating circuit connection set with variable speed high efficiency circulation pump and low loss header Part no. ZK03663 Connections G 1½ (male thread) Components: ■ Boiler drain & fill valve ■...

  • Page 30: Connection Set For Combination Of Vitodens 200-W With Chp Unit

    Installation accessories (cont.) Connection set for combination of Vitodens 200-W with CHP unit Part no. 7237422 For combination with the connection set for heating circuit with high efficiency circulation pump and low loss header. For connection of the CHP unit return downstream of the low loss header. Components: ■...

  • Page 31: Dual Sensor Well For Combination Of Vitodens 200-W With Heat Pump

    Installation accessories (cont.) R 1 1/4 R 1 1/4 Dual sensor well for combination of Vitodens 200-W with heat pump Part no. ZK03672 For installation in the heating circuit connection set, for positioning a second flow temperature sensor. For combination with the connection set for heating circuit with high efficiency circulation pump and low loss header.

  • Page 32: Immersion Temperature Sensor (For Low Loss Header)

    Installation accessories (cont.) a Adjustable to appliance width Immersion temperature sensor (for low loss header) Part no. 7179488 Additional sensor for dual sensor well. For dual mode or multi To capture the low loss header temperature. mode heating systems. CO limiter Part no.

  • Page 33: Installation Accessories For Vitodens 200-W, 80 And 99 Kw

    Installation accessories (cont.) 2.2 Installation accessories for Vitodens 200-W, 80 and 99 kW Heating circuit connection set with variable speed high efficiency circulation pump and low loss header Part no. ZK03831 Connections G 1½ (male thread) Components: ■ Boiler drain & fill valve ■...

  • Page 34: Connection Set For Combination Of Vitodens 200-W With Chp Unit

    Installation accessories (cont.) Connection set for combination of Vitodens 200-W with CHP unit Part no. 7237422 For combination with the connection set for heating circuit with high efficiency circulation pump and low loss header. For connection of the CHP unit return downstream of the low loss header. Components: ■...

  • Page 35: Dual Sensor Well For Combination Of Vitodens 200-W With Heat Pump

    Installation accessories (cont.) R 1 1/4 R 1 1/4 Dual sensor well for combination of Vitodens 200-W with heat pump Part no. ZK03672 For installation in the heating circuit connection set, for positioning a second flow temperature sensor. For combination with the connection set for heating circuit with high efficiency circulation pump and low loss header.

  • Page 36: Immersion Temperature Sensor (For Low Loss Header)

    Installation accessories (cont.) a Adjustable to appliance width Immersion temperature sensor (for low loss header) Part no. 7179488 Additional sensor for dual sensor well. For dual mode or multi To capture the low loss header temperature. mode heating systems. CO limiter Part no.

  • Page 37: Installation Accessories For Vitodens 200-W, 120 And 150 Kw

    Installation accessories (cont.) 2.3 Installation accessories for Vitodens 200-W, 120 and 150 kW Heating circuit connection set with variable speed high efficiency circulation pump and low loss header Part no. ZK03664 Connections G 2 (male thread) Components: ■ Boiler drain & fill valve ■...

  • Page 38: Connection Set For Combination Of Vitodens 200-W With Chp Unit

    Installation accessories (cont.) Connection set for combination of Vitodens 200-W with CHP unit Part no. ZK03671 For combination with the connection set for heating circuit with high efficiency circulation pump and low loss header. For connection of the CHP unit return downstream of the low loss header. Components: ■...

  • Page 39: Dual Sensor Well For Combination Of Vitodens 200-W With Heat Pump

    Installation accessories (cont.) R 1 1/2 R 1 1/2 Dual sensor well for combination of Vitodens 200-W with heat pump Part no. ZK03672 For installation in the heating circuit connection set, for positioning a second flow temperature sensor. For combination with the connection set for heating circuit with high efficiency circulation pump and low loss header.

  • Page 40: Immersion Temperature Sensor (For Low Loss Header)

    Installation accessories (cont.) a Adjustable to appliance width Immersion temperature sensor (for low loss header) Part no. 7179488 Additional sensor for dual sensor well. For dual mode or multi To capture the low loss header temperature. mode heating systems. VIESMANN VITODENS 200-W...

  • Page 41: Divicon Heating Circuit Distributor

    ■ Individually wall mounted or with a double or triple manifold. ■ Also available as a kit. For further details see the Viessmann pricelist. For part numbers in conjunction with the different circulation pumps, see the Viessmann pricelist.
  • Page 42 Installation accessories (cont.) Installation example: Divicon with triple manifold Dimension Manifold with heating circuit connection R ¾ and R 1 R 1¼ G 1¼ (shown without thermal insulation) HR Heating return HV Heating flow Determining the required nominal diameter 20 30 40 Mixer control characteristics Heating circuit output in kW...
  • Page 43 Installation accessories (cont.) Result of this example: Divicon with mixer-3 (R ¾) ² = µ · c · ΔT c = 1.163 ´ (1 kg ≈ 1 dm³) µ kg · K 11600 W · kg · K m³ ² ´...
  • Page 44 Installation accessories (cont.) Wilo Yonos PARA Opt. 25/7.5 Grundfos Alpha 2.1 25-60 ■ With power consumption display Operating mode: Constant differential pressure ■ With Autoadapt function (automatic matching to the pipework) ■ Energy efficiency index EEI ≤ 0.21 ■ With night setback function ■...
  • Page 45 Installation accessories (cont.) Manifold Incl. thermal insulation. For wall mounting with separately ordered wall mounting bracket. The connection between boiler and manifold must be made on site. For 2 Divicon Part no. 7460638 for Divicon R ¾ and R 1. Pressure drop G 1½...
  • Page 46 Installation accessories (cont.) For 3 Divicon Part no. 7460643 for Divicon R ¾ and R 1. Pressure drop G 1½ G 1½ G 1½ G 1½ Rp ¾ Flow rate in m³/h A Connection option for expansion vessel HV Heating water flow HR Heating water return A Manifold for Divicon R ¾...

  • Page 47: Installation Accessories For Multi Boiler Systems

    Installation accessories (cont.) 2.5 Installation accessories for multi boiler systems Hydraulic cascades Low loss header DN 80 Adaptor flanges DN 100 to R 2 Can be used up to a total heating output of 594 kW Can be used up to a total heating output of 200 kW in conjunction Part no.

  • Page 48: Flue Gas Cascades (Positive Pressure)

    Installation accessories (cont.) Flue gas cascades (positive pressure) Comprising: ■ Four-boiler system in inline formation ■ Flue gas header – For Vitodens 200-W, 49 and 60 kW: Part no. ZK00681 ■ End piece with condensate drain and trap – For Vitodens 200-W, 69 to 99 kW: Part no. ZK00682 ■...

  • Page 49: Dhw Cylinder 3.1 Product Description

    2 vents (observe FeuVo and TRGI 2008 point 5.5.4 [check local fire regulations]). Safety equipment for the installation room Viessmann heat generators are tested and approved in accordance Example: with all safety regulations and are therefore fail-safe. Unpredictable, Vitodens 200-W, 3 ×...

  • Page 50: Siting Conditions For Room Sealed Operation (Appliance Type C)

    If thorough cleaning is not possible, a balanced flue pipe must be laid through the shaft. Alternatively, a separate balanced flue can be routed. Viessmann accepts no liability for damages caused by a failure to observe these stipulations. Operation of the Vitodens in wet rooms ■...

  • Page 51: Electrical Connection

    Design information (cont.) Electrical connection The power supply must comply with the requirements of your local power supply utility and current VDE [or local] regulations (a: ÖVE regulations). Protect the power cable with a fuse with a max. rating of 16 A. We recommend installing an AC/DC-sensitive RCD (RCD class B) for DC (fault) currents that can occur with energy efficient equip- ment.

  • Page 52: Gas Connection

    Design information (cont.) However, the high safety standard derived from the use of an exter- nal safety solenoid valve has proved to be valuable. We therefore recommend the continued installation of an external safety solenoid valve when installing the Vitodens in rooms below ground level. This requires the internal H1 extension.
  • Page 53 Design information (cont.) An installation template is supplied with the Vitodens 200-W to mark the position of the screws for the wall mounting bracket and the loca- tion of the flue pipe on the wall. Connection sets for the connection of the heating circuits and a DHW cylinder must be ordered separately.

  • Page 54: Wall Mounting Vitodens 200-W, 120 To 150 Kw (Single Boiler)

    Design information (cont.) Dimensions, heating circuit connection set with low loss header and connection accessories A Top edge reference point, Vitodens (also see previous drawing) E DHW cylinder connection set B Connection accessories for connection to the top/bottom F Dimensions with DHW cylinder connection set C Heating circuit connection set with low loss header G Dimensions without DHW cylinder connection set D Connection accessories for connection to the left or right...
  • Page 55 Design information (cont.) Connection sets for the connection of the heating circuits and a DHW cylinder must be ordered separately. Ø 12 A Reference point Vitodens top edge D Recommended dimension for a single boiler system B Area for power cables. E Wall mounting bracket Allow cables to protrude approx.

  • Page 56: Installation With Mounting Frame, Vitodens 200-W, 49 To 150 Kw (Single Boiler)

    Design information (cont.) Dimensions, heating circuit connection set with low loss header and connection accessories 150.5 555.6 A Top edge reference point, Vitodens (also see previous drawing) E DHW cylinder connection set B Connection accessories for connection to the top/bottom F Dimensions with DHW cylinder connection set C Heating circuit connection set with low loss header G Dimensions without DHW cylinder connection set...

  • Page 57: Multi Boiler System

    Design information (cont.) Multi boiler system Hydraulic cascade Optionally with a low loss header or cascade module adaptor for connecting the heating circuits. Must be ordered separately as an Flow and return manifold for multi boiler systems with: accessory. ■ 2 to 6 boilers mounted on a wall Heating circuit connections can be either on the right or left.
  • Page 58 Design information (cont.) Specification Shown without the thermal insulation supplied A Cascade module adaptor H Safety valve B Low loss header K Drain outlet C Air vent valve L Vitotronic 300-K (can be fitted either to the left or the right) D Sensor well for flow temperature sensor The total length of all BUS cables (on site) should not exceed E Boiler drain &...
  • Page 59 Design information (cont.) Residual head of the integral circulation pump at 49 - 60 kW 1000 2000 3000 4000 Flow rate in l/h 1 to 6 Pump stage setting Residual head of the integral circulation pump at 69 - 99 kW 1000 1000 2000...
  • Page 60 Design information (cont.) Wall mounting with low loss header Shown without the thermal insulation supplied A Condensate header (accessories) Number of boilers Rated heating output 49 - 60 69 - 99 49 - 60 69 - 99 49 - 60 69 - 99 49 - 60 69 - 99...
  • Page 61 Design information (cont.) Wall mounting with a cascade module adaptor Shown without the thermal insulation supplied A Condensate header (accessories) Number of boilers Rated heating output 49 - 60 69 - 99 49 - 60 69 - 99 49 - 60 69 - 99 49 - 60 69 - 99...
  • Page 62 Design information (cont.) Installation in series and in block formation with a mounting frame Installation in series with a low loss header Shown without the thermal insulation supplied A Condensate header (accessories) Number of boilers Rated heating output 49 - 60 69 - 99 49 - 60 69 - 99...
  • Page 63 Design information (cont.) Installation in block formation with a low loss header Shown without the thermal insulation supplied A Condensate header (accessories) Number of boilers 2 x 2 2 x 2 2 x 3 2 x 3 49 - 60 kW 69 - 99 kW 49 - 60 kW 69 - 99 kW...
  • Page 64 Design information (cont.) Installation in series with a cascade module adaptor Shown without the thermal insulation supplied A Condensate header (accessories) Number of boilers Rated heating output 49 - 60 69 - 99 49 - 60 69 - 99 49 - 60 69 - 99 49 - 60 69 - 99...
  • Page 65 Design information (cont.) Installation in block formation with a cascade module adaptor Shown without the thermal insulation supplied A Condensate header (accessories) Number of boilers 2 x 2 2 x 2 2 x 3 2 x 3 49 - 60 kW 69 - 99 kW 49 - 60 kW 69 - 99 kW...
  • Page 66 Design information (cont.) Corner installation, multi boiler system Number of boilers 2 x 49 - 99 kW 3 x 49 - 99 kW 4 x 49 - 99 kW 5 x 49 - 99 kW 6 x 49 - 99 kW 1160 1740 2320...
  • Page 67 Design information (cont.) Corner installation, cascade module adaptor in a multi boiler system Number of boilers 2 x 49 - 99 kW 3 x 49 - 99 kW 4 x 49 - 99 kW 5 x 49 - 99 kW 6 x 49 - 99 kW 1160 1740...
  • Page 68 Design information (cont.) Flue gas cascade Series installation 1500 Shown without the thermal insulation supplied A Flue gas cascade D Mounting frame or pre-plumbing jig B Vitodens E Hydraulic cascade C Vitotronic 300-K (can be fitted either to the left or the right) F Ceiling mounting for flue gas cascade Note For details regarding the flue gas cascade, see page 48 and the...
  • Page 69 Design information (cont.) Number of boilers 2x49 kW 2x80 kW 3x49 kW 3x80 kW 4x49 kW 4x80 kW 5x49 kW 5x80 kW 6x49 kW 6x80 kW 2x60 kW 2x99 kW 3x60 kW 3x99 kW 4x60 kW 4x99 kW 5x60 kW 5x99 kW 6x60 kW 6x99 kW...
  • Page 70 Design information (cont.) Block formation 1500 Shown without the thermal insulation supplied A Flue gas cascade D Mounting frame or pre-plumbing jig B Vitodens E Hydraulic cascade C Vitotronic 300-K (can be fitted either to the left or the right) F Ceiling mounting for flue gas cascade VIESMANN VITODENS 200-W...

  • Page 71: Condensate Connection

    Design information (cont.) Note For details regarding the flue gas cascade, see page 48 and the Secure the flue gas cascade with suitable means. technical guide on flue systems. A flue gas back draught safety Suspension from the ceiling is recommended. Observe the max. dis- device is integrated into each boiler.

  • Page 72: Condensate Drain Pipe And Neutralisation

    Design information (cont.) Vitodens 200-W, 120 and 150 kW A Drain hose (Vitodens standard delivery) B Drain outlet kit (accessories) Condensate drain pipe and neutralisation Condensate created during heating operation, in both the condens- Neutralising system ing boiler and the flue pipe, must be drained off in accordance with appropriate regulations.
  • Page 73 Design information (cont.) Neutralising system for single boiler systems from 35 to 60 kW Part no. ZK03653 A Inlet (DN 20) B Drain (DN 20) Neutralising system for single boiler systems from 80 kW and multi boiler systems up to 500 kW Part no.

  • Page 74: Hydraulic Connection

    General information System design Plastic pipework for radiators Viessmann condensing boilers can generally be installed in any fully We also recommend the use of a temperature limiter to restrict the pumped hot water heating system (sealed unvented system). maximum temperature for plastic pipework in heating circuits with Connection sets with an integral circulation pump are available as radiators.

  • Page 75: Expansion Vessels

    DHW cylinder capacity since otherwise damage to gaskets and diaphragms can occur as 49 to 80 kW < 350 l well as noisy heating operation. Viessmann accepts no liability for 99 kW < 400 l any resulting damage or consequential losses.

  • Page 76: Multi Boiler Systems

    For this, order the low loss header that is available as an ■ Provide air vent valves (e.g. quick-action air vent valves) on the accessory. See page 57 and the Viessmann pricelist. primary side (boiler side) and the secondary side (heating circuit Losses resulting from the use of third party low loss headers are side) of the plate heat exchanger.

  • Page 77: Control Units 5.1 Vitotronic 100, Type Hc1B, For Constant Temperature Operation

    – Actuator tests – Test mode Specification ■ Displaying: Sensor type Viessmann NTC 10 kΩ at 25 °C – Boiler water temperature Permissible ambient temperature – DHW temperature – Operation 0 to +130 °C – Operating data –...

  • Page 78: Specification Vitotronic 100, Type Hc1B

    Control units (cont.) Sensor type Viessmann NTC 10 kΩ at 25 °C Permissible ambient temperature – During operation 0 to +90 °C – During storage and transport –20 to +70 °C Specification Vitotronic 100, type HC1B Rated voltage 230 V~ –...
  • Page 79 Shortest switching interval: 10 minutes Specification Power reserve: 14 days Sensor type Viessmann NTC 10 kΩ at 25 °C Permissible ambient temperature Setting the operating programs – Operation 0 to +130 °C The heating system frost protection (see frost protection function) –...

  • Page 80: Specification Vitotronic 200, Type Ho1B

    IP 43 to EN 60529; ensure through de- (copper) sign/installation ■ Never route this lead immediately next to 230/400 V cables. Sensor type Viessmann NTC 10 kΩ, at 25 °C Permissible ambient tem- perature during operation, storage and transport −40 to +70 °C...
  • Page 81 Control units (cont.) ■ Display of: ■ Electronic maximum temperature limit – Flow temperature ■ Demand-dependent heating circuit pump shutdown – DHW temperature ■ Adjustment of a variable heating limit – Information ■ Pump anti-seizing protection – Operating data ■ Central fault message –...

  • Page 82: Specification Vitotronic 300-K

    Sensor type Viessmann NTC 10 kΩ, at 25 °C ■ The Vitotronic automatically regulates the system flow temperature Permissible ambient tem- to 0 to 40 K (delivered condition 8 K) higher than the highest cur-...

  • Page 83: Delivered Condition Vitotronic 300-K

    Control units (cont.) – During operation: 0 to +40 °C, use in the liv- – Central fault message gÖ: 4(2) A 230 V~ ing space or boiler room – Motor, 3-way mixing valve, cylinder (standard ambient condi- loading system tions) –...

  • Page 84: Vitotrol 100, Type Uta

    Control units (cont.) Vitotronic 300-K Type HC1B HO1B MW2B Accessories Mixer motor Extension for heating circuits 2 and 3 with mixer Mixer extension kit Immersion thermostat Contact thermostat Solar control module, type SM1 Internal H1 extension Internal H2 extension AM1 extension EA1 extension LON cable LON coupling...

  • Page 85: External H4 Extension

    Control units (cont.) IP rating IP 20 to EN 60529 Ensure through design/installation Function type RS type 1B to EN 60730-1 Permissible ambient temperature – Operation 0 to +40 °C – Storage and transport –25 to +65 °C Setting range –...

  • Page 86: Notes Regarding Room Temperature Hook-Up (Rs Function) For Remote Control Units

    Control units (cont.) Function type RS type 1B to EN 60730-1 Permissible ambient temperature – Operation 0 to +40 °C – Storage and transport –25 to +65 °C Setting range – Comfort temperature 10 to 40 °C – Setback temperature 10 to 40 °C –...

  • Page 87: Vitotrol 300-A

    Control units (cont.) Specification Power supply Via KM BUS Power consumption 0.2 W Protection class IP rating IP 30 to EN 60529; ensure through de- sign/installation Permissible ambient temperature – Operation 0 to +40 °C – Storage and transport −20 to +65 °C Setting range of the set room temperature for standard mode...

  • Page 88: Vitotrol 200-Rf

    Control units (cont.) Vitotrol 200-RF Part no. Z011219 Wireless subscriber ■ Displays: – Room temperature – Outside temperature – Operating condition – Wireless signal reception quality ■ Settings: – Set room temperature for standard mode (normal room tempera- ture) Note The set room temperature for reduced mode (reduced room temperature) is set at the control unit.

  • Page 89: Wireless Repeater

    Sensor type Viessmann NTC 10 kΩ at 25 °C Installation in the main living room on an internal wall opposite radia- Permissible ambient temperature tors. Never install inside shelving units, in recesses, or immediately –...

  • Page 90: Immersion Temperature Sensor

    Mixer PCB with mixer motor KM BUS subscriber Components: ■ Mixer PCB with mixer motor for Viessmann mixer DN 20 to DN 50 and R ½ to R 1¼ ■ Flow temperature sensor (contact temperature sensor) ■ Plug for connecting the heating circuit pump ■...

  • Page 91: Mixer Extension Kit For Separate Mixer Motor

    2.0 m, fully wired IP rating IP 32D to EN 60529; ensure through design/installation Sensor type Viessmann NTC 10 kΩ at 25 °C Permissible ambient temperature – Operation 0 to +120 °C – Storage and transport –20 to +70 °C Mixer extension kit for separate mixer motor Part no.

  • Page 92: Mixer Extension Kit In Conjunction With Divicon Heating Circuit Distributor

    0.9 m, fully wired IP rating IP 32 to EN 60529; ensure through de- sign/installation Sensor type Viessmann NTC 10 kΩ at 25 °C Permissible ambient temperature – Operation 0 to +120 °C – Storage and transport −20 to +70 °C...

  • Page 93: Immersion Thermostat

    IP 32D to EN 60529 sure through design/ Ensure through design/instal- installation lation Permissible ambient temperature Sensor type Viessmann NTC 10 kΩ at – Operation 0 to +40 °C 25 °C – Storage and transport –20 to +65 °C Permissible ambient temperature...

  • Page 94: Solar Control Module, Type Sm1

    −20 to +70 °C larger) ■ Collector safety shutdown For systems with Viessmann DHW cylinders, the cylinder tempera- ■ Electronic temperature limitation in the DHW cylinder ture sensor is installed in the threaded elbow in the heating water ■ Switching of an additional pump or valve via relay return (standard delivery or accessory for the relevant DHW cylin- der).

  • Page 95: Internal H1 Extension

    Control units (cont.) Internal H1 extension Part no. 7498513 PCB for installation in the control unit. Using the extension enables the following functions to be achieved: Function Rated breaking capacity of the relay output – Connection of an external safety solenoid valve (LPG) 1(0.5) A 250 V~ And one of the following functions: 2(1) A 250 V~...

  • Page 96: Ea1 Extension

    Control units (cont.) EA1 extension Part no. 7452091 Function extension inside enclosure for wall mounting. Using the inputs and outputs allows up to 5 functions to be achieved: 1 switching output (floating changeover contact) ■ Central fault message output (only with Vitotronic 100, type HC1B and Vitotronic 200, type HO1B) ■...
  • Page 97 – 8 analogue inputs: – 0 − 10 V Specification – 4 − 20 mA Rated voltage 24 V – Viessmann temperature sensors NTC 10 kΩ, Rated current 710 mA NTC 20 kΩ, Ni500 or Pt500 Rated output 17 W –...

  • Page 98: Lon Connecting Cable For Data Exchange Between Control Units

    Control units (cont.) Specification, power supply unit (standard delivery): Rated voltage 100 to 240 V~ Rated frequency 50/60 Hz Rated current 0.8 to 0.4 A Output voltage 24 V Max. output current Protection class II to EN 61140 IP rating IP 20 to EN 60529;...

  • Page 99: Vitoconnect 100, Type Opto1

    Appendix 6.1 Regulations / Directives Regulations and directives We, Viessmann Werke GmbH & Co. KG, declare that the Vitodens Observe all engineering standards and statutory requirements appli- gas condensing boilers have been tested and approved in accord- cable to the installation and operation of this system in your country.
  • Page 100 Appendix (cont.) The installation of a condensing boiler may need to be notified to Condensing boilers must only be operated with specially designed, and approved by your local gas supply utility. tested and approved flue pipes. In some regions, permits may be required for the flue system and Only an authorised contractor may convert this appliance for use in condensate drain into the public sewage system.

  • Page 101: Keyword Index

    Keyword index Accessories Immersion thermostat..............93 – For control units................83 Initial heat-up..................74 AM1 extension................. 95 Installation room................49 Anti-corrosion agents............... 74 Interlock circuit................. 49 Antifreeze..................74 Interlock switch.................51 Internal H1 extension............... 95 Internal H2 extension............... 95 Boiler water temperature sensor..........77, 79 KM BUS distributor................90 Cables....................
  • Page 102 Keyword index Vitotrol – 200-A.................... 86 – 200-RF..................88 – 300-A.................... 87 Vitotrol 100 – UTA....................84 – UTDB.................... 84 – UTDB-RF..................85 Water quality..................74 Weather-compensated control – Operating programs..............79 Weather-compensated control unit – Frost protection function............79, 82 –...
  • Page 103 VIESMANN VITODENS 200-W...
  • Page 104 Subject to technical modifications. Viessmann Werke GmbH & Co. KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
