Quick Start-up Guide
for use by a licensed professional heating contractor
for typical installations

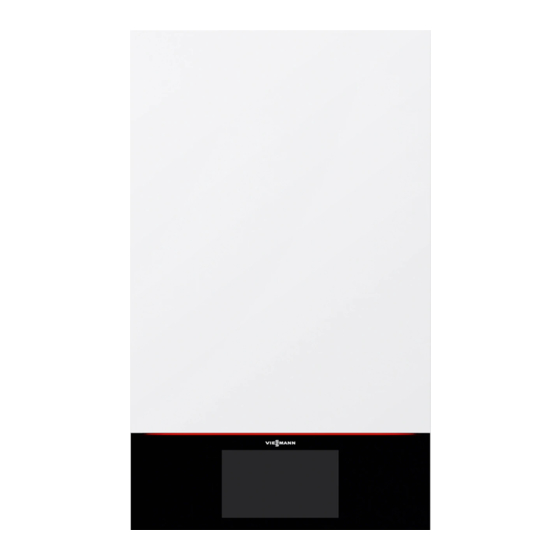

Vitodens 200-W, B2HE
Models 85 to 199
Wall-Mounted, gas-fired condensing boilers
On demand domestic hot water with Combi boiler
Heating input: 8.5 to 199 MBH (2.5 to 58.3 kW)
Before you install the boiler;
This boiler is configured for Natural Gas from the factory. If conversion to
Propane Gas is required, the conversion kit supplied with the boiler must be used.
This guide is designed to provide a quick overview to the licensed professional
heating contractor for installing the Vitodens 200-W B2HE boiler. It is NOT
a substitute for the technical support literature supplied with the boiler and
accessories.
The technical support literature for each product contains the necessary
safety and national/local code requirements which, if not followed exactly,
may lead to property damages, personal injuries and/or loss of life. Viessmann
Manufacturing assumes no responsibility for damage(s) of any kind caused by
inappropriate use of this manual and/or failure to read the technical literature
provided which may also render the warranty null and void.
Unpacking and Included with Boiler
Unpacking and Included with Boiler
1
Boiler Installation Dimensions and Mounting Details
Boiler Installation Dimensions and Mounting Details
2
IMPORTANT
Ensure that the boiler bracket and boiler are securely fastened and level.
Refer to the "Dimensions and Installation" sections of the B2HE
Installation and Service Instructions for more detail.
6167 990 - 03
09/2021
H H
Codes
The installation of this unit shall be in accordance with local codes or, in the
absence of local codes, use CAN/CSA-B149.1 or .2 Installation Codes for
Gas Burning Appliances for Canada. For U.S. installations use the National
Fuel Gas Code ANSI Z223.1. Always use latest editions of codes.
In Canada all electrical wiring is to be done in accordance with the latest
edition of CSA C22.1 Part 1 and/or local codes. In the U.S. use the National
Electrical Code ANSI/NFPA 70. The heating contractor must also comply with
both the Standard for Controls and Safety Devices for Automatically Fired
Boilers, ANSI/ASME CSD-1, and the Installation Code for Hydronic Heating
Systems, CSA B214-01, where required by the authority having jurisdiction.
Unpack and set aside
(e.g. the front cover panel,
the documentation package,
installation fittings, etc.)
Advertisement
Related Manuals for Viessmann Vitodens 200-W B2HE 85
Summary of Contents for Viessmann Vitodens 200-W B2HE 85
- Page 1 Standard for Controls and Safety Devices for Automatically Fired may lead to property damages, personal injuries and/or loss of life. Viessmann Boilers, ANSI/ASME CSD-1, and the Installation Code for Hydronic Heating Manufacturing assumes no responsibility for damage(s) of any kind caused by Systems, CSA B214-01, where required by the authority having jurisdiction.
-
Page 2: Filling The Siphon With Water
H Boiler pressure relief valve (PRV and pressure gauge) I Low loss header (accessory) J Boiler fill K Indirect DHW tank Low loss header L Expansion tank Closely spaced (Viessmann tees (4x the pipe optional diameter)(field accessory) supplied) Boiler Boiler Condensate Connection... - Page 3 Installation Vitodens 200-W, B2HE Quick Start-up Guide Preparing for Vent Connection Preparing for Vent Connection The Vitodens 200-W boiler comes with a preinstalled vent pipe adaptor. Installing the venting system, single-pipe, two-pipe or coaxial, through the side wall or roof, taking the shortest possible route and at a horizontal pitch of 2 in./3.3 ft.
- Page 4 Installation Vitodens 200-W, B2HE Quick Start-up Guide Typical Single Pipe and Coaxial Pipe Venting Layouts Typical Single Pipe and Coaxial Pipe Venting Layouts Rigid Pipe Venting Coaxial Pipe Venting Flex Pipe Venting Combustion Combustion air opening air opening Refer to the “Rigid and Flex Pipe Venting Systems” Instructions supplied.
- Page 5 Installation Vitodens 200-W, B2HE Quick Start-up Guide Fixed Setpoint With or Without Room Temperature Thermostat Fixed Setpoint With or Without Room Temperature Thermostat IMPORTANT Connect one of the following fixed setpoint operations, with or without room temperature thermostat. Refer to the “Electrical Connections” section of the B2HE Installation and Service Instructions for more detail.
- Page 6 Installation Vitodens 200-W, B2HE Quick Start-up Guide Turning on the Boiler for the First Time Turning on the Boiler for the First Time Upon initializing the power forthe first time, the boiler will automatically call up the commissioning assistant. Using the Commissioning Assistant Using the Commissioning Assistant This boiler can be commissioned using the Vitoguide Mobile App or the boilers HMI, to proceed using the app select ‘With App’...
- Page 7 Installation Vitodens 200-W, B2HE Quick Start-up Guide Starting the Boiler Using the Commissioning Assistant Starting the Boiler Using the Commissioning Assistant (continued) Floating contact: Function If a contact has been connected to plug 96. selection plug 96 No function External demand, DHW Pushbutton function, DHW recirculation pump runs for 5 min.
- Page 8 Vitodens 200-W, B2HE Quick Start-up Guide Fault Codes Fault Codes Refer to the fault code section of the B2HE Service Instructions for Note: Fault messages dependent on boiler equipment level the complete list of fault codes. Displayed System Cause Measures fault code characteristics F.13...
