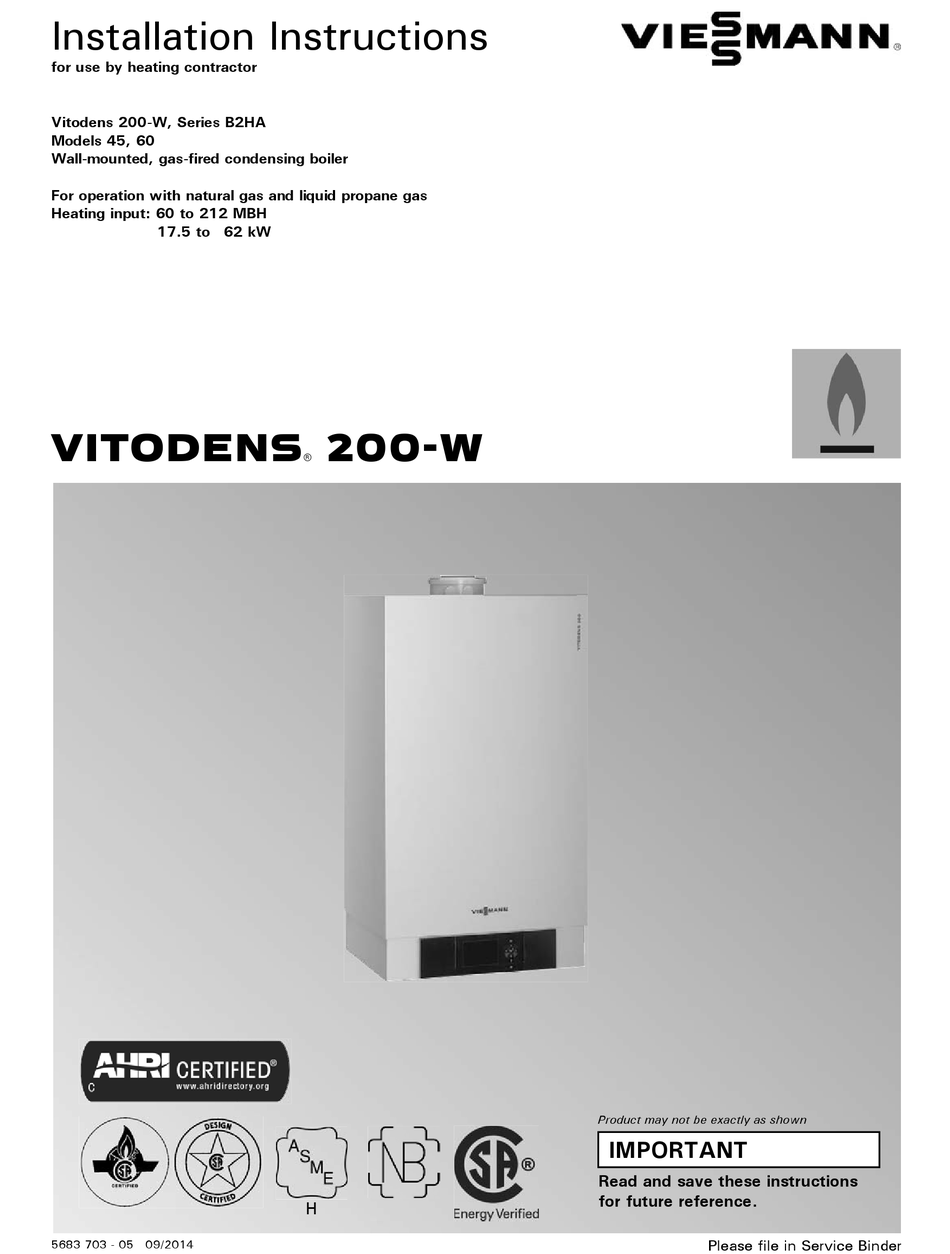

Installation Instructions for use by heating contractor Vitodens 200-W, Series B2HA Models 45, 60 Wall-mounted, gas-fired condensing boiler For operation with natural gas and liquid propane gas Heating input: 60 to 212 MBH 17.5 to 62 kW VITODENS 200-W Product may not be exactly as shown IMPORTANT Read and save these instructions for future reference.
Follow the manufacturing facilities. Viessmann maintenance schedule of the boiler contained Contaminated combustion air will damage the boiler in this manual. and may lead to substantial property damage, severe Operating and Service Documentation personal injury and/or loss of life.
Safety Vitodens 200-W B2HA 45, 60 Installation Safety, Installation and Warranty Requirements Suppliers of fiberglass wool products recommend the Fiberglass wool and ceramic fiber materials following precautions be taken when handling these materials: WARNING - Avoid breathing fiberglass dust and contact with skin and eyes.
Table of Contents Vitodens 200-W B2HA 45, 60 Installation Page Safety Safety, Installation and Warranty Instructions....2 Product documentation..........2 Warranty..............2 Licensed professional heating contractor....2 Contaminated air............2 Advice to owner............2 Carbon monoxide.............2 Fresh air..............2 Equipment venting...........2 About these Installation Instructions......3 General Information Important Regulatory and Installation Requirements..5 Codes...............5 Instructing the system user........5...
Page 5
Table of Contents Vitodens 200-W B2HA 45, 60 Installation Page Boiler Connections (continued) Safety Connections and Pressure Testing.....29 Installing boiler safety devices.........29 Low water cut-off..........30 Performing a boiler pressure test......30 Waterside Flow............30 Waterside flow (primary circuit).......30 Installation Examples..........32 General..............32 Clearances............32 System Layout 1-9...........33 Alternative DHW Connection........42 Boiler in Heating/Cooling..........43...
Proper completion of the Maintenance Record - Service Instructions by the heating contractor is also required. - Operating Instructions and User’s Information Manual - Instructions of other Viessmann products utilized and Working on the equipment installed The installation, adjustment, service, and maintenance...
CSD-1 Field Testing of High Limit Switches for Vitodens boilers – where required by law. VIESSMANN IS NOT RESPONSIBLE FOR ANY DAMAGES THAT THE FOLLOWING TEST PROCEDURE MAY RESULT IN BY OVERHEATING THE SYSTEM.
General Information Vitodens 200-W B2HA 45, 60 Installation Applicability CAUTION The boiler serial number must be provided when ordering replacement parts. Some replacement parts are not reverse compatible with previous versions of the Vitodens 200-W B2HA boiler. IMPORTANT When ordering replacement parts, provide either the 16-digit boiler serial number (on the bar code label) or the 12-digit ASME/NB serial number, located as shown underneath boiler front enclosure panel.
General Information Vitodens 200-W B2HA 45, 60 Installation Mechanical Room During the early stages of designing a new home, we recommend that proper consideration be given to constructing a separate mechanical room dedicated to the gas- or oil-fired heating equipment and domestic hot water storage tank(s). The boiler must be located in a heated indoor area, near a floor drain, and as close as possible to a wall.
(spraying, splashing, etc.) during boiler operation and service. Minimum Clearances Recommended minimum service clearances For typical Vitodens installations, Viessmann recommends installing the boiler with the clearances shown in the illustration on the left. Note: The 12 in. (305 mm) side clearance specified is...
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Preparing the Connections Use an approved pipe sealant or teflon tape when connecting the following installation fittings. This section constitutes an overview only! Refer to subsequent sections for detailed information on individual piping connections.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Preparing the Connections (continued) This section constitutes an overview only! Refer to Note: When preparing gas, water and electrical subsequent sections for detailed information on individual connections in the field, see section entitled piping connections.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Wall Mounting Fitting the wall mounting bracket Following are the installation instructions for the mounting bracket on each material. See the instructions applicable to your installation requirements. Installing the wall mounting bracket The Vitodens 200-W B2HA can be wall-mounted on a concrete wall.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Wall Mounting (continued) Boiler mounting bracket Install the boiler mounting bracket to the wall studs. Ensure the mounting bracket is level. To mount on wood or metal studs a cross bar or frame may be required as reinforcement.
Page 15
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Wall Mounting (continued) 1. Remove the external accessories connection box cover. 2. Loosen the screws at the bottom of the boiler (do not remove completely). 3. Remove the front encloser panel (lift up and pull away from the boiler).
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Frame Mounting The boiler stand is used for free-standing installation of a single boiler within the mechanical room. When using the boiler stand, ensure that the stand is securely fastened to the floor (recommended concrete expansion anchors are Hilti model KB-TZ e x 4 or equivalent.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Models B2HA 45, 60 Frame Mounting 1. Remove the external accessories connection box cover. 2. Loosen the screws at the bottom of the boiler (do not remove completely). 3. Remove the front encloser panel (lift up and pull away from the boiler).
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections Connecting power The Vitodens 200-W boiler has a external accessories connection box installed, which requires a 120VAC/12A power supply. Refer to the wiring diagram (see page 44). Boiler venting The Vitodens 200-W B2HA boiler comes with a pre-installed vent pipe adaptor.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections (continued) Gas connection and piping 1. Refer to current CAN/CSA B149.1 and .2 or National Fuel Gas Code ANSI Z223.1/NFPA 54, as well as local codes for gas piping requirements and sizing. Pipe size to the boiler must be determined based on: - pipe length - number of fittings...
IMPORTANT WARNING Damage resulting from pressure exceeding those values stated is not covered by Viessmann warranty. Exposing boiler gas pressure regulator and gas valve to extreme pressures renders warranty null and void. 3. Connect field supplied nipples and tees as shown for DHW supply and return.
Viessmann DHW storage tank when mounting and securing DHW tank temperature sensor %. WARNING If a DHW storage tank other than a Viessmann Vitocell 100 or 300 tank is used, the installer must verify proper operation of the Viessmann DHW tank temperature sensor with original manufacturer of the tank.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections (continued) Accessing the control unit connections 1. Remove both screws from the external accessory connection box front plate and set aside. 2. Loosen both retaining screws as shown (do not remove). 3.
Page 23
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections (continued) 5. Tilt the bottom of the external accessory connection box cover forward. 6. Pull the cover up to clear the locating pins and out to remove, then set aside. 7. Slide both sides of the programming unit cover closed. 8.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections (continued) 12. Route all connecting cables to the appropriate areas and secure the cables to the control base using existing strain reliefs as shown. CAUTION When running and securing connecting cables on site, ensure that the maximum permissible temperatures of the cables are not exceeded.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections (continued) Connecting DHW sensor 1. Attach the DHW sensor to the quick connect plugs provided from the boiler control board (see page 24). Install DHW tank temperature sensor as described in the Vitocell Installation Instructions supplied with the DHW storage tank.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections (continued) Control base Note: See wiring diagram on page 44 for connection to the external accessory connection box. OUTDOOR TEMPERATURE TEMPERATURE SENSOR SENSOR...
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections (continued) External accessory connection box Note: See wiring diagram on page 44 for connection to the control base. 120/1/60 12 AMP POWER SUPPLY WITH DISCONNECT AND ACCESSORIES PROTECTION (ie VITOTROL REMOTE OR MIXING VALVE) PUMP 0-10V INPUT...
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Connections (continued) Condensate connection The Vitodens 200-W B2HA boiler comes with a built- in condensate trap. An external trap is not required when connecting the field drain to flexible discharge tubing. Discharge tubing (field supplied) must be of 1 in. diameter.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Safety Connections and Pressure Testing Installing boiler safety devices 1. Remove loosely pre-assembled combination pressure relief valve and drain valve assembly. 2. Apply sufficient amount of pipe sealant to both ends of all pipe fittings B,D,F and H and install onto tees A, and E.
If system flow rate exceeds boiler maximum flow rate (as stated above), falls below the minimum flow rate or if system flow rate is unknown, Viessmann strongly recommends the installation of a low-loss header. Once the low-loss header is connected, the built-in low- loss header logic of the Vitodens 200-W boiler ensures the required t across the system through the sensory...
Specific system layouts may be further discussed with the local If a DHW storage tank other than a Viessmann Vitocell Viessmann sales representative office. 100 or 300 tank is used, the installer must verify proper operation of the Viessmann DHW tank temperature sensor with the original manufacturer of the tank.
28/20 The low-loss header is available as accessory part. Low-loss header Pressure relief valve IMPORTANT Viessmann temperature sensor for low-loss header % Please note location of expansion tank. Heating circuit pump 28/20 DHW circulating pump F must pump into the Vitodens 200-W B2HA boiler (as illustrated).
An undersized DHW circulating pump must pump I into the Vitodens pump may cause short-cycling and/or improper operation 200-W B2HA boiler (as illustrated). of the boiler. Viessmann STRONGLY recommends using a low-loss header and a boiler pump in this system layout.
DHW circulating pump sA mixing valve. Heating circuit pump Low-loss header IMPORTANT Viessmann temperature sensor for low-loss header % Heating circuit pump 28/20 DHW circulating pump O must pump into the Vitodens 200-W B2HA boiler (as illustrated). Function based on coding of address 33...
The 3-way mixing valve, built-in to achieve the low- Low-loss header temperature level of the under floor heating circuit, is Viessmann temperature sensor for low-loss header % controlled by an accessory kit for a heating circuit with Pressure relief valve a mixing valve.
- low-loss header - multiple heating circuits with mixing valves - one heating circuit without mixing valve When designing a system as illustrated above, please contact your local Viessmann Sales Representative for assistance. *1 Contact your local Sales Representative for details. Legend...
Proper installation and functionality in the field is the responsibility of the heating contractor. WARNING If a DHW storage tank other than a Viessmann Vitocell 100 or 300 tank is used, the installer must verify proper operation of the Viessmann DHW tank temperature sensor with the original manufacturer of the tank.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Alternative DHW Connection The following piping diagram reflects an alternative connection for the DHW tank only and applies to system layouts 2, 5, 6 and 8. The boiler control pump logic function must be programmed in the Service Instructions. *Note: When using a low loss header in the system, the DHW connections can be made downstream of the low loss header.
Close valve “v1” and open valve “v2”. Heating season starts: Close valve “v2” and open valve “v1”. IMPORTANT Viessmann strongly suggests that the valves illustrated be labelled “v1” and “v2”. IMPORTANT In the illustration, the circulating pump must be operated from a separate on/off switch, not from the pump aquastat on the boiler control.
Boiler Connections Vitodens 200-W B2HA 45, 60 Installation Boiler with Low Water Cut-off Boiler with low water cut-off (remote-mounted, Automatic field supplied) Automatic air vent air vent A low water cut-off may be required by local codes. If boiler is installed above radiation level, a low water cut-off device of approved type (field supplied) must be installed in all instances at the highest point of the piping system.
Control Connections Vitodens 200-W B2HA 45, 60 Installation Electrical Connections Power supply connection of accessories Cabling required for: The power supply connection of accessories can be made H outdoor temperature sensor directly at the control. The connection is activated and H Vitotronic 200-H, HK1B mixing valve control deactivated with the system on/off switch.
Control Connections Vitodens 200-W B2HA 45, 60 Installation Overview of Electrical Connections, Models B2HA 45 and 60 If any of the original wires as supplied with the appliance must be replaced, it must be replaced with the exact equivalent. Only one function/accessory may CAUTION be assigned to each connection.
Page 47
Control Connections Vitodens 200-W B2HA 45, 60 Installation Electrical Connections (continued) Legend Outdoor Temperature Sensor Flow Temperature Sensor/Low Loss Header Boiler Temperature Sensor/High Limit Sensor Boiler Temperature Sensor/High Limit Sensor DHW Temperature Sensor Ionization Electrode Flue Gas temperature Sensor Boiler Pump DHW Pump [21] Pump Output Connection...
Control Connections Vitodens 200-W B2HA 45, 60 Installation Accessing the X3 Plug 1. Remove the control unit cover (see page 15). 2. Remove the X3 plug from the control board. Install the required sensors as per installation instructions. 3. Reinstall the control cover. Connecting the Low-loss Header Sensor 1.
Control Connections Vitodens 200-W B2HA 45, 60 Installation Connecting the Outdoor Temperature Sensor 1. Remove cover of outdoor temperature sensor. 2. Mount wall-mount base (cable entry must point downward). IMPORTANT The outdoor temperature sensor should be mounted 6.6 to 8.2 ft. (2 to 2.5 m) above ground level on the north or northwest wall of the building.
Control Connections Vitodens 200-W B2HA 45, 60 Installation External 0-10 Volt Signal Connection 1. Connect the external 0-10V signal to plug 0-10V located in the extension module EA1. 2. Ensure correct polarity. 3. See chart for maximum possible boiler water Extension Module EA1 temperature and required signal.
Control Connections Vitodens 200-W B2HA 45, 60 Installation LON Module Installing the LON module to the boiler control board 1. Remove the control cover (see page 15). 2. Insert the LON module into the boiler control board. 3. Connect the LON connector cable to the LON module. Connecting the LON module cable See the Vitotronic 200-H HK1B Installation Instructions.
Control Connections Vitodens 200-W B2HA 45, 60 Installation Accessory Kit Boiler Accessory kit connections for heating circuit with Control mixing valve The mixing valve controller kit can only be used with wall-mounted gas-fired hot water heating boilers and a weather-responsive control; it can be used as an alternative for a Vitotronic control.
Control Connections Vitodens 200-W B2HA 45, 60 Installation Closing the External Accessory Connection Box 4. Tilt the top of the external accessory connection box cover forward. 5. Drop down over the locating pins and set the cover in place. 6. Swing the external accessory connection box up. 7.
Page 54
Control Connections Vitodens 200-W B2HA 45, 60 Installation Closing the External Accessory Connection Box (continued) 8. Tighten the external accessory connection box retaining screw. 9. Install the external accessory connection box cover screws.
IMPORTANT Read and follow, where applicable, the safety instructions of all labels and stickers attached to boiler surfaces. Do not remove any of these instructions. Contact Viessmann if any replacement labels are required.
Additional Information Vitodens 200-W B2HA 45, 60 Installation Technical Data Boiler Model No. 200-W B2HA Natural Gas / Liquid Propane Gas CSA input 60-160 60-212 17.5-47 17.5-62 CSA output/DOE *1 55-146 55-194 heating capacity 16-43 16-57 Net AHRI rating *2 49.5 Heat exchanger surface area 15.76...
Page 57
Side wall co-axial vent installation must include Viessmann protective screen! For details refer to the Installation Instructions for the Vitodens 200-W, B2HA Venting System. For information regarding other Viessmann System Technology componentry, please reference documentation of respective product. Note: For high altitude installation at 10,000 ft. the input for model B2HA 19 to 80 will have an altitude de-ration of 21%.
Additional Information Vitodens 200-W B2HA 45, 60 Installation Installation Fittings Parts 0301 Nipple ¾” x 1b” 0302 Sediment faucet ¾” 0303 Tee, ¾” 0304 Nipple ¾” x 3b” 0305 Reducing tee 1b” x 1b” x ¾” 0306 Gas ball valve 1” 0312 Pressure relief valve, 30 psig Other Parts (not illustrated) 0309 Accessory pack (metal stud mount kit)
Additional Information Vitodens 200-W B2HA 45, 60 Installation Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE OPERATING W A R N I N G: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.
