IMPORTANT INFORMATION KEEP FOR OPERATOR
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
OPERATOR MANUAL
Part Number 121051 - Rev. B

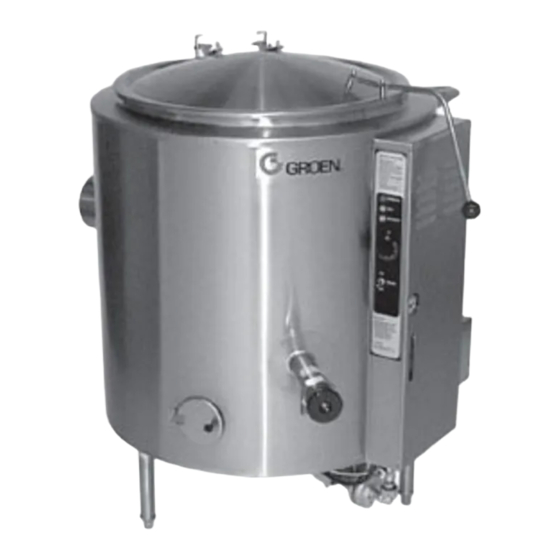

Model: AH/1
Steam Jacketed Kettle
[with Standard Electronic Ignition]
Self-contained
Stainless Steel
Gas Heated
Floor Mounted
Stationary
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND
AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT USER SMELLS GAS. THIS
INFORMATION SHALL BE OBTAINED BY CONSULTING YOUR LOCAL GAS
SUPPLIER. AS A MINIMUM, TURN OFF THE GAS AND CALL YOUR GAS COMPANY
AND YOUR AUTHORIZED SERVICE AGENT. EVACUATE ALL PERSONNEL FROM
THE AREA.
IMPROPER
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor
KEEP FOR OPERATOR I I I I MPORTANT INFORMATION
KEEP FOR OPERATOR
KEEP FOR OPERATOR
FOR YOUR SAFETY
POST IN A PROMINENT LOCATION
INSTALLATION,
ADJUSTMENT,
MPORTANT INFORMATION
MPORTANT INFORMATION
MPORTANT INFORMATION
NEW Model AH/1
[Manufactured After May 1999]
WARNING
ALTERATION,
Information contained in this document is
known to be current and accurate at the time
of printing/creation. Unified Brands recom-
mends referencing our product line websites,
unifiedbrands.net, for the most updated
product information and specifications.
OM-AH
DOMESTIC
SERVICE
OR
