Summary of Contents for Thermo Scientific ISQ EC

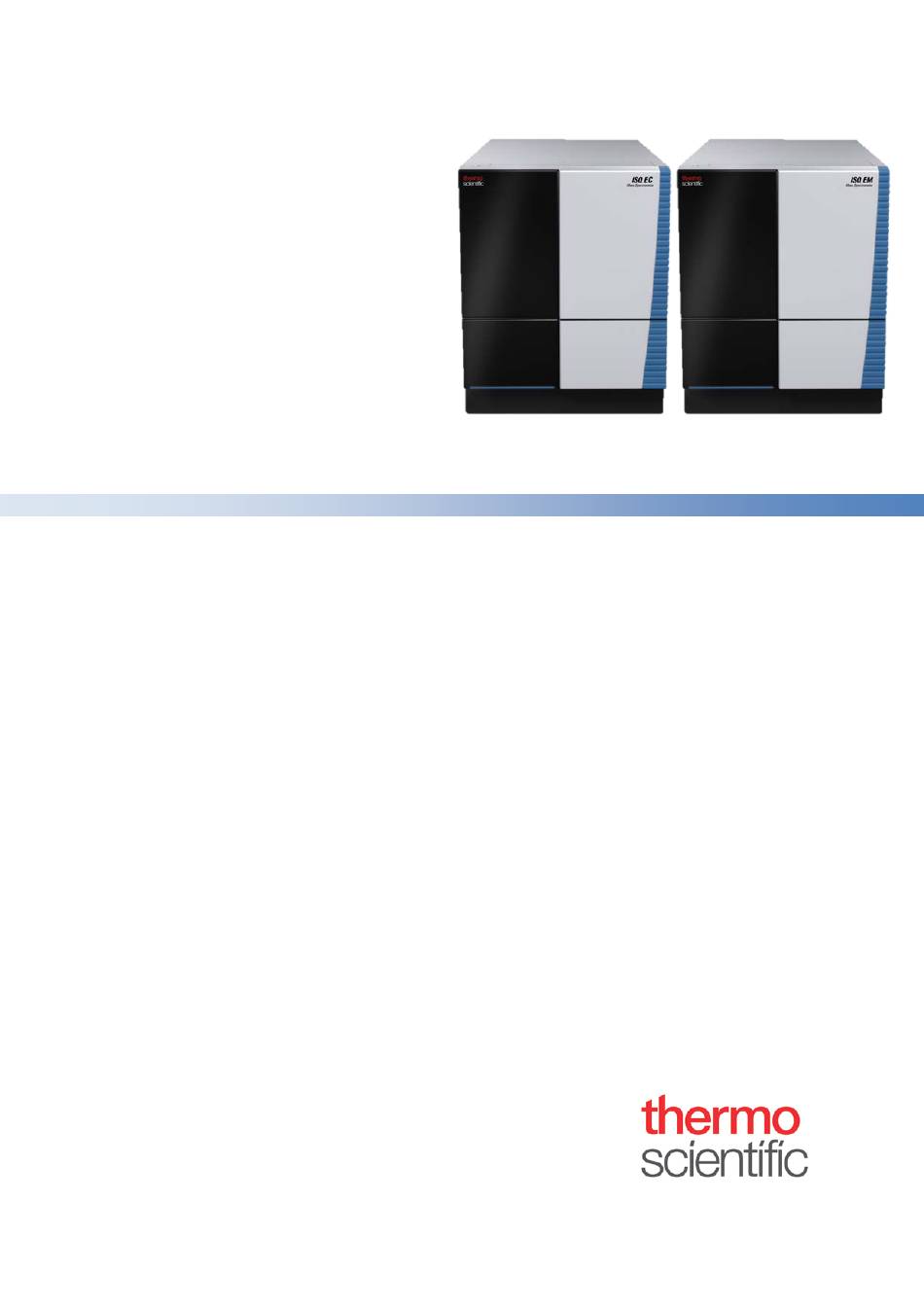

- Page 1 ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide 1R120591-0001 Revision B • October 2018...
- Page 2 Copyright © 2018 Thermo Fisher Scientific Inc. All rights reserved. Preinstallation Requirement Guide Trademarks Acrobat, Adobe, and Adobe Reader are trademarks of Adobe Systems Incorporated. Microsoft and Windows are trademarks of Microsoft Corporation. All other trademarks are property of Thermo Fisher Scientific and its subsidiaries. Thermo Fisher Scientific Inc.
-
Page 3: Contacting Us
Fisher Scientific support organization. For contact information, go to Contact Us on http://www.thermofisher.com. Legal Manufacturer Address Thermo Finnigan LLC, a part of Thermo Fisher Scientific 355 River Oaks Parkway San Jose, California 95134 United States ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 3... - Page 4 ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 4...
-
Page 5: Table Of Contents
General Residual Hazards ................ 21 Solvent and Additive Information ................. 26 Compliance Information ..................27 3 Site Preparation ................28 Entrance Requirements ..................29 Workbench and Space Requirements ..............30 ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 5... - Page 6 Regulatory Compliance ................54 4.1.5 Low Voltage Safety Compliance ............... 54 4.1.6 Notice on Lifting and Handling of Thermo Scientific Instruments ... 54 4.1.7 Notice on the Proper Use of Thermo Scientific Instruments ....54 4.1.8 Notice on the Susceptibility to Electromagnetic Transmissions ....54 4.1.9...
-
Page 7: Using This Manual
1 Using this Manual This chapter provides information about this manual, the conventions used throughout the manual, and the reference documentation that is available in addition to this manual. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 7... -
Page 8: About This Manual
About this Manual This guide contains detailed instructions to prepare your site for installation of a Thermo Scientific™ ISQ™ EC or a Thermo Scientific™ ISQ™ EM mass spectrometer. This manual also contains safety messages, precautionary statements, and special notices that can prevent personal injury, damage to the detector, or loss of data when followed properly. -
Page 9: Conventions
The label text appears in uppercase letters and in bold type. WARNING Indicates that failure to take note of the accompanying information may result in personal injury. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 9... -
Page 10: Typographical Conventions
If not otherwise stated, the expressions left and right in this manual always refer to the viewpoint of a person that is facing the detector from the front. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 10... - Page 11 These include: ♦ Table of contents entries ♦ Index entries • Cross-references (in blue text), for example, to sections and figures ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 11...
-
Page 12: Reference Documentation
For a concise overview of the most important workflows, refer to the Reference Card. TIP The Chromeleon Help and documents are included in the software shipment. The ISQ EC and ISQ EM do not support Chromeleon software versions before 7.2.6. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide... - Page 13 Safety Data Sheets (SDSs). Third-party documentation includes the user documentation for the optional gas supply, as applicable: ♦ User documentation for the nitrogen generator ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 13...
-
Page 14: Safety
2 Safety This chapter provides general and specific safety information and informs about the intended use of the detector. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 14... -
Page 15: Safety Symbols And Signal Words
Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. WARNING Indicates a hazardous situation that, if not avoided, could result in serious injury. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 15... -
Page 16: Observing This Manual
Indicates a terminal for protective grounding. Indicates that an electrical shock could or might occur. Alerts you to the presence of a hot surface that could or might cause burn injuries. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 16... - Page 17 Indicates that physical injury could or might occur if two or more people do not lift an object. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 17...
-
Page 18: Intended Use
Establishing shelf life limits and following them for all consumables used with the system ♦ Running the system according to the laboratory's verified and validated 'lab developed test' protocol ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 18... -
Page 19: Safety Precautions
The device has been manufactured and tested according to international safety standards. 2.3.2 Qualification of the Personnel Observe the information below on the proper qualification of the personnel installing and/or operating the detector. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 19... -
Page 20: Personal Protective Equipment
(SDS) for the substance you are using. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 20... -
Page 21: Electrical Safety Precautions
Instead, place liquid reservoirs in the solvent rack that is available for the HPLC system. 2.3.5 General Residual Hazards ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 21... - Page 22 Avoid accumulation of harmful substances. Make sure that the installation site is well ventilated. • Dispose of hazardous waste in an environmentally safe manner that is consistent with local regulations. Follow a regulated, approved waste disposal program. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 22...
- Page 23 Maintain a well-ventilated laboratory. Do not vent directly into the laboratory. • Avoid open flames and sparks. Do not operate the detector in the presence of flammable gases or fumes. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 23...
- Page 24 (for example, pure acetonitrile). Discharge of electrostatic energy might lead to sparking, which could constitute a fire hazard. Prevent the generation of static electricity near the chromatography system. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 24...
- Page 25 CAUTION—Instrument Damage Clean tubing cutters with methanol prior to use. Otherwise, tubing may be contaminated with oil and grease from packing material. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 25...
-
Page 26: Solvent And Additive Information
Follow any specific recommendations presented in other sections of this manual. Refer also to the operating manuals for all modules in the LC or IC system. They may provide additional guidelines and information. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 26... -
Page 27: Compliance Information
Thermo Fisher Scientific or one of its authorized representatives. The device has been shipped from the manufacturing site in a safe condition. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 27... -
Page 28: Site Preparation
NOTICE—For the ISC EC and ISQ EM mass spectrometers only These instructions are for the ISQ EC and ISQ EM mass spectrometers only. You will also need to follow the specific preinstallation requirements for the LC or IC which will be connected. -
Page 29: Entrance Requirements
Entrance Requirements Use the following guidelines to ensure the entrance to your site will allow for the delivery of your ISQ EC or ISQ EM system: Ensure the width of your delivery door opening is at least 95 cm (37.5 in.). -
Page 30: Workbench And Space Requirements
Keyboard Table 2: Workbench and space requirements The instrument is designed to sit on a standard 30 in (76.2 cm) deep bench. Be sure the ISQ EC or ISQ EM instrument’s feet fit securely on the workbench. See Figure 1 for the position of the feet on the bottom of the instrument. - Page 31 Figure 1: Location of the feet on the bottom of the ISQ EC or ISQ EM instrument TIP—Thermo Fisher Scientific requires that all six of the instrument's feet be positioned on a bench. Overhang of the front, the back, or both ends of the instrument off the bench front or back is acceptable.
- Page 32 Figure 2: ISQ EC or ISQ EM system, front view Figure 3: ISQ EC or ISQ EM system, back view ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 32...
- Page 33 Ensure that your work area is stable and free of vibration from nearby equipment. The ISQ EC or ISQ EM mass spectrometer is a sensitive instrument. For this reason, the foreline pump must be placed on the floor below or next to the system. It is quiet at only 48 dB (A).
-
Page 34: Lighting Requirements
2. You might need a small, high intensity lamp when you clean the ISQ EC or ISQ EM system or work on the foreline pump. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide... -
Page 35: Power Requirements
This instrument must be on its own circuit. Foreline pump plugs into the ISQ EC or ISQ EM MS. At startup, the foreline pump draws an additional 21.5 A at 120 V and an additional 20 A at 230 V. - Page 36 Keep in mind: ♦ Power must be single-phase. ♦ Wall outlets must have earth-ground hard-wired to the main panel. ♦ Included power cords are 2 m (6 ft) long. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 36...
- Page 37 Contact your local customer service office to discuss power cordset concerns. The ISQ EC or ISQ EM MS come with the required number and type of power cords for your region. Table 4 will help you identify the correct power cord for your region and instrument. If you need to replace your power cord or buy an additional cord, you may use any brand of power cord, as long as it is appropriate for your region.
- Page 38 Thermo Scientific Part Number C19 C13 (for PC, monitors, LC, and (for MS) Australia 250V China 250V Europe- Schuko 250V United Kingdom 250V Denmark 250V Italy 250V Israel 250V ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 38...
- Page 39 Thermo Scientific Part Number Thermo Scientific Part Number C19 C13 (for PC, monitors, LC, and (for MS) India 250V Argentina 250V Table 4: Power Cord Identification by Region ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 39...
-
Page 40: Environmental Requirements
Environmental Requirements The normal operating environment for the ISQ EC and ISQ EM MS must have the following characteristics: ♦ Indoor use only ♦ Altitude up to 2000 m ♦ Relative humidity from 20–80 % (non-condensing) up to 31 °C. The maximum relative humidity decreases linearly to 67% as the temperature climbs to 35 °C. - Page 41 Ensure your static has been discharged before touching internal components of the instrument. ESD can damage sensitive components, resulting in premature failures. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 41...
-
Page 42: Gas Requirements
♦ Make sure that the gas supply is regulated to a stable gas pressure that is within the specified gas pressure range. (95-110 psig or 655- 760 kPa)). ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 42... - Page 43 TIP—For sheath gas settings at or below 65 psig, nitrogen gas supply pressure of 90-100 psig (620-690 kPa) is sufficient. TIP—If operating the ISQ EC or ISQ EM at maximum source gas settings, it is recommended that 100-110 psig (...
- Page 44 A Dewar that can output significantly higher than 100 psig is recommended. A regulator should be used to drop the pressure down to 95-110 psig (655–760 kPa) when connecting to the ISQ EC or ISQ EM mass spectrometers.
-
Page 45: Exhaust Requirements
Two 90° elbows are included to make bends around the edge of the table if desired. This tubing can be cut to any length needed. See Figure 5. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 45... - Page 46 Figure 5: Ion source exhaust tubing ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 46...
-
Page 47: Solvents And Sample Preparation
Solvents and Sample Preparation 3.8.1 Standard Installation Installation of the ISQ EC and ISQ EM requires suitable solvents. At least one of the following solvents must available. Solvents should be new and un-opened for best results during installation. Recommended solvent quality for installation: ♦... -
Page 48: Receiving Requirements
Receiving Requirements When you receive the ISQ EC or ISQ EM system: Inspect the boxes for damage when the instrument arrives. Our instruments are shipped by electronic equipment carriers who specialize in the handling of delicate equipment. Occasionally, however, equipment is inadvertently damaged in transit. -
Page 49: 3.10 What Happens Next
A Thermo Fisher Scientific Representative will contact you to schedule the installation of your system. It is important to confirm that all the requirements in this guide are met BEFORE scheduling an installation. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 49... -
Page 50: Appendix
4 Appendix This chapter provides additional information about compliance. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 50... -
Page 51: Compliance Information
(EFUP) of the item. During this period, the item (when used as intended) will not cause serious damage to human health or environment. For more information, go to http://www.thermofisher.com/us/en/home/technical- resources/rohs-certificates.html ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 51... -
Page 52: Weee Compliance
Thermo Fisher Scientific has contracted with one or more recycling or disposal companies in each European Union (EU) Member State, and these companies should dispose of or recycle this product. For further information, contact Thermo Fisher Scientific. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 52... -
Page 53: Fcc Compliance
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his expense. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 53... -
Page 54: Regulatory Compliance
4.1.8 Notice on the Susceptibility to Electromagnetic Transmissions Your instrument is designed to work in a controlled electromagnetic environment. Do not use radio frequency transmitters, such as mobile ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 54... - Page 55 For manufacturing location, see the label on the instrument. ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 55...
-
Page 56: Manual Release History
4.1.9 Manual Release History Revision Released Covering August 2017 ISQ EC MS October 2018 ISQ EC MS and ISQ EM MS ISQ EC and ISQ EM Mass Spectrometer Preinstallation Requirements Guide Page 56...
