Altronix ReServ1WP Installation Manual page 6

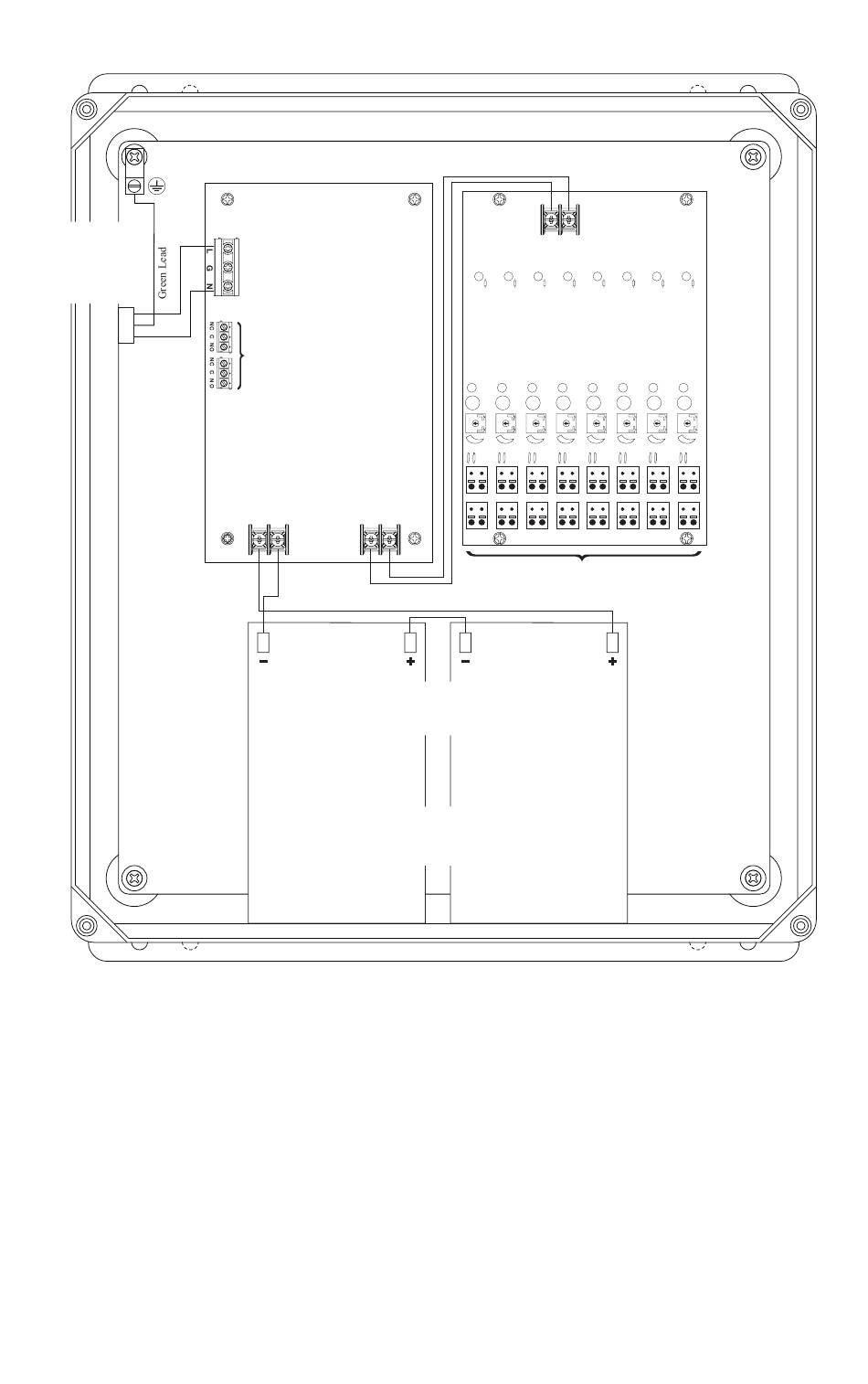

Fig. 2 - ReServ3WP
Ground Lug
Unswitched
115VAC
60Hz, 3.5A
power mains
(non power-limited)
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteires according to the instructions.
- 6 -
power-
limited
+ BAT -- -- DC +
Supervised - Non power-limited
12VDC Rechargeable Battery
(order separately)
Note: Two (2) 12VDC rechargeable batteries
connected in series required.
Non power-limited
--- 24VDC +
1,2 V adjust 3,4 V adjust 5,6 V adjust 7,8 V adjust 9,10 V adjust 11,12 V adjust
P P P P P
N N N N N
1 OUT 2 3 OUT 4 5 OUT 6 7 OUT 8 9 OUT 10 11 OUT 12
12VDC
Power-Limited Outputs
13,14 V adjust 15,16 V adjust
P P P
N N N
13 OUT 14 15 OUT 16
ReServWP
