7. Transmitter DIP Switch Settings
• The temperature swing can be adjusted between 0.5°C and 1.0°C by
selecting the desired DIP switch position found on the rear of the unit.
We suggest using 0.5°C position unless the boiler turns ON and OFF
too rapidly. Press the reset button after changing.
• The PID 'Proportional-Integral-Derivative' can also be selected ON or
OFF using the DIP switches on the rear of the unit. We suggest setting
this to the ON position. As the room temperature approaches the set
temperature, the thermostat will intermittently turn the heating ON
and OFF, to help prevent temperature over-shoot.
Press the reset button after changing.
• The boiler type can be set to either 3CYC (Gas) or 6CYC (Oil),
using the DIP switches on the rear of the unit.
Press the reset button after changing.

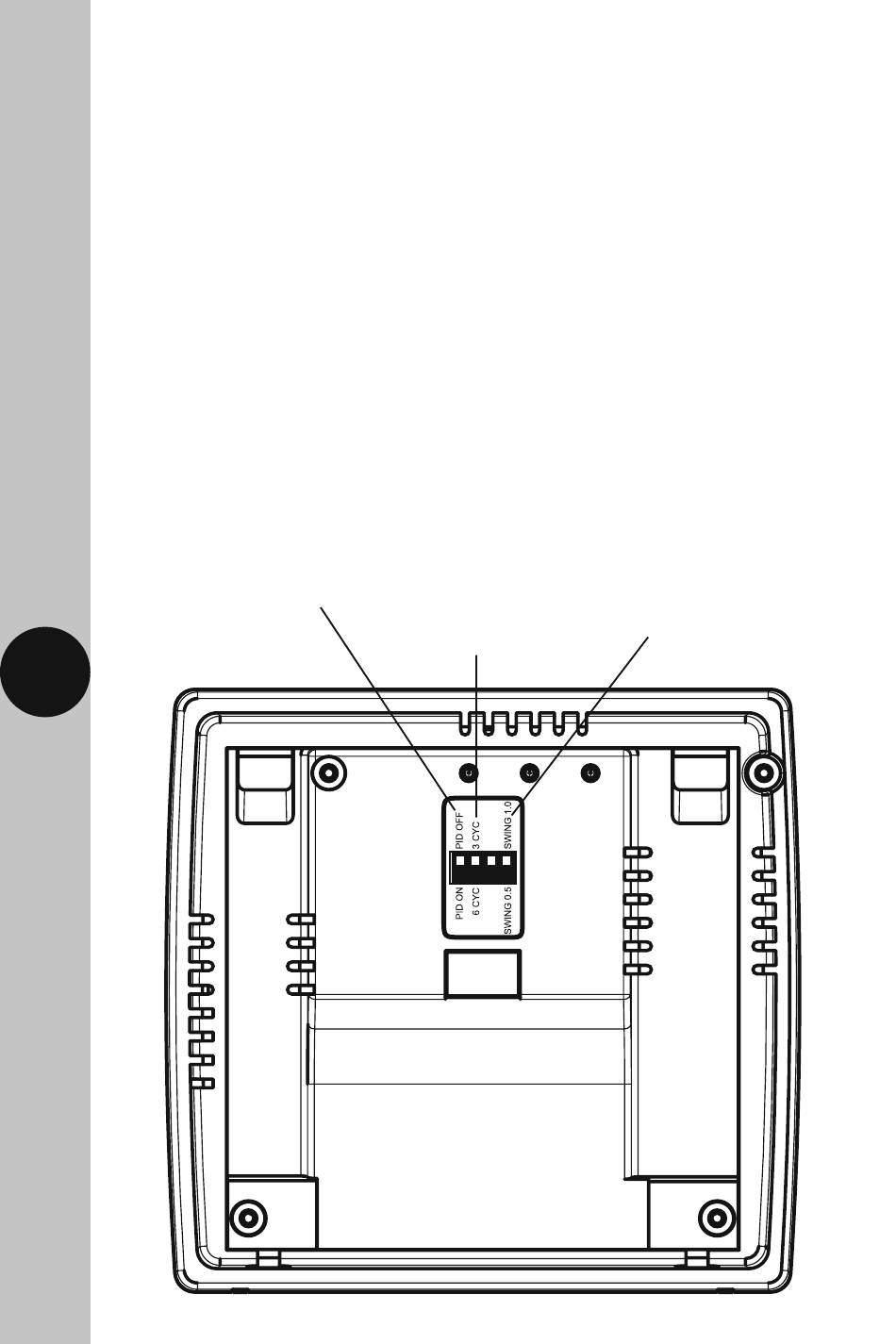

TRT047N Rear of Transmitter
DIP switch for PID setting
7
DIP switch for
boiler type setting
DIP switch for temperature
swing adjustment setting
