5.3 Mark the position of the mounting holes on the wall using the wall plate
as a template. Drill out the mounting holes taking care to avoid any
joists, electrical cables or water/gas pipes that may be hidden beneath
the surface. Insert the rawl plugs into the holes.
5.4 Pass the 230V 50Hz mains supply and load cables through the opening
of the wall plate. Allow suf cient excess cable to wire up the unit, but
not too much to make it dif cult to close the unit to the wall plate.
5.5 Fix the wall plate to the wall using the correct mounting screws for the
rawl plugs installed. The retaining screws which secure the unit to the
wall plate should be at the bottom.
5.6 Terminate the cables into the terminal block ensuring correct polarity
is observed and that all bare conductors are sleeved (See section 6.
Receiver Connection Diagram). Make sure that the curved washer grips
the conductor.
5.7 To reinstall the unit onto the wall plate, rst ensure the wall plate
retaining screws are loosened enough to clear the TRT047N receiver
body, then engage the top of the TRT047N receiver onto the wall plate
retaining tabs, and push rmly downwards and then upwards.
There will be some resistance from the terminals.
4
5.8 Once in place, secure with the retaining screws making sure
not to over tighten.

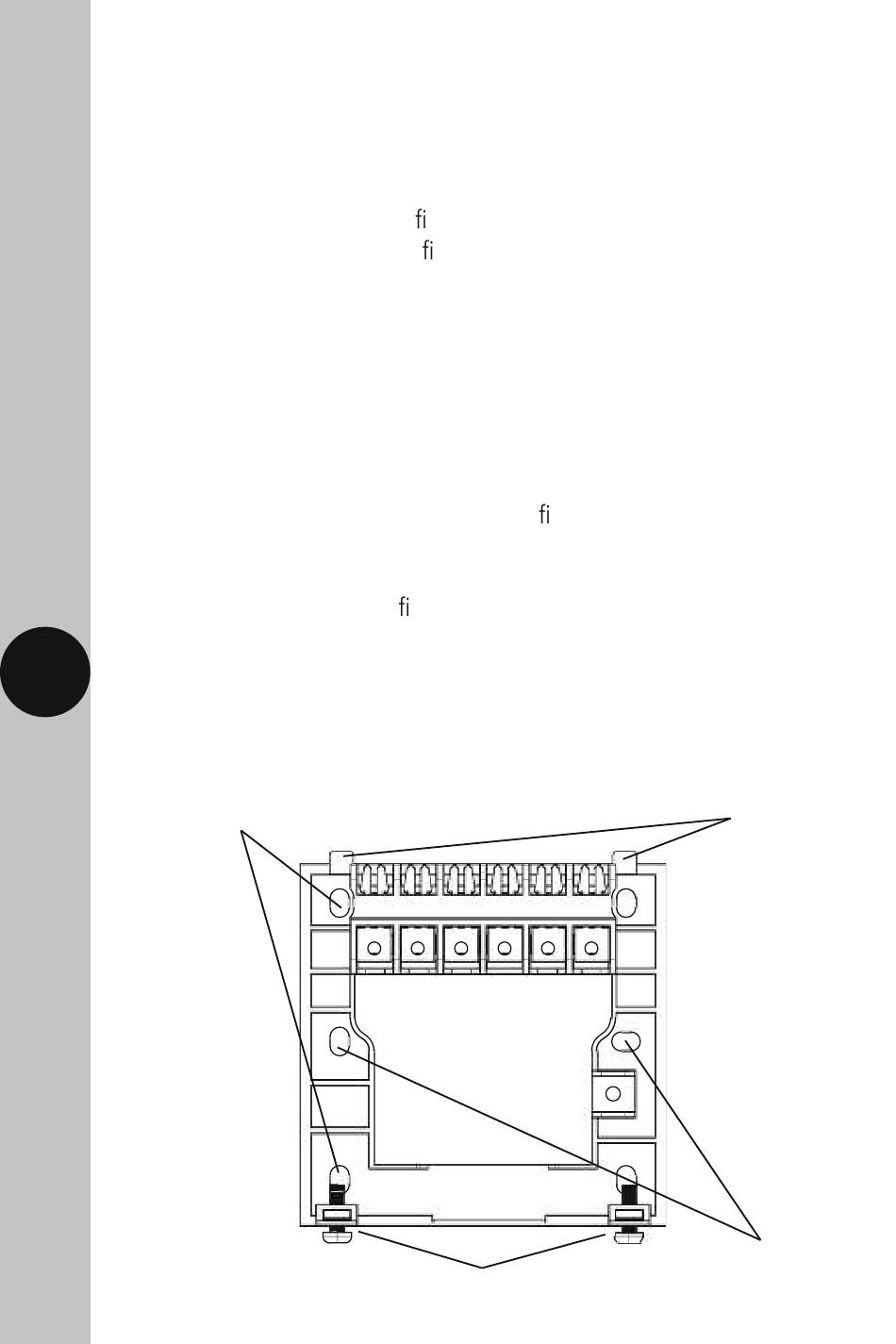

Receiver Wall Plate
Alternate mounting holes
Wall plate retaining screws
Retaining tabs
Mounting
holes
