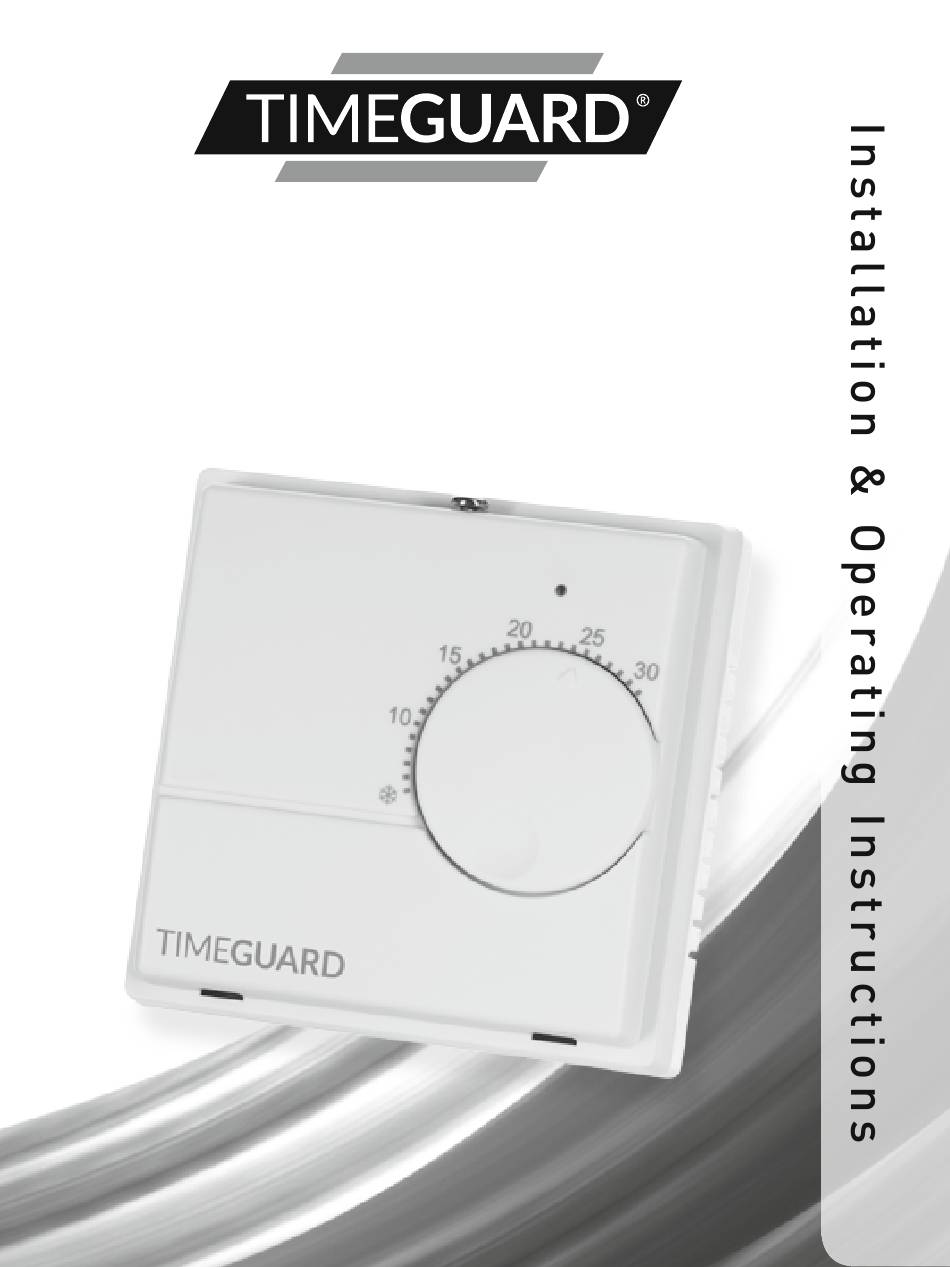

- Page 1 Tamper Proof Room Thermostat Model: TRT032N...
- Page 2 1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the thermostat is switched off and the circuit supply fuses are removed or the circuit breaker turned off.

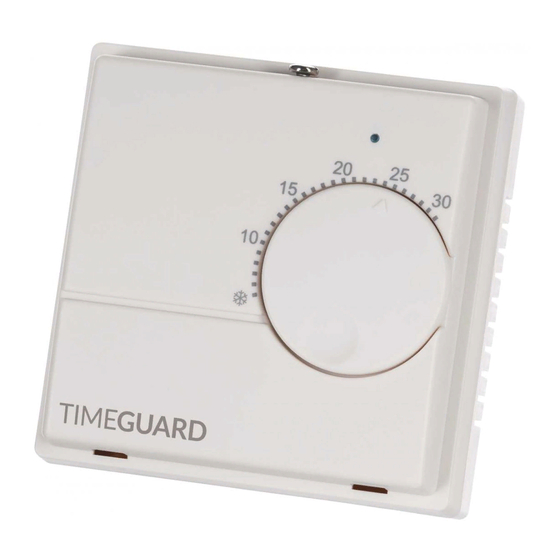

- Page 3 3CYC = Gas, 6CYC = Oil, set by DIP switch • Tamper proof cover with retaining screw • CE Compliant • Dimensions (H x W x D): 86 x 88mm x 38mm TRT032N Front View Set temperature adjustment scale Easy set dial adjuster Tamper proof cover...
- Page 4 4. Siting • The TRT032N must be sited where it will not be influenced by heat sources, for example above a radiator or a television or a refrigerator/freezer or in direct sunlight or subjected to draughts. • The product requires air circulation, so do not position above or below shelving or other wall mounted obstacles.
- Page 5 5.7 To reinstall the unit onto the wall plate, first ensure the wall plate retaining screws are loosened enough to clear the TRT032N body, then engage the top of the TRT032N onto the wall plate retaining tabs, and push firmly downwards and then upwards.
- Page 6 6. Connection Diagram Connect the 230V 50Hz mains supply and load cables to the terminal block which are marked as follows; • Note: Check boiler instructions before connecting. Switch Live from NO (normally open contact for heating) to bolier 230V AC 50Hz BOILER MAINS...
- Page 7 • Use the dial adjuster to set the desired temperature. • When the room temperature is below the desired value, the thermostat will call for heat from the boiler. • Once the room has reached the desired temperature, the TRT032N ceases to call for heat from the boiler.
- Page 8 Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement is sent out.
