DESCRIPTION

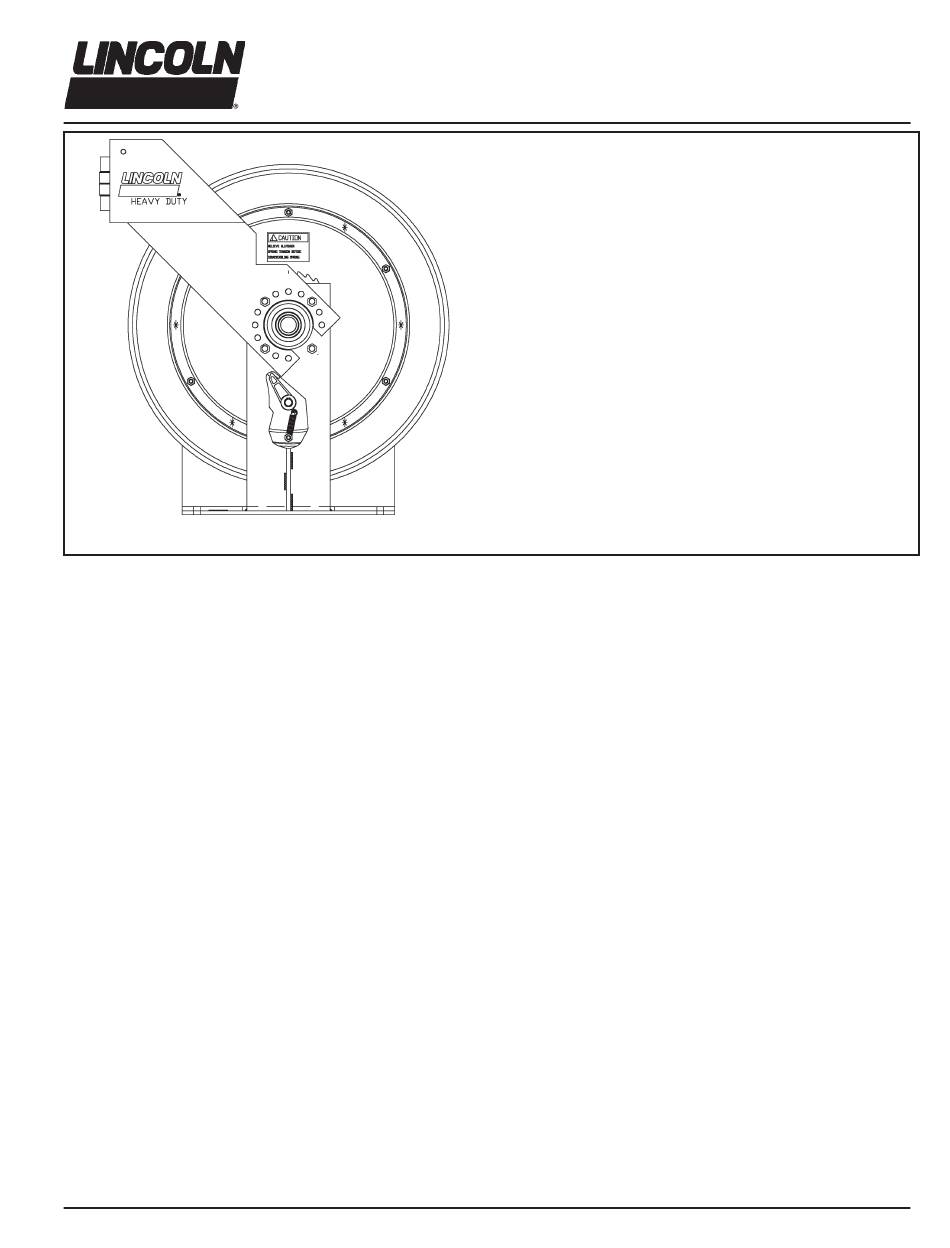

Model 84275 Hose Reel is a spring operated unit designed
to hold and retract up to 75 ft. of 5/8" diameter hose, see
hole capacities chart.
The reel is a heavy duty unitl designed for bus and truck
lubrication or wherever extra heavy duty
construction and longer length delivery hose is required
. The reel can be installed as a single unit or in multiple
configurations.
Reel features include a reel latch that automatically locks
at desired positions as the hose is extended and releases
with a short pull on the hose.
MAR - 2008
Maximum working pressure
Material Inlet
Material outlet
Sheave width
Sheave diameter
Drum diameter
Overall width
Overall height
Overall depth
Maximum hose capacities (Including hang down):
3/8" I.D. Grease hose (SAE 100 R2)
1/2" I.D. Grease hose (SAE 100 R2)
1/2" I.D. Oil hose (SAE 100 R3)
5/8" I.D. Grease hose (SAE 100 R1)
NOTE: Maximum hose capacities are based on SAE
specified hoses. Exceeding these capacities voids war-
ranty.
Refer to DELIVERY HOSE INSTALLATION for proper hose
to reel assembly.
OWNER/OPERATOR
RESPONSIBILITY
It is the owner/operator responsibility to properly use and
maintain this equipment.
The instructions and warnings contained in this manual
shall be read and understood by the owner/operator prior
to operating this equipment.
If an owner/operator does not understand English, the
contents of this manual shall be explained in the owner/
operator
native language to assure the owner/operator
comprehends.
It is the owner/operator responsibility to maintain the leg-
ibility of all warning and instruction labels.
The owner/operator shall retain this manual for future ref-
erence to important warnings, operating and maintenance
instructions.
Form 403733
MODEL 84275
BARE REEL

SPECIFICATIONS

5000 p.s.i.
1/2" NPT (Female)
1/2" NPT (Female)
10"
19-1/4"
12-3/4"
13-1/2"
22-1/2"
21"
- E35
Section
SERIES "E"
75 ft.
75 ft.
75 ft.
75 ft.
- 40N
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincoln E Series

  • Page 1: Specifications

    MODEL 84275 BARE REEL SERIES “E” SPECIFICATIONS Maximum working pressure 5000 p.s.i. Material Inlet 1/2” NPT (Female) Material outlet 1/2” NPT (Female) Sheave width 10” Sheave diameter 19-1/4” Drum diameter 12-3/4” Overall width 13-1/2” Overall height 22-1/2” Overall depth 21” Maximum hose capacities (Including hang down): 3/8”...
  • Page 2 E. Assemble axle assembly (274845) to sheave assembly (237771) and secure with standoffs (237780). F. Assemble axle and sheave assembly to reel by sliding the axle assembly (274845©) through the bearings in the arbor Failure to heed the following warnings including mis- and ratchet casting (237769) and securing with washer use, over pressurizing, modifying parts, using incom- (48217) and Tru-arc (68424).
  • Page 3 INSTALLATION From open side of reel (with outside support removed), loop en- tire length of hose onto reel in a clockwise direction. Pull hose out through roller outlet to wind power spring. When hose is DELIVERY HOSE INSTALLATION completely extended, latch reel to prevent it from unwinding. (MAXIMUM SPRING TENSION) Continue to add loops of hose and pull out hose until power For smoother operation during retraction and to increase hose...
  • Page 4 Slide ball stop over free end of hose and position slightly below roller outlet. Tighten screws to secure ball stop to hose. Power spring is now set to maximum tension. ADJUSTING SPRING TENSION To prevent premature power spring failure, spring tension should be adjusted so that it requires at least two full turns of the reel sheave before the spring is wound tight.
  • Page 5: Safety Information

    Lincoln warrants series 20, 25, 40 bare pumps, and Heavy Duty and 87000 series (94100, 94300, 94500) bare reels to be free from defects in material and workmanship for five (5) years following the date of purchase. If equipment is determined by Lincoln, in its sole discretion, to be defective during the first year of the warranty period, it will be repaired or replaced at Lincoln’s discretion, without charge.
  • Page 6 SERVICE PARTS © * Included in 275536 Kit. © Indicates change Page Number - 6 Form 403733...
  • Page 7 DETAIL A VIEW B (ROTATED) IMPORTANT ACCESSORY PART NUMBERS 242503 NIPPLE AND 242504 ELBOW ARE REQUIRED FOR PROPER DELIVERY HOSE INSTALLATION ON LARGE I.D. HOSES (5/8” I.D. AND LARGER). THESE PARTS ARE NOT PART OF REEL AND ARE SOLD SEPARATELY. * Included in 275536 Kit.
  • Page 8 * Included in 275536 Kit. NOTE: This kit will update any 84275 Reel that is Series “C” or later. © Indicates change Americas: Europe /Africa/Middle East © Copyright Lincoln Industrial Asia/Pacific: 51 Changi Business Park One Lincoln Way Lincoln GmbH Corp.
