Foot End Interface Assembly - Stryker Performance-LOAD Maintenance Manual

F F o o o o t t e e n n d d i i n n t t e e r r f f a a c c e e a a s s s s e e m m b b l l y y

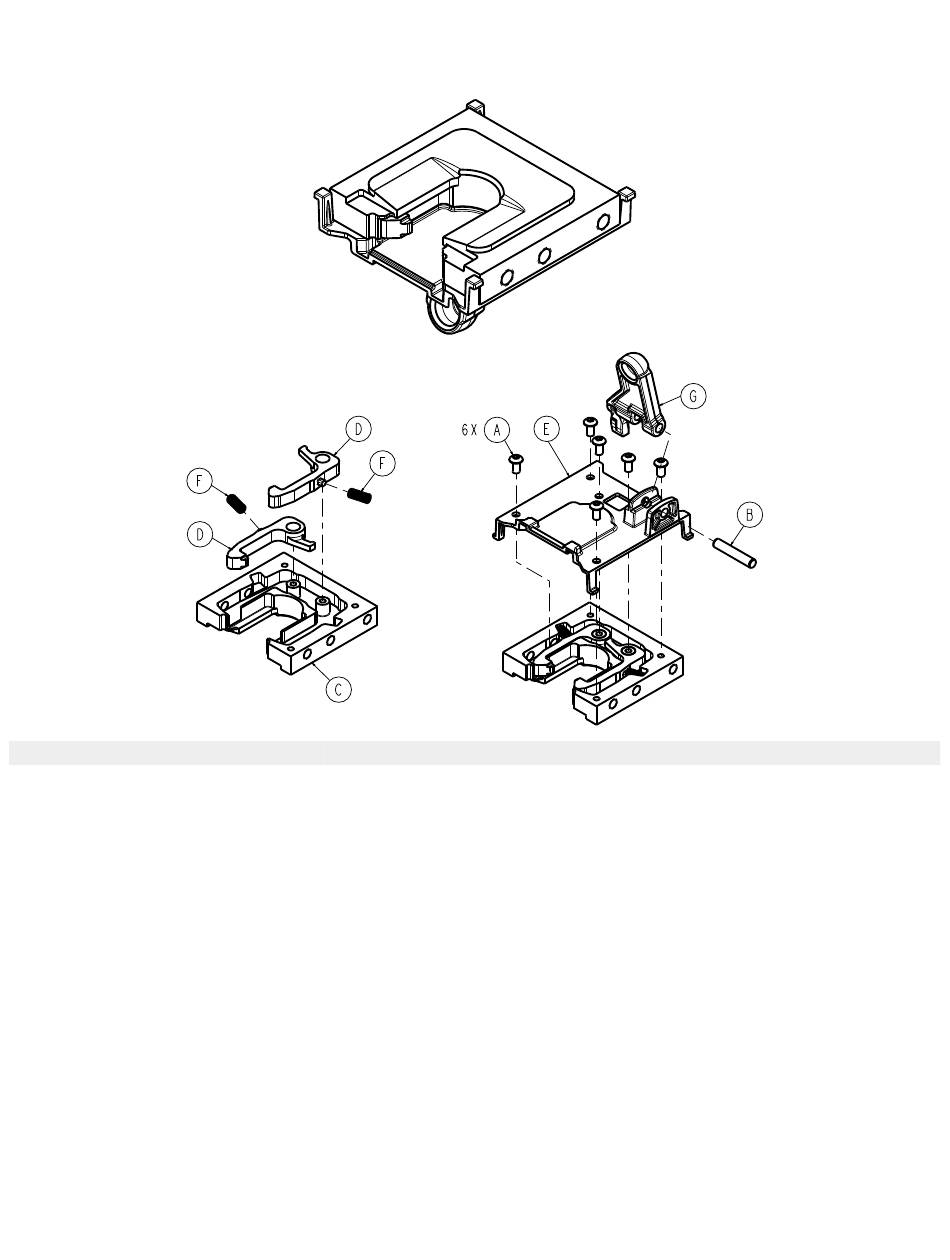

6392-001-022 Rev A (Reference only)
I I t t e e m m N N u u m m b b e e r r
A 0004-442-000
B 0026-556-000
C 6392-001-202
D 6392-001-250
E 6392-001-251
F 6392-001-252
G 6392-001-257
6392-009-002 Rev E.4
N N a a m m e e
Button head cap screw
Dowel pin
Interface, foot end
Lock pawl, foot end
Pivot bracket, foot end interface
Pawl spring
Release latch link arm
Q Q u u a a n n t t i i t t y y
6
1
1
2
1
2
1
29 EN
