S S a a f f e e t t y y b b a a r r r r a a i i l l s s u u p p p p o o r r t t r r e e p p l l a a c c e e m m e e n n t t
T T o o o o l l s s r r e e q q u u i i r r e e d d : :
• T27 Torx driver
• Tape measure
P P r r o o c c e e d d u u r r e e : :
1. Using a T27 Torx driver, remove and save the two screws (A) that secure the safety bar rail support (B) to the safety bar
rail (C) (Figure 7).
2. Using a T27 Torx driver, remove and save the two screws (D) that secure the safety bar rail support (B) to the guide rails
(E) (Figure 7). Discard the safety bar rail support.
3. Using a tape measure, make sure that the tube connector (F) is secured into the guide rails (E) at a depth of 0.75 ±
0.125 in. (Figure 8).
EN 18

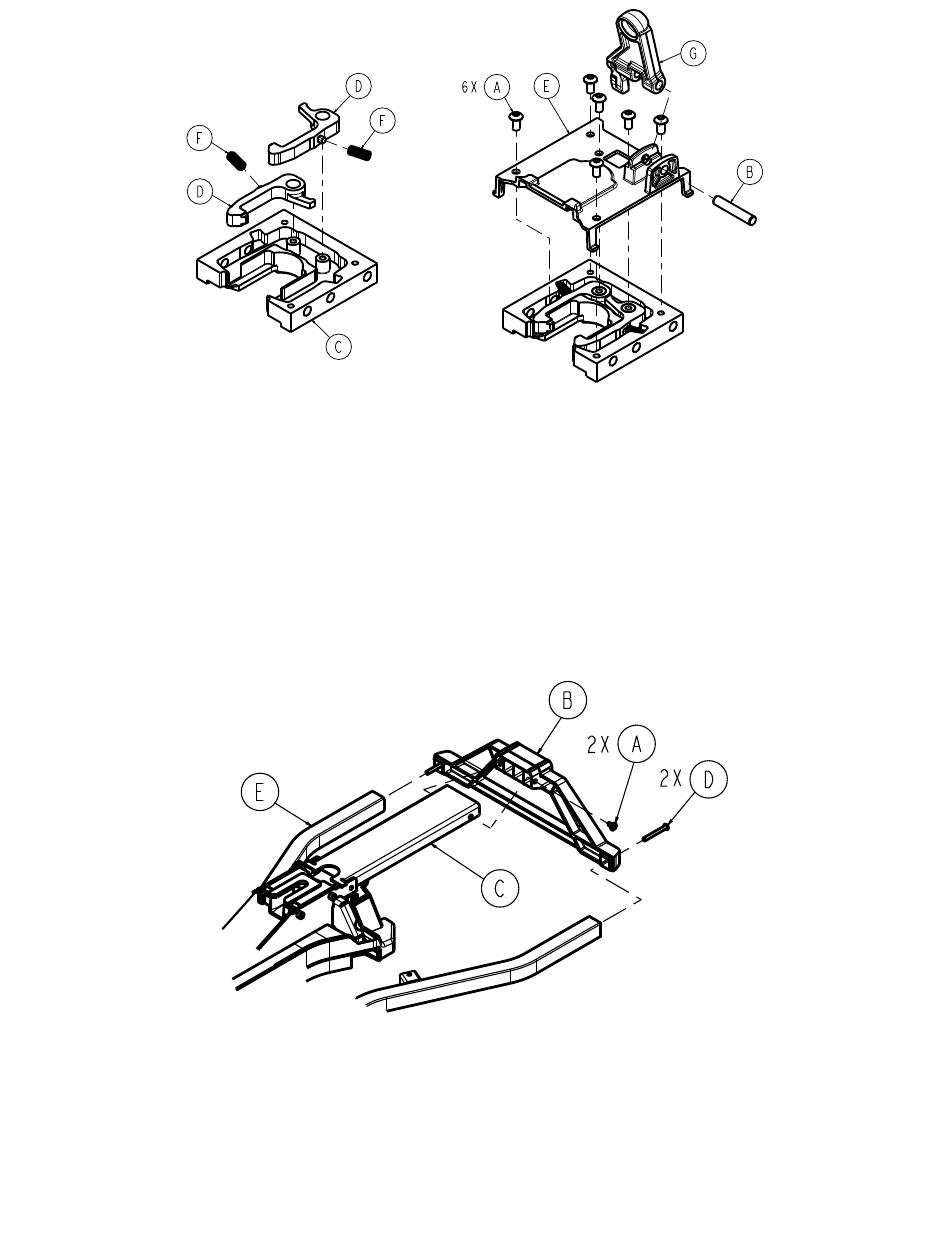

F F i i g g u u r r e e 6 6 – – R R e e p p l l a a c c i i n n g g t t h h e e f f o o o o t t e e n n d d l l o o c c k k p p a a w w l l
F F i i g g u u r r e e 7 7 – – R R e e p p l l a a c c i i n n g g t t h h e e s s a a f f e e t t y y b b a a r r r r a a i i l l s s u u p p p p o o r r t t
6392-009-002 Rev E.4
