Rhino-Rack RCP63-BK Manual

Important:

1. Please refer to your fi tting instruction to ensure that the roof racks are installed in the correct locations.
2. Check the contents of kit before commencing fi tment and report any discrepancies.
3. Place these instructions in the vehicle's glove box after installation is complete.
4. These instructions must be followed for warranty to be upheld.
Note: Crossbars and legs
sold as separate. Suitable
for both RVL , RVH, RCL and
RCH legs and bars.
Maximum carrying capacity: 80kg (176lbs) evenly distributed over crossbars.

On Road Cargo Allowance

70kg / 165lb
Maximum carrying capacity: 75kg (165lbs) evenly distributed over crossbars when mounted on the strongest section of
the roof. Please refer to your vehicle manufacturers handbook for maximum roof loading. Always use the lower of the
two fi gures. Note: Be sure to check the Rhino-Rack website to see if you have the latest version of instructions before
beginning.

Advisory:

It is essential that all bolt connections be checked after 48hrs from when you fi rst install your crossbars. Bolt connections should
be checked again at regular intervals (once a week is enough, depending on road conditions, usage, loads and
distances travelled). You should also check the crossbars each time they are refi tted. Make sure to fasten your load securely.
Please ensure that all loads are evenly distributed and that the centre of gravity is kept as low as possible.
Use only non-stretch fastening ropes or straps.

Load Ratings

When these roof racks are to be used on a vehicle that is driven off sealed roads, the manufacturer maximum roof load rating (to
be found in the vehicle's User Manual) should be
load rating is 75kgs\165lbs, these racks, when fi tted to this vehicle should have no more than 37.5kgs/82lbs loaded on them.
Caution:
The handling characteristics of the vehicle changes when you transport a load on the roof. For safety reasons we recommend
you exercise extreme care when transporting wind-resistant loads. Special consideration must be taken into account when
cornering and braking. Please remove crossbars when putting vehicle through an automatic car wash.
Note for Dealers and Fitters: It is your responsibility to ensure instructions are given to the end user or client.
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of Rhino-Rack Australia Pty. Ltd. and may not be used or changed for any other purpose than intended.

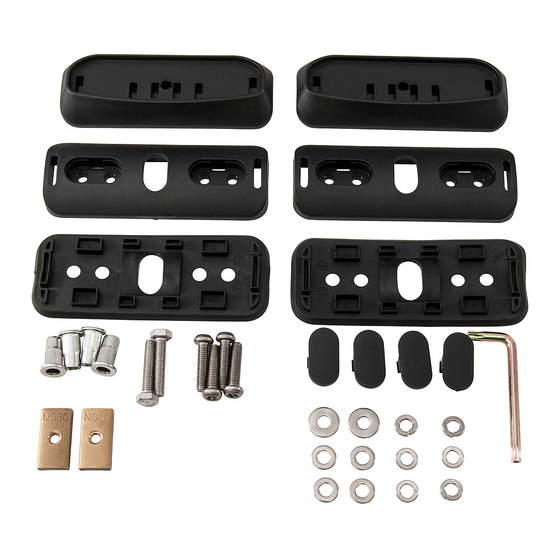

RCP63-BK Base Kit

Off Road Cargo Allowance

37.5kg / 82lbs
divided by a safety factor of 2
Document No: R1587
Prepared By: Kayle Everett
Authorised By: Chris Murty
CONTROLLED

Roof Allowance

Rack Weight

75kg / 165lbs 5kg / 11lb
. For example, if the vehicle's maximum roof
Fit Time: 30min
Issue No: 01
Issue Date: 06/10/2017
Page 1 of 3
