Metra Electronics 82-3043 Installation Instructions

Chevrolet blazer 1995-1998, s10 1994-1998 gmc jimmy 1995-1998, sonoma 1994-1998

Download this manual

Chevrolet Blazer 1995-1998, S10 1994-1998

GMC Jimmy 1995-1998, Sonoma 1994-1998

KIT FEATURES

• Adapts 5 1/4"or 6 1/2"speakers to the front door locations

KIT COMPONENTS

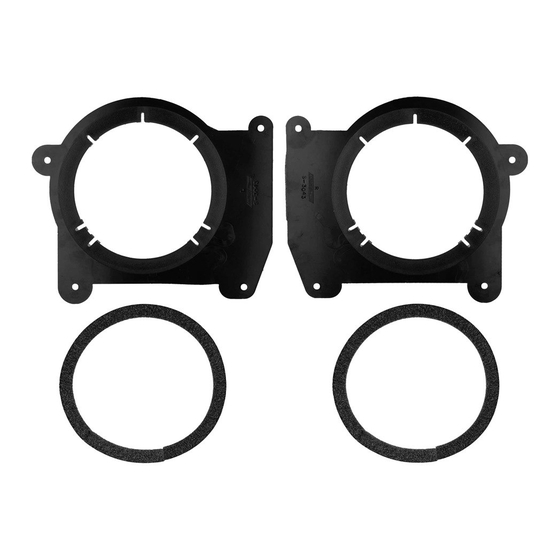

• A)

Speaker adapter plates

• B) (2) Foam strips • C) (8) #14 x 1/2" Phillips screws

WIRING CONNECTIONS (sold separately)

Wiring Harness: • 72-4500

TOOLS REQUIRED

• Phillips screwdriver • Socket wrench • Window crank removal tool

Installation instructions for 82-3043

82-3043

CAUTION!

Metra recommends disconnecting the negative bat -

tery terminal before beginning any installation, unless the vehicle

manufacturer recommends against so. Please check with your local

Dealership for more information. All accessories, switches, climate

controls panels, and especially air bag indicator lights must be con -

nected before reconnecting the battery or cycling the ignition. Also,

do not remove the factory radio with the key in the on position, or the

vehicle running. It would be best to remove the key from the ignition

and then wait a few seconds before removing the factory radio.

Page 1 Installation instructions for 82-3043 Chevrolet Blazer 1995-1998, S10 1994-1998 CAUTION! Metra recommends disconnecting the negative bat - GMC Jimmy 1995-1998, Sonoma 1994-1998 tery terminal before beginning any installation, unless the vehicle manufacturer recommends against so. Please check with your local 82-3043 Dealership for more information.
Page 2 82-3043 Door Disassembly S-10 Blazer, S-10 Pickup, S-15 Jimmy, Sonoma 1994-1997: (PASSENGER SIDE APPLICATION SHOWN 1. Remove (1) screw and (1) plastic rivet IN ILLUSTRATION) from the door lock assembly and remove the door lock trim. Unclip the plastic insert in the door pull handle and remove (2) screws exposed.
Page 3: Kit Assembly
82-3043 Kit Assembly 1. Peel away the paper backing from the foam strip and attach it to the front of the speaker adapter plate. (This will enhance the performance of the aftermarket speaker). (Figure A) (PASSENGER SIDE APPLICATION 2. Mount the aftermarket speaker to the...
