Metra Electronics 95-3314G Installation Instructions

Chevy malibu (with monochrome screen) 2013-up

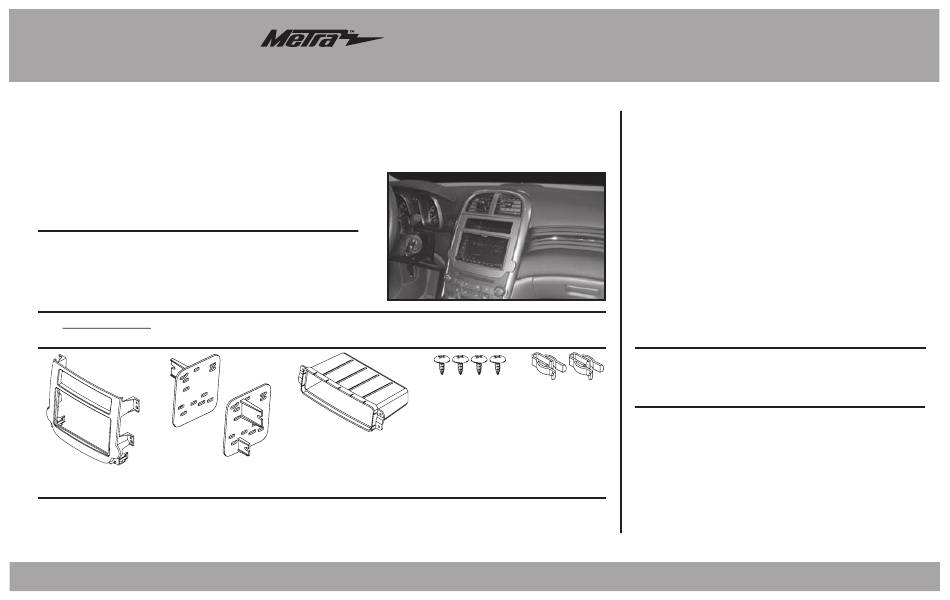

Installation instructions for part 95-3314G

Chevy Malibu

KIT FEATURES

• Double DIN radio provision with pocket

• Painted gray to match factory dash

• A) Radio trim panel • B) Brackets • C) Pocket • D) (4) #8 x 3/8" Phillips

screws • E) (2) White panel clips

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • LC-GMRC-044 or AX-ADBOX2 and AX-ADGM04

Antenna Adapter: • 40-EU55

2013-up

(with monochrome screen)

95-3314G

• Panel removal tool • Phillips screwdriver

• Socket wrench (9/32")

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

Table of Contents

Do you have a question about the 95-3314G and is the answer not in the manual?

Page 1 Installation instructions for part 95-3314G Chevy Malibu 2013-up (with monochrome screen) 95-3314G KIT FEATURES • Double DIN radio provision with pocket • Painted gray to match factory dash KIT COMPONENTS • A) Radio trim panel • B) Brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws •...
Page 2: Dash Disassembly
95-3314G Dash Disassembly 2014-up Chevy Malibu 2013 Chevy Malibu (with monochrome screen) (with monochrome screen) 1. Unclip and remove the trim panel 1. Unclip and lift up the panel surrounding the center stack surrounding the shifter. (Figure A) including the a/c vents. (Figure A) 2.
Page 3: Kit Assembly
Metra recommends using the proper mating adapters from Metra and/or AXXESS. 5. Mount the new radio assembly into the dash and reassemble dash in (Figure A) (Figure B) reverse order of disassembly using the 95-3314G radio housing panel.
