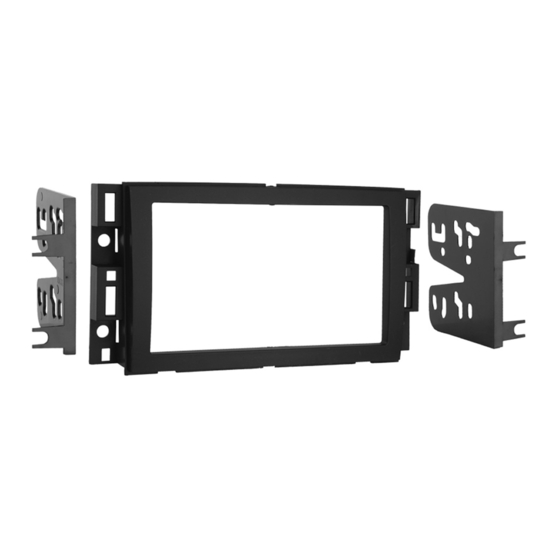

Car radio kit
Hide thumbs Also See for 95-3305:

Advertisement

Available languages

Available languages

Quick Links

Download this manual

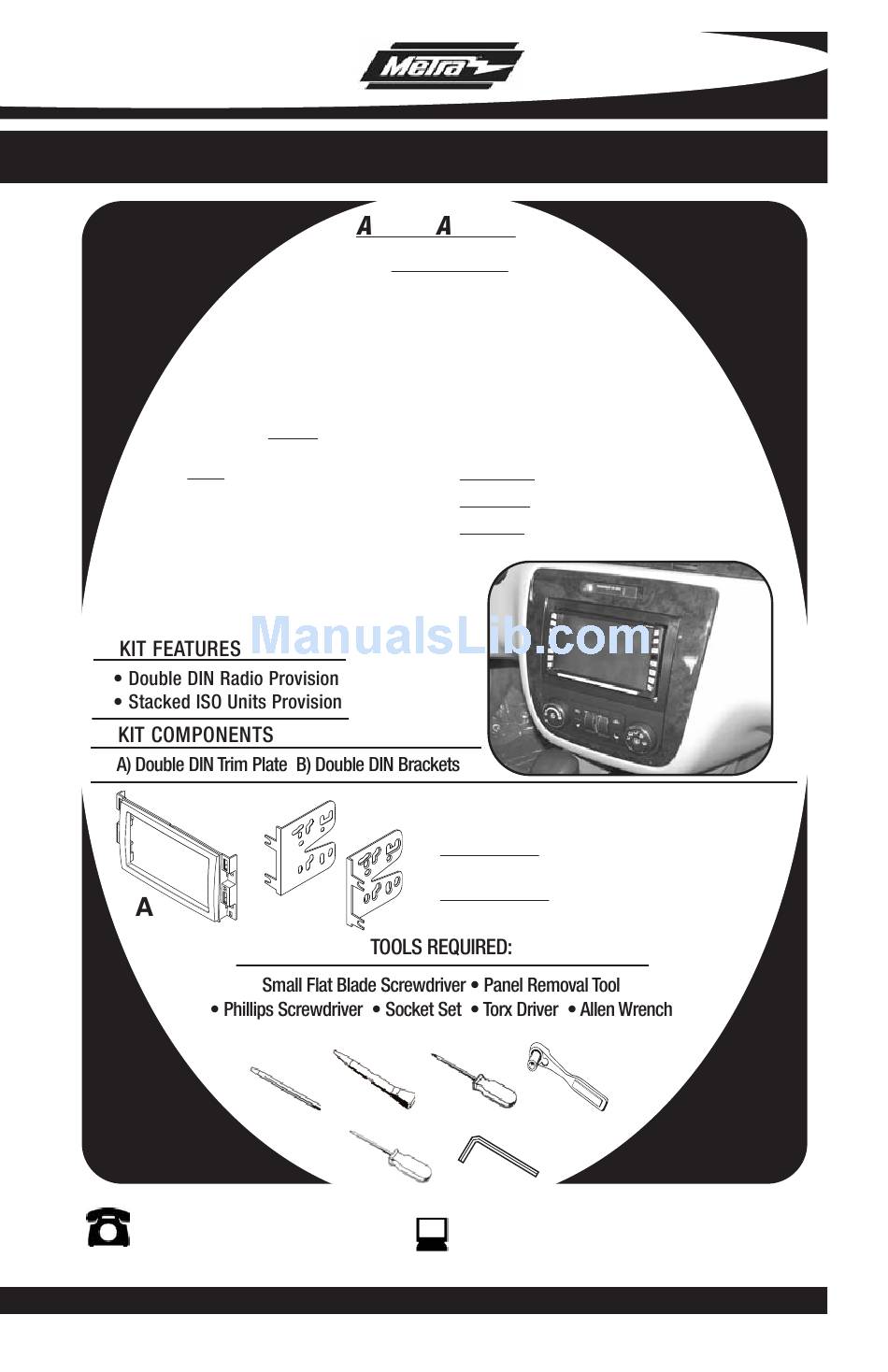

INSTALLATION INSTRUCTIONS FOR PART 95-3305
BUICK Enclave 2008-11, Lucerne 2006-10
GMC Acadia 2007-11
Savanna 2008-10
Sierra Denaili 2007-11
Yukon Denali/XL 2007-10
95-3305
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
PPLIC TIONS
CH EV ROLET
Avalanche 2007-10/Equinox 2007-09
Express Van 2008-10/Impala 2006-10
Monte Carlo 2006-07/Tahoe 2007-11
Silverado 2007-11
(Excluding Classic Models)
Suburban 2007-10/Traverse 2009-11
(Excluding Classic Models)
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Wiring Harness:
• See www.metraonline.com for specific interface
Antenna Adapter:
B
• 40-CR10 - Chrysler antenna adapter 2002-up
HUMMER H2 2008-09
PONTIAC Torrent 2007-09
SATURN Outlook 2007-09/Vue 2008-09
www.metraonline.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 95-3305 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 95-3305

Summary of Contents for Metra Electronics 95-3305

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-3305 Avalanche 2007-10/Equinox 2007-09 Express Van 2008-10/Impala 2006-10 Monte Carlo 2006-07/Tahoe 2007-11 Silverado 2007-11 Suburban 2007-10/Traverse 2009-11 BUICK Enclave 2008-11, Lucerne 2006-10 GMC Acadia 2007-11 Savanna 2008-10 Sierra Denaili 2007-11 (Excluding Classic Models) Yukon Denali/XL 2007-10...
  • Page 2 Final Assembly ........... *Note: Refer also to the instructions included with the aftermarket radio. 95-3305 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
  • Page 3 95-3305 DASH DISASSEMBLY BUICK LUCERNE CHEVY IMPALA / MONTE CARLO 2006-2010 (Figure A) (Figure B) Continue to kit assembly.
  • Page 4 SILVERADO (Excluding Classic Models)/SUBURBAN GMC YUKON/SIERRA (Excluding Classic Models) 2007-11 Note: Refer also to the instructions included with the aftermarket radio. (Figure A) (Figure B) (Figure B) (Figure C) Continue to kit assembly 95-3305 DASH DISASSEMBLY CHEVY AVALANCHE/TAHOE...
  • Page 5 95-3305 DASH DISASSEMBLY CHEVY EXPRESS VAN / GMC SAVANNA 2008-10 Note: Refer also to the instructions included with the aftermarket radio. Continue to kit assembly...
  • Page 6 SUZUKI XL-7 2007-09 Note: Refer also to the instructions included with the aftermarket radio. (Figure A) (Figure C) (Figure D) (Figure E) Continue to kit assembly 95-3305 DASH DISASSEMBLY...
  • Page 7 CHEVROLET EQUINOX 2007-09 PONTIAC TORRENT 2007-09 Note: Refer also to the instructions included with the aftermarket radio. Note: This allows you to unplug the window switch easi- (Figure A) (Figure C) Continue to kit assembly 95-3305 DASH DISASSEMBLY (Figure B)
  • Page 8 95-3305 DASH DISASSEMBLY BUICK ENCLAVE 2008-11 / GMC ACADIA 2007-11 SATURN OUTLOOK 2007-09 Note: Refer also to the instructions included with the aftermarket radio. BUICK ENCLAVE / CHEVY TRAVERSE (See drawings) Continue to kit assembly GMC ACADIA SATURN OUTLOOK...
  • Page 9 95-3305 DASH DISASSEMBLY HUMMER H2 2008-09 Note: Refer also to the instructions included with the aftermarket radio. (Figure A) Continue to kit assembly...
  • Page 10 95-3305 DASH DISASSEMBLY SATURN VUE 2008-09 Note: Refer also to the instructions included with the aftermarket radio. (Figure A) (Figure B) (Figure B) (Figure C) Continue to kit assembly...

  • Page 11: Double Din Radio Provision

    DOUBLE DIN RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. NOTE: XL-7 ONLY (Figure A) (Figure B) STACKED ISO UNITS PROVISION NOTE: XL-7 ONLY (Figure A) (Figure C) Continue to final assembly 95-3305 KIT ASSEMBLY (Figure C)

  • Page 12: Final Assembly

    FINAL ASSEMBLY FINAL WIRING CONNECTIONS METRA / EIA WIRING CODE *NOTE: REV. 11/22/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST95-3305 95-3305 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape...
  • Page 13 INSTRUCCIONES DE INSTALACIÓ N PARA LA PIEZA 95-3305 Avalanche 2007-10/Equinox 2007-09 Express Van 2008-10/Impala 2006-10 Monte Carlo 2006-07/Tahoe 2007-11 Silverado 2007-11 (excl. Classic models) Suburban 2007-10/Traverse 2009-11 BUICK Enclave 2008-11, Lucerne 2006-10 GMC Acadia 2007-11 Savanna 2008-10 Sierra/Denali 2007-11 (excluding classic models)
  • Page 14 Montaje final ........... . . *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. 95-3305 INDICE NOWLEDGE IS...
  • Page 15 95-3305 DESMONTAJE DEL TABLERO BUICK LUCERNE CHEVY IMPALA / MONTE CARLO 2006-2010 Continúe con el montaje del kit.
  • Page 16 SILVERADO (noincluyem odelosclásicos)/SUBURBAN GMC YUKON/SIERRA (noincluyem odelosclásicos) 2007-10 Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. Continúe con el montaje del kit. 95-3305 DESMONTAJE DEL TABLERO CHEVY AVALANCHE/TAHOE...
  • Page 17 95-3305 DESMONTAJE DEL TABLERO CHEVY EXPRESS VAN / GMC SAVANNA 2008-10 *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa.
  • Page 18 SUZUKI XL-7 2007-09 *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. Continúe con el montaje del kit. 95-3305 DESMONTAJE DEL TABLERO...
  • Page 19 CHEVROLET EQUINOX 2007-09 PONTIAC TORRENT 2007-09 *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. Continúe con el montaje del kit. 95-3305 DESMONTAJE DEL TABLERO...
  • Page 20 95-3305 DESMONTAJE DEL TABLERO BUICK ENCLAVE 2008-11 / GMC ACADIA 2007-11 SATURN OUTLOOK 2007-09 *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. BUICK ENCLAVE / CHEVY TRAVERSE Continúe con el montaje del kit. GMC ACADIA SATURN OUTLOOK...
  • Page 21 95-3305 DESMONTAJE DEL TABLERO HUMMER H2 2008-09 *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. Continúe con el montaje del kit.
  • Page 22 95-3305 DESMONTAJE DEL TABLERO SATURN VUE 2008-09 *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. Continúe con el montaje del kit.
  • Page 23 ACCESORIO PARA RADIO DIN DOBLE *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. NOTA: SOLO PARA XL-7 ACCESORIO PARA UNIDADES ISO APILADAS NOTA: SOLO PARA XL-7 Continúe con el montaje final. 95-3305 MONTAJE DEL KIT...

  • Page 24: Montaje Final

    MONTAJE FINAL CONEXIONES DE CABLEADO FINALES CÓ DIGO DE CABLEADO DE METRA/EIA *NOTE: REV. 11/22/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST95-3305 95-3305 MONTAJE FINAL A) Pele 1/2 in de los extremos de los cables. B) Tuerza los extremos juntos.
