Frama Access B400 Service Manual

Hide thumbs Also See for Access B400:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
Service Manual
English Version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Access B400 and is the answer not in the manual?

Questions and answers

Related Manuals for Frama Access B400

Summary of Contents for Frama Access B400

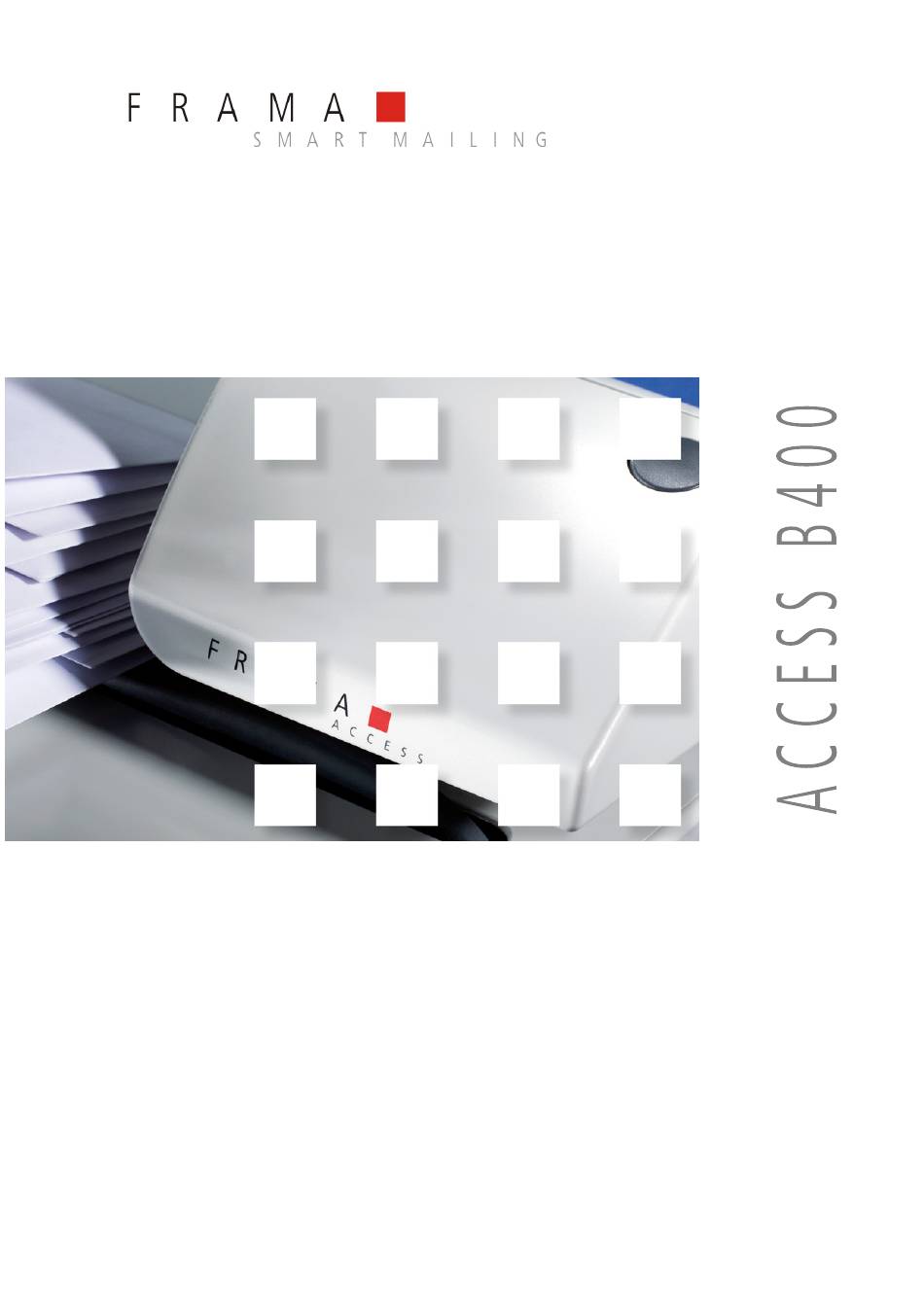

  • Page 1 Service Manual English Version...
  • Page 2 FRAMA AG TITLE: SERVICE MANUAL CH-3438 LAUPERSWIL SUBJECT: ACCESS B400 AUTHOR(S): BÄRTSCHI ROLAND FILE: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: CREATED: 12.04.11 12:01 PAGE OF 26 DOC. V: R01.06 MODIFIED: 12.04.11 12:12...
  • Page 3 Service Manual Access B400 R01.06 2011-04-12 AUTHOR(S): Bärtschi Roland For internal use only FRAMA AG TITLE: SERVICE MANUAL CH-3438 LAUPERSWIL SUBJECT: ACCESS B400 AUTHOR(S): BÄRTSCHI ROLAND FILE: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: CREATED: 12.04.11 12:01 PAGE OF 26 DOC. V: R01.06 MODIFIED: 12.04.11 12:12...
  • Page 4 Document Overview Document Content/Goal: Service Manual Intended for: Technical staff, trained on the Frama AG Access B400. Restrictions: References: Document History The following table records all changes that were made in this document. In case of little changes (e.g. format, spelling, minor corrections or omissions) the version number after the [.] has to be incremented.

  • Page 5: Table Of Contents

    ..............................26 OTES IST OF ICTURE Illustration 1 Letter Opener Access B400........................7 Illustration 2 Disassembling / Protective Cover......................9 Illustration 3 Disassembling / Separator Unit ......................9 Illustration 4 Disassembling / Housing ........................9 Illustration 5 Disassembling / Main Board......................... 10 Illustration 6 Disassembling / Mechanic........................
  • Page 6 Illustration 29 Maintenace / Tool..........................23 Illustration 30 / Tools for cutter adjustment......................23 Illustration 31 Maintenance / Live Cycle ........................24 FRAMA AG TITLE: SERVICE MANUAL CH-3438 LAUPERSWIL SUBJECT: ACCESS B400 AUTHOR(S): BÄRTSCHI ROLAND FILE: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: CREATED: 12.04.11 12:01...

  • Page 7: Introduction

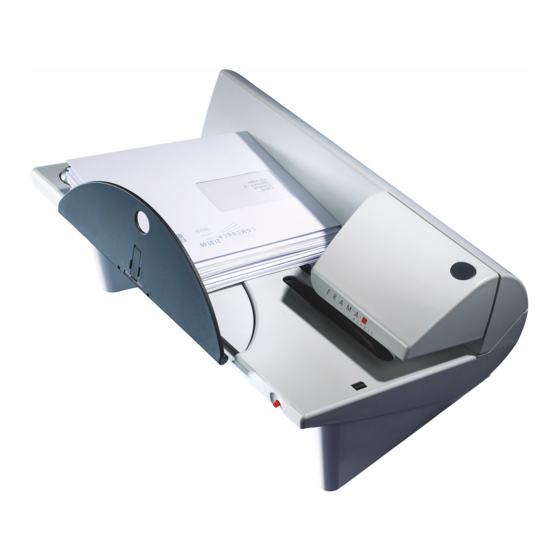

    1 Introduction This document, provided by Frama AG, comprises general technical information on the Letter Opener Access B400 as well as detailed descriptions for the disassembling and assembling procedure for the letter opener. For detailed information, as installation, processing and handling of envelopes, refer to the” Operating Guide”.

  • Page 8: General Information

    148 mm high Net weight (excluding letter collecting tray): 5.3 kg Letter collecting tray net weight: 0.83 kg FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC.

  • Page 9: Disassembling

    Remove the two cross head screws (A). Remove both support axels (B). Remove the separator unit. Illustration 3 Disassembling / Separator Unit Turn the Access B400 on the backside to get access to the screws. Loosen 9 screws. One screw is underneath the rubber foot.

  • Page 10: Disassembling Letter Opener Mechanic

    Dismount the front plate, by loosen the four cross head screws. Illustration 7 Disassembling / Mechanic FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC.
  • Page 11 Remove the motor. Remove the cover plate. Remove the ball bearing (A). Illustration 9 Disassembling / Mechanic FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC.

  • Page 12: Exchange Of Letter Edge Stop

    Illustration 11 Letter edge stop For assembly process the inverse way. Illustration 12 Letter edge stop FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC.

  • Page 13: Exchange Sensor Of Release Lever

    The Light barrier is snapped in the metal support by four clip fingers. For assembly process the inverse way. FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01...

  • Page 14: Assembling

    Mount the spring clips and the front pulleys. Put the front drive belt on the pulley. FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC.
  • Page 15 Adjust the guiding skid (B) to its max. right position. The skid must not touch the cutter! Illustration 15 Assembling / Mechanic FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC.
  • Page 16 .Fix the cable in the cable holder. Illustration 18 Assembling / red power bulb FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC.
  • Page 17 When no adjustment to the cutter needs to be done, continue with the assembly. Otherwise continue with chapter 6 “Adjustments”. Snap in the protective cover. Test the Access B400 for it functionality with some test envelopes. Illustration 20 Assembling / Upper Housing FRAMA AG TITEL:...
  • Page 18 FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC. V: R01.06. GEÄNDERT: 12.04.11 12:12...

  • Page 19: Adjustments

    6 Adjustments 6.1 Cutter Prepare the Access B400 for the cutter adjustment as shown in the picture: Bypass the protective cover switch with a magnet. Connect the power supply. Adjustment: The ball bearing is turning on an eccentric axle. 1. For begin of the adjustment, the mark on the nut has to stay at the top position.

  • Page 20: Separator Unit

    6.2 Separator Unit Basically the separator unit is pre-adjusted through Frama AG. The space between separator shoe and letter table needs only to be controlled in case of bad separated envelopes. Process as followed: Put the adjustment tool underneath the separator shoes as displayed.

  • Page 21: Maintenance

    (340-03-036 / 2x) For assembly, process the inverse way Illustration 27 Maintenance / Rubber Separator Shoe FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01...

  • Page 22: In General Maintenance

    7.3 In General Maintenance The maintenance of the Access B400 could be conducted by the occasion of a customer visit. Following points should be performed: Clean the inside and outside of the Access B400. Do not use harsh chemical cleaners! Clean the inside from dust and paper particles.

  • Page 23: Tools

    Tool for separator shoe adjustment: Adjustment plate separator 340-05-005 Illustration 29 Maintenace / Tool Tools for cutter adjustment. Not to purchase from Frama AG 1) Torque wrench (range for 6Nm) 2) Wrench no. 15 3) Socket metric 4, allen screw 4) Extension bar...

  • Page 24: Display The Total Live Cycle

    7.5 Display the Total Live Cycle With a special procedure the total hours the Access B400 has been in operation, can be read out. Process as following: Switch Power off. Remove the protective cover. Switch power on. The LED of the power switch starts blinking.

  • Page 25: Access B400 Motor Cooling System

    7.6 Access B400 Motor Cooling System The Frama letter opener Access B400 is, for reasons of cooling, equipped with an internal fan. The fan gets automatically activated in the following situations: a) Letters get fed through the letter opener without any interruption (letter release lever constantly actuated i.e.

  • Page 26: Trouble Shooting

    This envelope did not pass the cutter. Re-feed the envelope. Noise out of the B400 body The fan has started cooling the motor. Notes FRAMA AG TITEL: SERVICE MANUAL CH-3438 LAUPERSWIL THEMA: ACCESS B400 AUTOR(EN): BÄRTSCHI ROLAND DATEI: B400_MAN_R0106_EN_SERVCIE MANUAL.DOC DOC. REF: ERSTELLT: 12.04.11 12:01 SEITE VON 26 DOC.
