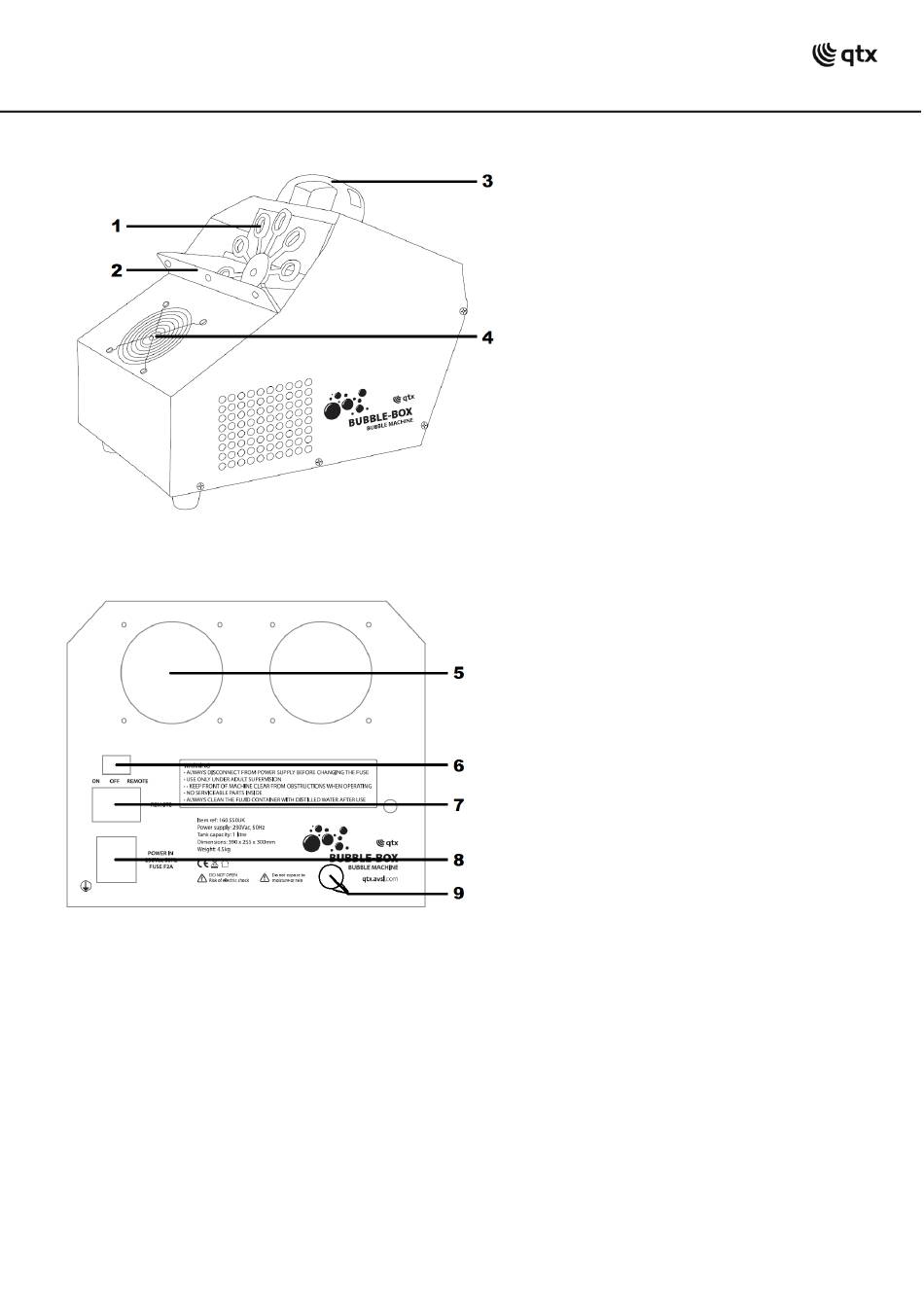

Layout

Rear panel

Operation

The BUBBLE-BOX is operated by a 3-position rocker switch. The centre position is off.
Press this switch to the left for constant bubble output.
Press this switch to the right for remote control of the bubble effect.
In this mode, bubbles are only produced when the switch on the remote control is pressed.
After use, switch off the machine and disconnect from the mains.
Drain the remaining fluid via the drain tap at the rear of the unit.
Rinse the bubble fluid tank with clean water and drain this also, then close the tap.
1. Bubble wand
2. Tank (pour fluid in here)
3. Carry handle
4. Front fan vent
5. Rear fan vents
6. ON/OFF/REMOTE Switch
7. Remote Socket
8. IEC Power Socket
9. Fluid drain tap
