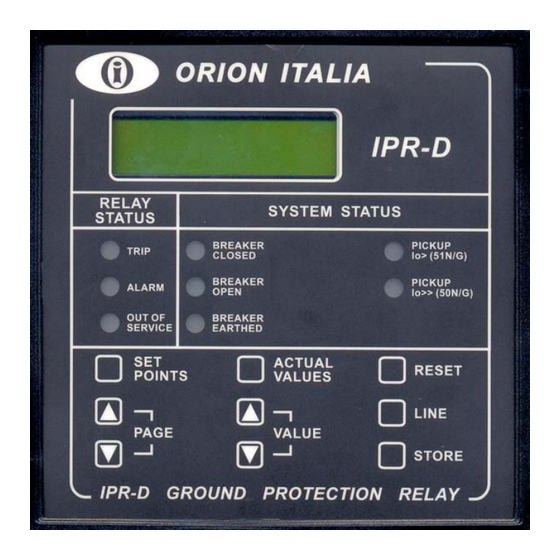

ORION ITALIA IPR-D Instruction Manual

Ground protection relay
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
O R I O N I T A L I A
I N S T R U C T I O N M A N U A L
I P R - D
Ground protection relay
Software rev.: IPR-D S1.01
Manual P/N: IPR-D GBM 01/09/2006
Via G. Orsi 35, 29100 Piacenza [PC] – Italia
Phone: ++ 39 0523 591161, Fax: ++ 39 0523 593898, Internet:
www.orionitalia.com

Advertisement

Table of Contents
loading

Related Manuals for ORION ITALIA IPR-D

Summary of Contents for ORION ITALIA IPR-D

  • Page 1 I N S T R U C T I O N M A N U A L I P R - D Ground protection relay Software rev.: IPR-D S1.01 Manual P/N: IPR-D GBM 01/09/2006 Via G. Orsi 35, 29100 Piacenza [PC] – Italia Phone: ++ 39 0523 591161, Fax: ++ 39 0523 593898, Internet: www.orionitalia.com...
  • Page 3 It indicates INFORMATION or REMARKS that must be read with particular attention. CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 5: Table Of Contents

    4.6 Setpoints page 6: DIGITAL INPUTS ......................4.7 Setpoints page 7: EVENT RECORDER ....................4.8 Setpoints page 8: DATE & TIME ......................... 4.9 Setpoints page 9: COMMUNICATIONS ....................4.10 Setpoints page 10: CALIBRATION MODE ....................CURRENT PROTECTION RELAY - IPR-D Manual P/N IPR-D GBM 01/09/2006...
  • Page 6 Definition of “event” and storing ........................Events format ..............................TROUBLESHOOTING ......................9. WARRANTY ..........................APPENDIX A – Tables and time-current curves ............. ANSI curves ....................................IAC curves ....................................IEC curves ....................................Diagrams ....................................CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 7: General Information

    The following information concerns the use of the Actual values and the Setpoints. OVERCURRENT PROTECTION IPR-D continuously checks the ground current in the line by means of its CT and activates an alarm and/or the circuit breaker trip when a value exceeds the set level (called Pickup level): 1.
  • Page 8 For the 3 possible curve types and their shapes see: Appendix A REMARK: when selecting the curve for the circuit breaker trip, make sure the max. input current to IPR-D does not exceed 100 A for more than 1 second ⇒ the wrong combination of time and current could damage the unit and consequently provoke the loss of protection.

  • Page 9: Digital Measurement

    0 °C to +50 °C Max.: 90% (non condensing) Storage: from –20 °C to + 70 °C DIELECTRIC WITHSTAND VOLTAGE BURN IN 2 KV 60 s 48 hours at 50 °C CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...
  • Page 10 The relay has to be jointed to the structure fixing it by stirrup with screws. DIMENSION FRONT PANEL CUT-OUT 137 x 137 mm 144 x 144 x 141 mm (→ Fig. 2.1 – IPR-D overall dimensions) WEIGHT APPLICABILITY 1.5 Kg System: three-phase;...
  • Page 11 EN 61000-4-4; Port: AC mains and signal lines. 5. Surge Reference norms: EN 61000-4-5; Port: AC mains. 6. Voltage dips and short interruptions Reference norms: EN 61000-4-11; Port: AC mains. CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 12: How To Read The Order Code

    The CT secondary must be specified when ordering (1 A or 5 A). The meaning of the order code is the following: IPR – D X X MODEL 1: Standard X: Special Version GROUND SECONDARY CT 1: 1 Ampere 5: 5 Ampere CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 13: Installing

    Chapter 2: Installing 2. Installing IDENTIFICATION On the plate on the rear side of the IPR-D you can find the following information: ORION ITALIA Manufacturer PIACENZA 29100 Manufacturer’s address TEL.: 0523 – 591161 FAX: 0523 – 593898 www.orionitalia.com Internet MADE IN ITALY...

  • Page 14: Wiring – Output Relay And Digital Inputs

    In Fig. 2.3 the relays contacts are represented in condition of no power supply. • Generally, the circuit breaker AUX 52a contact is connected in series to IPR-D TRIP contact for cutting the current to the coil. For high-absorption trip coils an auxiliary relay is needed.
  • Page 15 INGRESSI DIGITALI (CONTATTI SECCHI) RS-232 DRY CONTACT DIGITAL INPUTS PORT 2>tx BARRE DI TERRA 3>rx QUADRO ELETTRICO 5>Gnd 24 - 240 Vac/Vdc SWITCHGEAR GROUND BUS ALIMENTAZIONE SUPPLY VOLTAGE Figure 2.3 – Wiring diagram CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 16: Current Transformers (Ct)

    A maximum of 32 relays can be daisy-chained together in parallel mode on a communication channel for a MAXIMUM DISTANCE OF 1000 METERS. For increasing the number of relays on a single channel to more than 32 refer to ORION ITALIA. CURRENT PROTECTION RELAY - IPR-D...
  • Page 17 Chapter 2: Installing Figure 2.5 – Communication diagram CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 18: Control Power

    No internal or external adjustments are required to use any of the voltages included in the two indicated intervals. For the external protection, IPR-D has no internal fuses. SYSTEM GROUNDING On the rear side of the relay there are two separate grounds [ Fig.

  • Page 19: Menu Structure

    Chapter 3: How to use the menu 3. How to use the menu MENU STRUCTURE IPR-D menu is a tree-structure type, consisting of: • PAGE function access; • LINE for each PAGE. MENU ACCESS You can have access to the menu by pressing one of the following keys: ⇒...

  • Page 20: Quick Surfing Guide

    Any modifying not confirmed by STORE will be ignored. SYMBOLS USED IN THE TEXT The IPR-D display is represented by this figure. Next to each Setpoint, on the right side of the display, “RANGE:” will be displayed and followed by digits or...

  • Page 21: Menu Structure

    Chapter 3: How to use the menu MENU STRUCTURE The following page includes the complete structure of the IPR-D Menu Pages. The following keys can activate the two menus represented: POINTS ⇒ It allows programming the relay by setting the parameters and the electrical variables values.
  • Page 22 ▼ PAGE ▲ SETPOINT PAGE 8 DATE & TIME ▼ ▲ PAGE SETPOINT PAGE 9 COMMUNICATIONS ▼ ▲ PAGE SETPOINT PAGE 10 CALIBRATION MODE ▼ ▲ PAGE END OF SETPOINTS CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 23: How To Use Setpoints And Actual Values Keys

    (*) If YES has been selected, by pressing STORE key, all the nine keys on the front panelboard modify their functions and allow to enter the digits from 1 to 9, according to the correspondence represented in the diagram. CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 25: Setpoints" Menu

    The user can enter his own customized access code. • to confirm the code programmed by the Constructor. 1. press LINE key to pass to IPR-D RELAY: IPR-D – FIRMWARE • to replace the code programmed by the Constructor with the customized one: 1.

  • Page 26: Relationship Between Function And Output Relay

    Press LINE: the selection: T – 2 – has been completed and you pass to the following Line of GROUND TIMED O/C the active Setpoint. RELAY: T – 2 – CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 27: Setpoints Page 2: System Setup

    Chapter 4: "SETPOINTS" Menu Setpoints page 2: SYSTEM SETUP SETPOINTS PAGE 2 This page allows entering the IPR-D parameter values for the system in which it will operate. SYSTEM SETUP SAMPLING RANGE: 50 Hz; 60 Hz ..................... FREQUENCY: 50 Hz Enter the system frequency.

  • Page 28: Setpoints Page 3: Not Available

    Chapter 4: "SETPOINTS" Menu Setpoints page 3: NOT AVAILABLE SETPOINTS PAGE 3 This page is free: it is not used for IPR-D NOT AVAILABLE END OF PAGE Last LINE of PAGE 3. Press LINE or ▲PAGE, to pass to the first line of PAGE 4.

  • Page 29: Setpoints Page 5: Output Relays

    RESET. TRIP RELAY PULSE RANGE: 0.1 s÷ 2.0 s ......................TIME: 0.2 Sec STEPS: 0.1 s ........................Enter the delay for the trip relay de-energizing. "TRIP OUTPUT RELAY" PULSED CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...
  • Page 30 Last LINE of PAGE 5. Press LINE or ▲PAGE, to pass to the first line of PAGE 6. For AUX3 display the information at page 4.4 “OUT OF SERVICE ON AUX 3”. CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 31: Setpoints Page 6: Digital Inputs

    It enables/disables ground current protection events recording. SYSTEM ALARM RANGE: ON; OFF ......................... EVENTS: ON It enables/disables alarms events recording. OUTPUT RELAYS RANGE: ON; OFF ......................... EVENTS: ON It enables/disables output contacts events recording. CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 32: Setpoints Page 8: Date & Time

    Last LINE of PAGE 8. Press LINE or ▲PAGE, to pass to the first line of PAGE 9. Setpoint page 9: COMMUNICATIONS SETPOINT PAGE 9 This PAGE allows setting the features for the communications between IPR-D and other devices. COMMUNICATIONS 1 ÷ 247...

  • Page 33: Setpoints Page 10: Calibration Mode

    DIGITAL INPUT 3 RANGE: DEACTIVATED; ACTIVATED ................DEACTIVATED This message allows controlling the status (DEACTIVATED or ACTIVATED) of external contact DIGITAL INPUT 3. END OF PAGE Last LINE of PAGE 10. CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 35: Actual Values 1: Current Data

    Last LINE of PAGE 1. Press LINE or ▲PAGE, to pass to the first line of PAGE 2. Actual values 2: LAST TRIP DATA ACTUAL VALUES 2 This PAGE includes the electrical variables values at the latest trip made by IPR-D; these variables can be displayed immediately after the trip. LAST TRIP DATA For example: After the overcurrent trip, the ground current can be displayed.

  • Page 36: Actual Values 4: Maintenance Data

    It indicates the number of trips caused by the intervention of the protections. GROUND O/C TRIPS It counts the times the circuit breaker or disconnector controlled by IPR-D has tripped due to the intervention of ⇒ ground overcurrent protection. OPENING COUNTER It counts the breaker or disconnector openings.

  • Page 37: Automatic Operation

    Chapter 6: Automatic operation 6. AUTOMATIC OPERATION AUTOMATIC OPERATION CONDITION When starting the IPR-D or after 5 minutes from the last operation carried out on the front keyboard, the relay cyclically displays the following information: ground current cause of the latest intervention.

  • Page 39: Events Recorder

    Actual value 3: EVENTS] to display the last 10 events. DEFINITION OF “EVENT” AND STORING IPR-D is equipped with an Event recorder in which the following data are stored: • intervention of protection or alarm due to ground overcurrent, •...

  • Page 41: Troubleshooting

    (on the back of the relay). Incorrect displaying ground 1. Measure the current input in the current reading. terminal of IPR-D by using a clamp meter. 2. Check that the CT primary current Page 2 of Setpoint has been correctly entered and Wiring diagram stored in Setpoint Page 2.

  • Page 43: Warranty

    Chapter 9: Warranty Warranty ORION ITALIA warrants that the materials and the labouring of every relay have no faults with normal use and working conditions for a period of 12 months starting from the date of shipping from the manufacturer.

  • Page 45: Appendix A – Tables And Time-Current Curves

    IAC Short time IAC Normally inverse IAC Very inverse IAC Extremely inverse IEC/BS 142 CURVES IEC Short time IEC A Normally inverse IEC B Very inverse IEC C Extremely inverse CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 46: Ansi Curves

    1.097 0.982 0.703 0.597 274.71 60.014 26.165 9.891 5.519 3.711 2.782 2.236 1.885 1.646 1.474 1.054 0.895 366.28 80.018 34.887 13.188 7.359 4.948 3.709 2.981 2.514 2.194 1.965 1.405 1.194 CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 47: Iac Curves

    1.060 0.926 0.571 0.417 278.12 50.964 22.474 9.087 5.333 3.686 2.789 2.233 1.858 1.590 1.389 0.856 0.626 370.83 67.952 29.966 12.116 7.111 4.915 3.718 2.977 2.477 2.120 1.853 1.142 0.834 CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...

  • Page 48: Iec Curves

    1.000 0.808 0.357 0.201 571.43 96.000 40.000 15.000 8.000 5.000 3.429 2.500 1.905 1.500 1.212 0.536 0.301 761.90 128.00 53.333 20.000 10.667 6.667 4.571 3.333 2.540 2.000 1.616 0.714 0.401 CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...
  • Page 49 Appendix A CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...
  • Page 50 Appendix A CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...
  • Page 51 Appendix A CURRENT PROTECTION RELAY - IPR-D Manual P/N: IPR-D GBM 01/09/2006...
  • Page 53 ORION ITALIA srl Via G. Orsi 35, 29100 Piacenza [PC] – Italia Phone: ++ 39 0523 591161, Fax: ++ 39 0523 593898, Internet: www.orionitalia.com...
