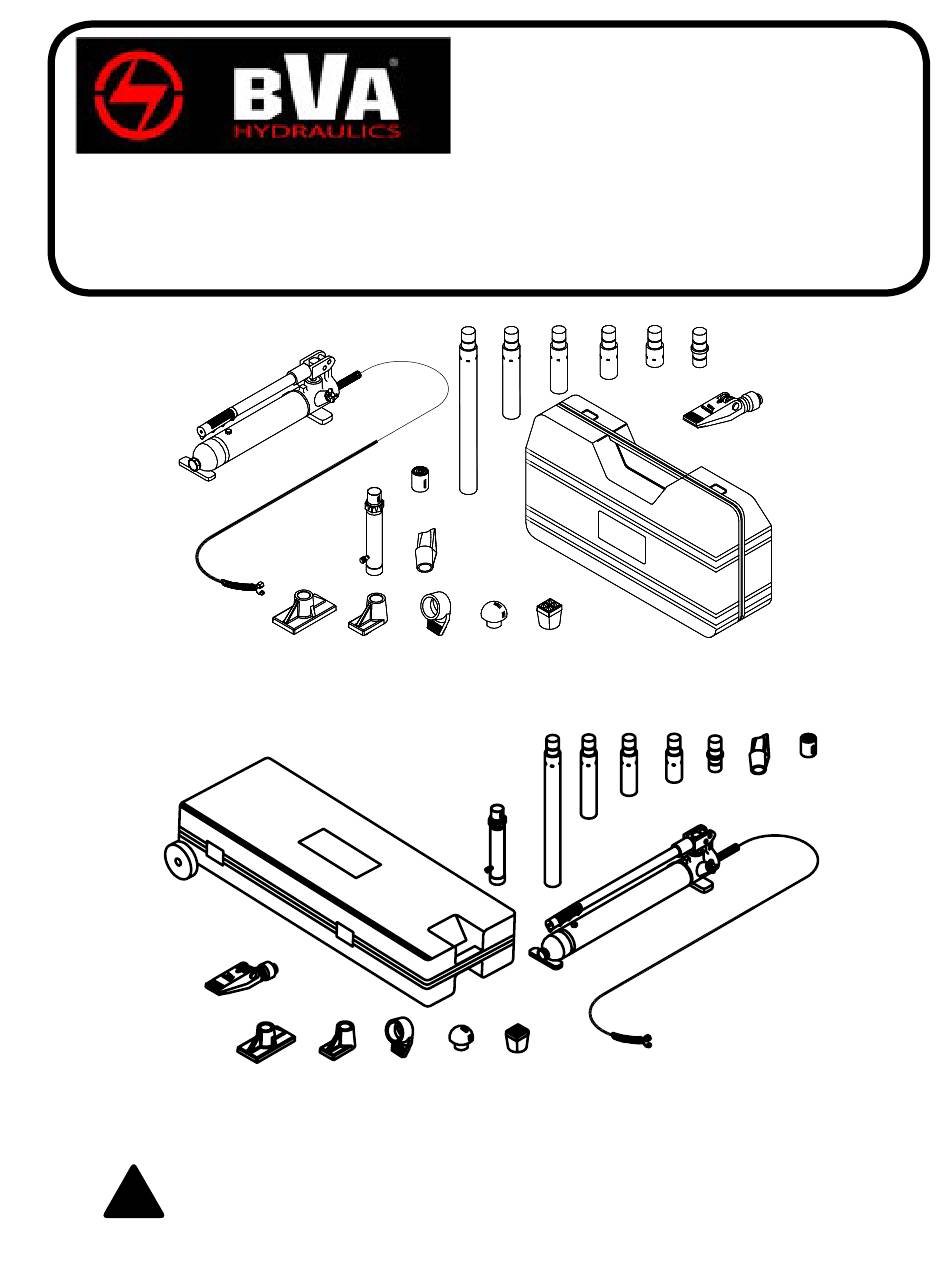

MODELS NUMBERS: J50040 & J50100
SFA Companies
E-mail: sales@bvahydraulics.com
Max. Operating Pressure 8,000 PSI
Max. Operating Pressure 10,000 PSI
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419
*
Maintenance Kits
Instruction Manual
Fax: 816-448-2142
Website: www.bvahydraulics.com
J50040-M0_042016
Model
J50040
Model
J50100
Printed in China
Advertisement
Table of Contents
Related Manuals for BVA Hydraulics J50040
Summary of Contents for BVA Hydraulics J50040
- Page 1 J50040-M0_042016 Maintenance Kits Instruction Manual MODELS NUMBERS: J50040 & J50100 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Model J50040 Max. Operating Pressure 8,000 PSI Model J50100 Max. Operating Pressure 10,000 PSI This is the safety alert symbol.
-
Page 2: Safety And General Information
A variety of attachments are included. J50040 is rated at 8,000 PSI; J50100 is rated at 10,000 PSI. Rams are rated from 4 to 10 tons respectively. - Page 3 10,000 psi. refer repairs to qualified, authorized personal. • Do not connect a ram to a pump with higher Contact BVA Hydraulics tech service for authorized pressure rating. service center. • Do not subject ram to a shock loads, a load...
-
Page 4: Specifications
SPECIFICATIONS Pump Closed Height Extended Effective Area Number of Model Capacity Capacity (in) Height (in) Attachments (psi) J50040 8,000 4 Ton 10-3/4” 15-5/8” 0.998 J50100 10,000 10 Ton 13-3/4” 19-3/4” 2.411 Basic Setup The capacity of the maintenance kit can be significantly affected by the number of attachments used and the type of load applied. -
Page 5: Operation
2. Operate pump to fully extend and retract the ram 2 or 3 1. Inspect hoses and connections daily. Replace damaged times. The objective is to force the air bubbles up hill and components immediately with BVA Hydraulics Replacement back to the pump reservoir. Parts only. -
Page 6: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following information is intended as an aid in determining if problem exists. Pump and ram should be repaired only by authorized BVA Service Center. For repair service, contact service center in your area. Symptom Possible Causes Corrective Action •... - Page 7 Load - Pressure Correlation For Model J50040 & J50100 Always monitor the force applied to workpiece by using a load cell and indicator or you may monitor pressure developed in the ram by using an inline pressure gauge, then calculate the applied force using the formula: where F = Force/ Load (lbs);...
- Page 8 Hose Assembly (with Coupler) F040-90107-K02 Oil Filler Screw F040-21000-000 Release Valve Knob F040-20000-000 Pump Assembly F040-00004-000 Blow Mold Case F0400S-85 Repair Kits Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
- Page 9 Maintenance Kit Service Parts MODEL: J50040 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the Maintenance Kit are replacement items, but are illustrated as a convenient reference of...
- Page 10 Pump Handle F040-22000-000 Hose Assembly (with Coupler) F040-90107-K02 Oil Filler Screw F100-20000-000 Pump Assembly F100-00004-000 Blow Mold Case F1000S-85 Repair Kits Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
- Page 11 Maintenance Kit Service Parts MODEL: J50100 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the Maintenance Kit are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
-
Page 12: Limited Lifetime Warranty
• Damaged components, including but not limited to bent rams, dented or crushed ram walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any warranty credit for such damaged components.
