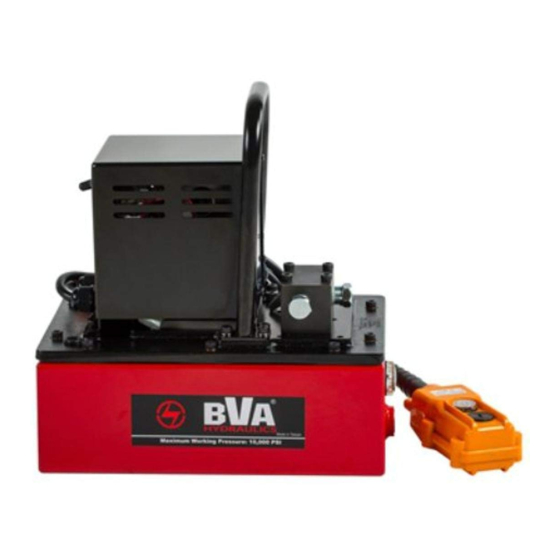

Electric Pump
Instruction Manual
MODEL: PU20DMP01B & PU20DMP01C
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419
*
Fax: 816-448-2142
E-mail: sales@bvahydraulics.com
Website: www.bvahydraulics.com
Maximum Operating Pressure 10,000 PSI
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
© Jul 2015
Printed in Taiwan
Advertisement
Table of Contents
Related Manuals for BVA Hydraulics PU20DMP01B
Summary of Contents for BVA Hydraulics PU20DMP01B
- Page 1 PU20DMP01B-M1_102016 Electric Pump Instruction Manual MODEL: PU20DMP01B & PU20DMP01C SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Maximum Operating Pressure 10,000 PSI This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
Page 2: Safety And General Information
• Do not operate this device in an explosive atmosphere or in the presence of conductive liquids. Electric Motor Power Cord Control Valve Vent Cap Reservoir Oil Output Figure 1 - Typical Dump Pump Ports (PU20DMP01B Shown) Drain Plug SPECIFICATIONS Pressure Rating Output Flow Rate Usable psi (BAR) /min (L/min) Valve... - Page 3 SPECIFICATIONS CONTINUED Model Number Type Motor Spec (V/Hz) Noise (± 4dB) Current Draw PU20DMP01B 115V, 50/60Hz PU20DMP01C 230V, 50/60Hz WARNING • Do not operate this device in an extreme temperature, • Read, understand, and follow all instructions provided with explosive atmosphere or in the presence of conductive and on this device before use.
-
Page 4: Operation
BEFORE USE 1. Check oil level, add oil if necessary. 2. Make sure system fittings and connections are tight and Read, understand, and follow all printed materials carefully leak free. before attempting to assemble or operate these pumps. 3. Place control valve lever in the middle (Neutral/Hold) position to prevent accidental lifting or moving of load. -
Page 5: Troubleshooting
2. Inspect hoses and connections daily. Replace damaged Changing Hydraulic Oil components immediately with BVA Hydraulics 1. For best results, change hydraulic oil once a year. replacement parts only. 2. Remove drain plug, tilt the pump then pour used fluid into 3. - Page 6 Electric Pump Service Parts PU20DMP01B & PU20DMP01C MODEL NUMBER: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 7 Electric Pump Service Parts PU20DMP01B & PU20DMP01C MODEL NUMBER: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
-
Page 8: Limited Lifetime Warranty
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any warranty credit for such damaged components.
