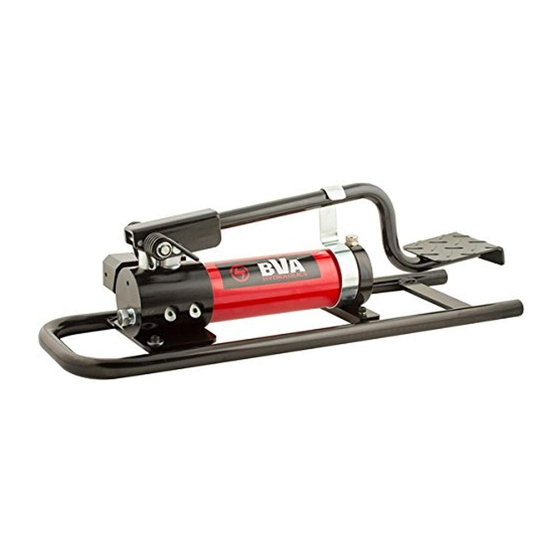

PRODUCT DESCRIPTION BVA Hydraulic Foot Pump model P570FP supplies compressed hydraulic fluid to compatible applications i.e. rams, presses, spreaders, compactors and crimping machines, anywhere that 10,000 PSI of fluid pressure is needed.
Page 3
WARNING • Study, understand, and follow all to shock loads. • Use only approved accessories and approved hydraulic fluid. instructions provided with and on this • Never attach ANY component not authorized by manufacturer. device before use. • Always ensure that the chosen application is stable to work •...
2. Verify that the product and the application are compatible. Inspect before each use. Do not use if bent, broken, leaking or damaged components are noted. 3. Replace worn or damaged parts and assemblies with BVA Hydraulics Authorized Replacement Parts only (See Replacement Parts Section). Lubricate as instructed in Maintenance Section.
For best results, change fluid once a year. 1. Inspect hoses and connections daily. Replace damaged 1. Remove vent screw and pour used fluid into a sealable components immediately with BVA Hydraulics Replacement container. Parts only. 2. Dispose of fluid in accordance with local regulations.
Page 6

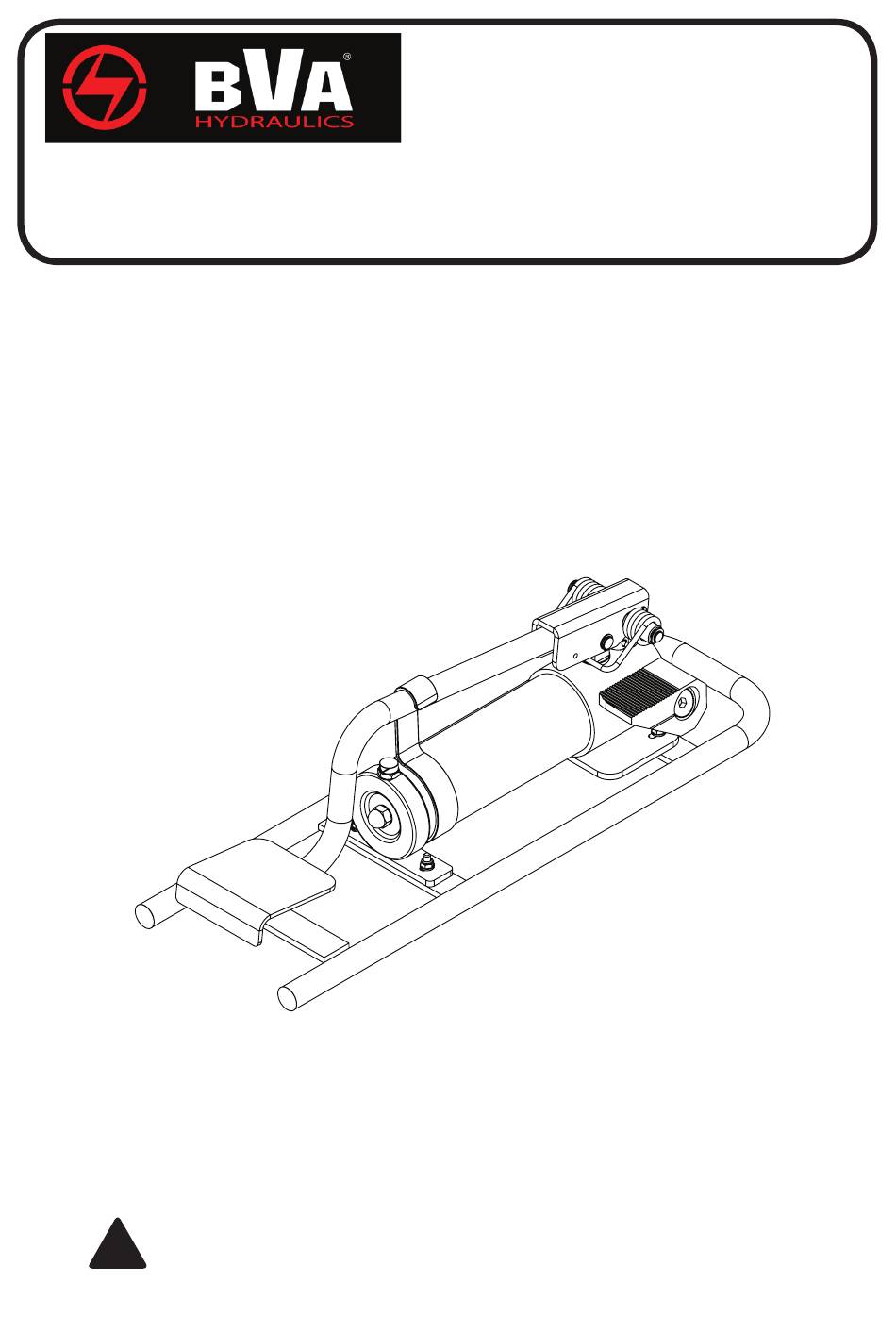

Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts Illustration Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
Page 7
Hand Pump Service Parts MODEL: P570FP SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
Page 8
Foot Pump Service Parts MODEL: P570FP SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
Page 9
Foot Pump Service Parts MODEL: P570FP SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any warranty credit for such damaged components.
