P1201-M0_122018

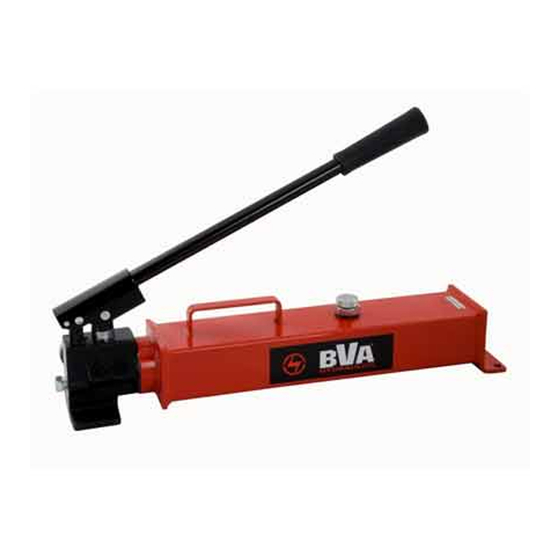

Hand Pump
Instruction Manual
MODELS: P1201, P1201S, P2301, P2301M, P4301 & P4301M
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419
*
Fax: 816-448-2142
E-mail: sales@bvahydraulics.com
Website: www.bvahydraulics.com
Maximum Operating Pressure 10,000 PSI
Models P1201 & P1201S
Model P2301M & P4301M
Models P2301 & P4301
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Printed in Taiwan
Advertisement
Table of Contents
Related Manuals for BVA Hydraulics P4301M
Summary of Contents for BVA Hydraulics P4301M
- Page 1 P1201-M0_122018 Hand Pump Instruction Manual MODELS: P1201, P1201S, P2301, P2301M, P4301 & P4301M SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Maximum Operating Pressure 10,000 PSI Models P1201 & P1201S Model P2301M &...
-
Page 2: Safety And General Information
Reservoir Figure 1 - Model P1201 & P1201S Components Figure 2 - Models P2301 & P4301 Components Control Valve Lever Oil Ports (3/8” -18NPTF) Carrying Handle Handle 4-way Control Valve Vent Screw Reservoir Figure 3 - Model P2301M, P4301M Components... -
Page 3: Specifications
32.3 0.81 P4301 Double Speed S/A 22.87” x 5.31” x 7.68” 37.6 3.74 P4301M Double Speed D/A 26.34” x 5.32” x 7.68” 42.2 WARNING • Study, understand, and follow all • Never attempt to disconnect hydraulic connections under instructions provided with and on this pressure. -
Page 4: Before Use
Pull vent plug stem upward before use, press down when moving or storing the pump. (refer to Figure 4) B) For models P2301, P2301M, P4301 & P4301M: Turn the top cap of the vent screw counter-clockwise to open the vent. Turn the cap clockwise to close the vent screw when moving or storing. -
Page 5: Operation
1. Remove the threaded plug, then connect the pump to suitable counterclockwise (never more that 2 full turns). application. 5. For model P2301M & P4301M: 2. Ensure the oil level is correct and the system fittings and Use the control valve lever to control the direction of hydraulic connections are leak free before operating the pump. -
Page 6: Maintenance
MAINTENANCE Changing Hydraulic Fluid For best results, change fluid once a year. 1. Inspect hoses and connections daily. Replace 1. Remove vented oil filler plug/screw and drain used fluid damaged components immediately with BVA Hydraulics into a sealable container. Replacement Parts only. 2. Dispose of fluid in accordance with local regulations. 2. Tighten connections as needed. Use pipe thread 3. Fill with a good quality hydraulic jack oil as sealing compound when servicing connections. -
Page 7: Parts Illustration
Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts Illustration Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only. -
Page 8: Parts List
Hand Pump Service Parts MODEL: P1201S SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. - Page 9 Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts Illustration Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
- Page 10 Hand Pump Service Parts MODEL: P1201 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 11 Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts Illustration Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
-
Page 12: Description Qty
Hand Pump Service Parts MODEL: P2301 & P4301 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. - Page 13 Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts Illustration Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
- Page 14 Hand Pump Service Parts MODEL: P2301 & P4301 Base SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 * Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts List Item Part Number Description Base...
- Page 15 Hand Pump Service Parts MODEL: P2301M & P4301M SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 * Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts Illustration...
- Page 16 Hand Pump Service Parts MODEL: P2301M & P4301M SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 * Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts List Part Number for Model:...
- Page 17 Hand Pump Service Parts MODEL: P2301M & P4301M Base SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 * Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts Illustration...
- Page 18 Hand Pump Service Parts MODEL: P2301M & P4301M Base SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 * Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts List Item...
-
Page 19: Limited Lifetime Warranty
This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not performed by BVA Hydraulics or one of its authorized personnel), improper fluid use, or use of the product in any manner for which the product was not intended or the use of which is not in accordance with the instructions or warnings provided with the product. - Page 20 Note Page Contact: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. Tel:(888)332-6419 Fax:(816) 448-2142 E-Mail:sales@bvahydraulics.com BVA Website: http://www.bvahydraulics.com...
