MODEL: PE60M3N06G & PE60M4N06G
SFA Companies
E-mail: sales@bvahydraulics.com
Maximum Operating Pressure 10,000 PSI
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419
*

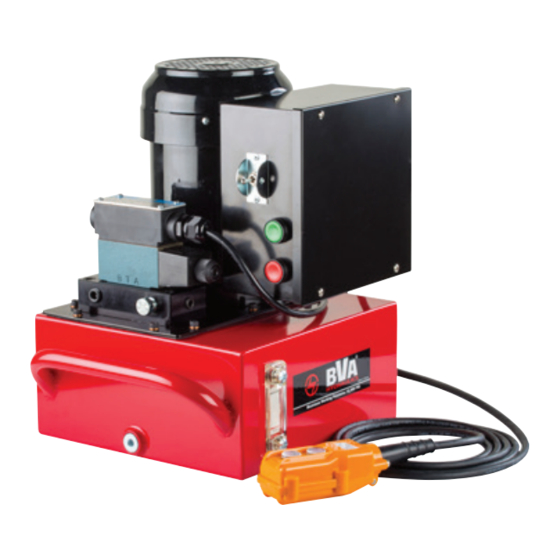

Model PE60M3N06G
Electric Pump
Instruction Manual
Fax: 816-448-2142
Website: www.bvahydraulics.com
PE60M3N06G-M0_022016
Printed in Taiwan
Advertisement
Table of Contents
Related Manuals for BVA Hydraulics PE60M3N06G
Summary of Contents for BVA Hydraulics PE60M3N06G
- Page 1 PE60M3N06G-M0_022016 Electric Pump Instruction Manual MODEL: PE60M3N06G & PE60M4N06G SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Maximum Operating Pressure 10,000 PSI Model PE60M3N06G This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
Page 2: Safety And General Information
SAFETY AND GENERAL INFORMATION Save these instructions. For your safety, read and understand the information contained within. The owner and operator shall have an understanding of this product and safe operating procedures before attempting to use this product. Instructions and safety information shall be conveyed in operator's native language before use of this product is authorized. -
Page 3: Specifications
Model Number Usable (psi) /min) Valve Motor Weight (for use w/ Valve Motor Func- Voltage w/Oil single acting Type (hp) Capacity tion (lbs) cylinder) (gal) Stage Stage Stage Stage 3-way PE60M3N06G 3-position 600- 421- Hold/ 10,500 98-122 4-way, PE60M4N06G 3-position... - Page 4 WARNING • Read, understand, and follow all instructions provided with • Do not operate this device in an extreme temperature, and on this device before use. explosive atmosphere or in the presence of conductive • All WARNING statements must be carefully observed to liquids.
-
Page 5: Before Use
BEFORE USE 1. Check oil level, add oil if necessary. 2. Make sure system fittings and connections are tight and Read, understand, and follow all printed materials carefully leak free. before attempting to assemble or operate these pumps. 3. Place control valve lever in the middle (Neutral/Hold) position to prevent accidental lifting or moving of load. -
Page 6: Troubleshooting
2. Inspect hoses and connections daily. Replace damaged Changing Hydraulic Oil components immediately with BVA Hydraulics 1. For best results, change hydraulic oil once a year. replacement parts only. 2. Remove drain plug, tilt the pump then pour used fluid into 3. - Page 7 Electric Pumps Service Parts PE60M3N06G & PE60M4N06G INCLUDES MODEL NUMBER: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 8 Electric Pumps Pump Assembly PART: E35-1-2000-102 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 9 Electric Pumps Pump Piston Set E30-4-4000-105 PART: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 10 Electric Pumps Gear Pump Assembly E15-4-6030-103 PART: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 11 Electric Pumps Safety Valve Set E05-4-8000-106 PART: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
-
Page 12: Limited Lifetime Warranty
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any warranty credit for such damaged components.
