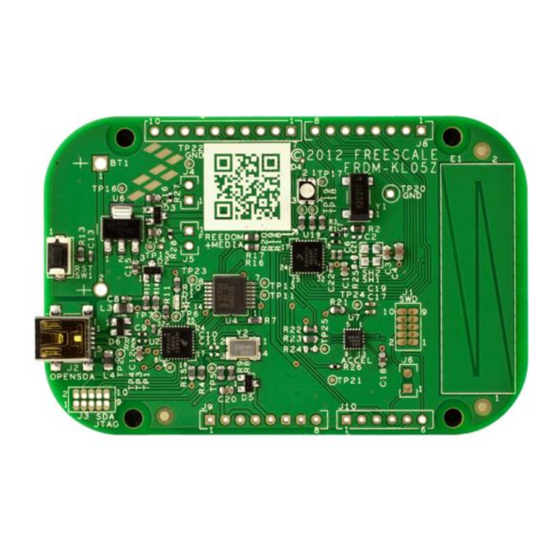

Freescale Semiconductor FRDM-KL05Z User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FRDM-KL05Z User's Manual
2013-01-29
Rev. 1.0
Freescale Semiconductor, Inc.
FRDMKL25ZUM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRDM-KL05Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Freescale Semiconductor FRDM-KL05Z

Summary of Contents for Freescale Semiconductor FRDM-KL05Z

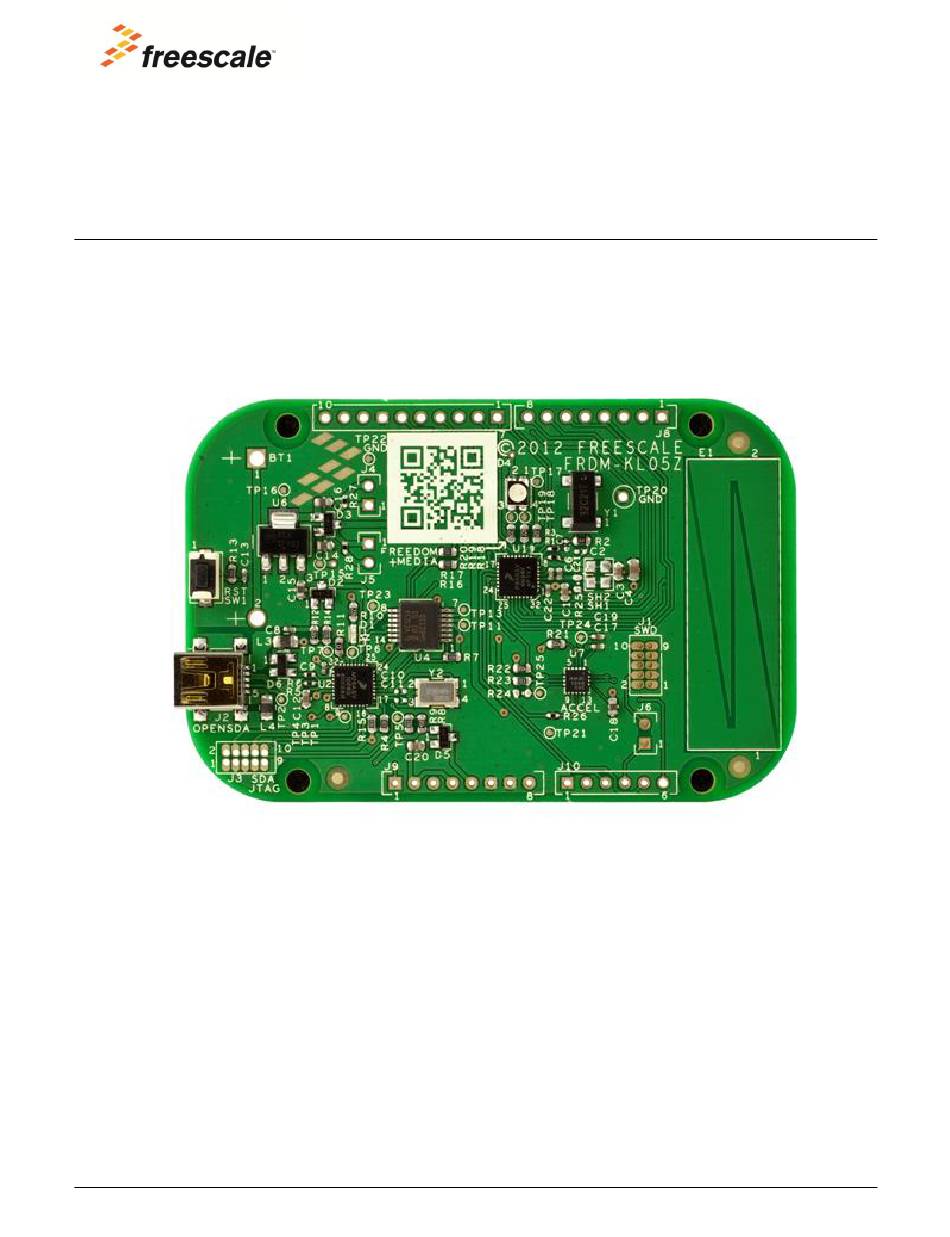

  • Page 1 FRDM-KL05Z User's Manual 2013-01-29 Rev. 1.0 Freescale Semiconductor, Inc. FRDMKL25ZUM...

  • Page 2: Table Of Contents

    Table of Contents 1 Overview ..............................3 2 Reference Documents ..........................3 3 Getting Started ............................3 4 FRDM-KL05Z Hardware Overview ....................4 5 FRDM-KL05Z Hardware Description ....................5 5.1 Power Supply..................................5 5.2 Serial and Debug Adapter (OpenSDA) ........................7 5.2.1 Debug Interface ....................................

  • Page 3: Overview

    ARM® Cortex™-M0+ core. FRDM-KL05Z can be used to evaluate the KL04 and KL05 Kinetis L series devices. It features a MKL05Z32VFM4, a KL0 family device boasting a max operating frequency of 48MHz, 32KB of flash, and a multitude of analog and digital peripherals.

  • Page 4: Frdm-Kl05Z Hardware Overview

    - CMSIS-DAP interface (new ARM standard for embedded debug interface) - Data logging application Figure 1 shows a block diagram of the FRDM-KL05Z design. The primary components and their placement on the hardware assembly are pointed out in Figure 2.

  • Page 5: Frdm-Kl05Z Hardware Description

    5 FRDM-KL05Z Hardware Description 5.1 Power Supply There are multiple power supply options on the FRDM-KL05Z. It can be powered from the USB connector, the V pin on the I/O header, an on-board coin cell battery, or an off-board 1.71-3.6V supply from the 3.3V pin on the I/O header.
  • Page 6 Coin cell battery supply voltage. Sources power to the P3V3 supply P3V3_BATT rail through a back drive protection Schottky diode. Main supply rail for the FRDM-KL05Z assembly. May be sourced from P3V3 P3V3_VREG, P3V3_BATT, or directly from the I/O headers (J9 pin 2) KL05Z MCU supply.

  • Page 7: Serial And Debug Adapter (Opensda)

    PCB that connects J6 pin 1 to J6 pin 2. This will disconnect the SWD_CLK pin to the KL05Z so that it will not interfere with the communications to an off-board MCU connected to J1. FRDMKL25ZUM FRDM-KL05Z User's Manual Page 7 of 13...

  • Page 8: Virtual Serial Port

    USB host and this serial interface on the KL05Z. 5.3 KL05Z Microcontroller The target microcontroller of the FRDM-KL05Z is the MKL05Z32VFM4, a Kinetis L series device in a 32 QFN package. The KL05Z MCU features include:  32-bit ARM Cortex-M0+ core...

  • Page 9: Clock Source

    The Kinetis KL0 microcontrollers feature an on-chip oscillator compatible with three ranges of input crystal or resonator frequencies: 32-40 kHz (low freq. mode), 3-8 MHz (high freq. mode, low range) and 8-32 MHz (high freq. mode, high range). The KL05Z32on the FRDM-KL05Z is clocked from a 32.768 kHz crystal.

  • Page 10: Capacitive Touch Slider

    Three PWM-capable signals are connected to a red, green, blue LED, D4. The signal connections are shown in Table 5 below. Table 5. RGB LED Signal Connections RGB LED KL05Z32 Red Cathode PTB8 Green Cathode PTB9 Blue Cathode PTB10 FRDMKL25ZUM FRDM-KL05Z User's Manual Page 10 of 13...

  • Page 11: Input/Output Connectors

    The I/O connector pin names are given the same name as the KL05Z GPIO pin name connected to it, where applicable. Note that all pinout data is available in spreadsheet format in FRDM-KL05Z Pinouts. See the Reference Documents section for details.

  • Page 12: Arduino Compatibility

    I/O headers on the Arduino Revision 3 (R3) standard. Refer to the FRDM-KL05Z Pinouts spreadsheet for a compatibility chart showing how all the functions of the KL05Z signals on the I/O connectors map to the pin functions available on the Arduino Uno R3.
  • Page 13 ColdFire, C_Ware, Energy Efficient Solutions logo, Kinetis, mobileGT, PowerQUICC, Processor Expert, QorIQ, Qorriva, StarCore, Symphony, and VortiQa are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. Airfast, BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, MadniV, MXC, Platform in a Package, QorIQ Qonverge, QUICC Engine, Ready Play, SafeAssure, SMARTMOS, TurboLink, Vybrid, and Xtrinsic are trademarks of Freescale Semiconductor, Inc.
