7. DIP Switch Settings

• Decide whether weekday/weekend (5-2) or individual (7) day programming
is required, and set the DIP switches in the correct position on the rear of
the unit. A reset will be required after changing the DIP switch positions.

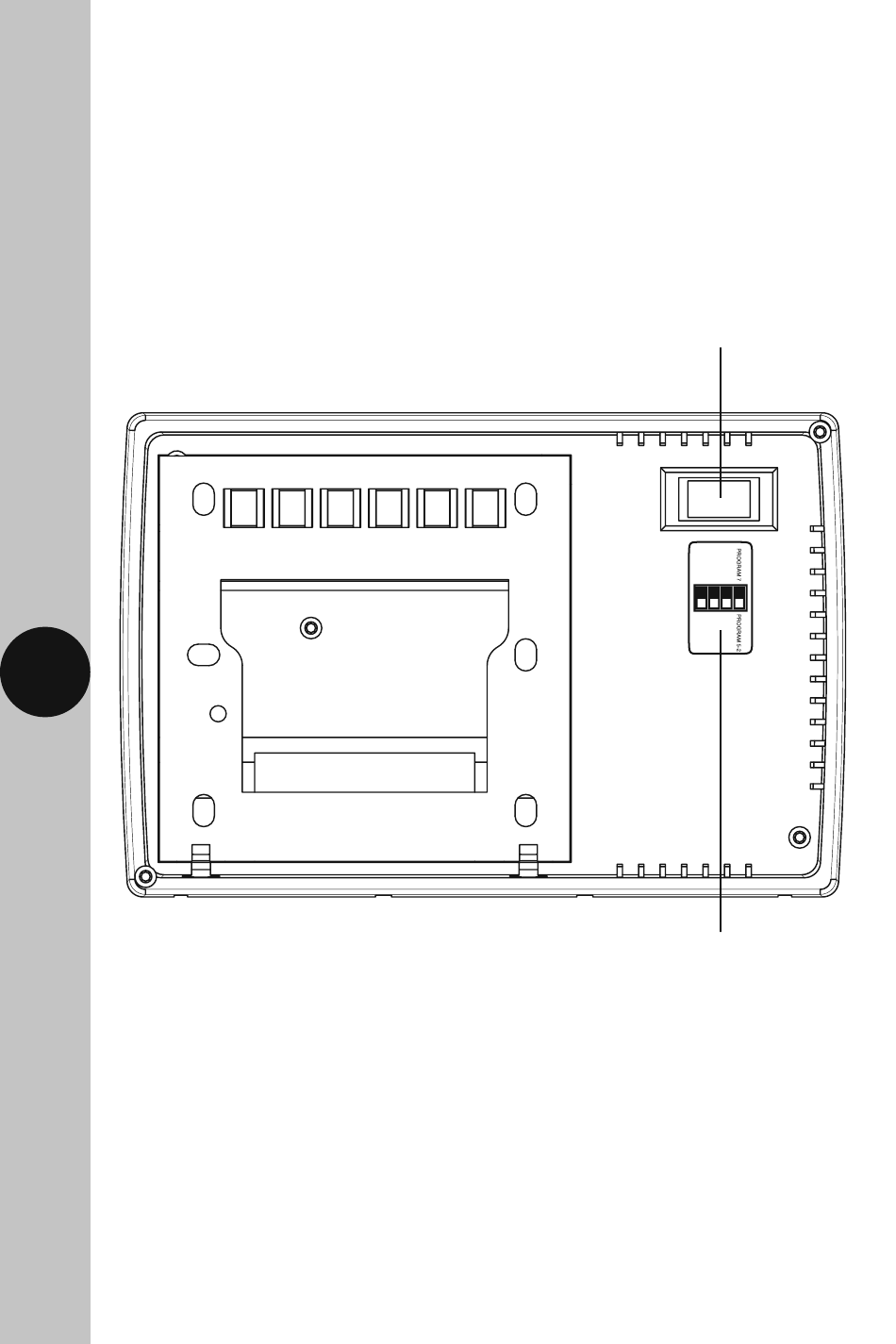

TRT034N Rear of Unit
6
DIP switches for 5-2
or 7 day Programming
DIP switch position label
