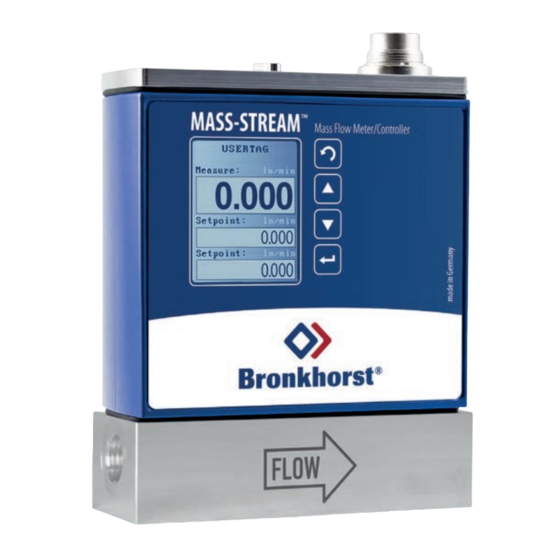

BRONKHORST MASS-STREAM D-6400 Quick Start Manual
Mass flow meter/controller
Hide thumbs
Also See for MASS-STREAM D-6400:
- Instruction manual (51 pages) ,
- User manual (8 pages) ,
- Manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for BRONKHORST MASS-STREAM D-6400
Summary of Contents for BRONKHORST MASS-STREAM D-6400

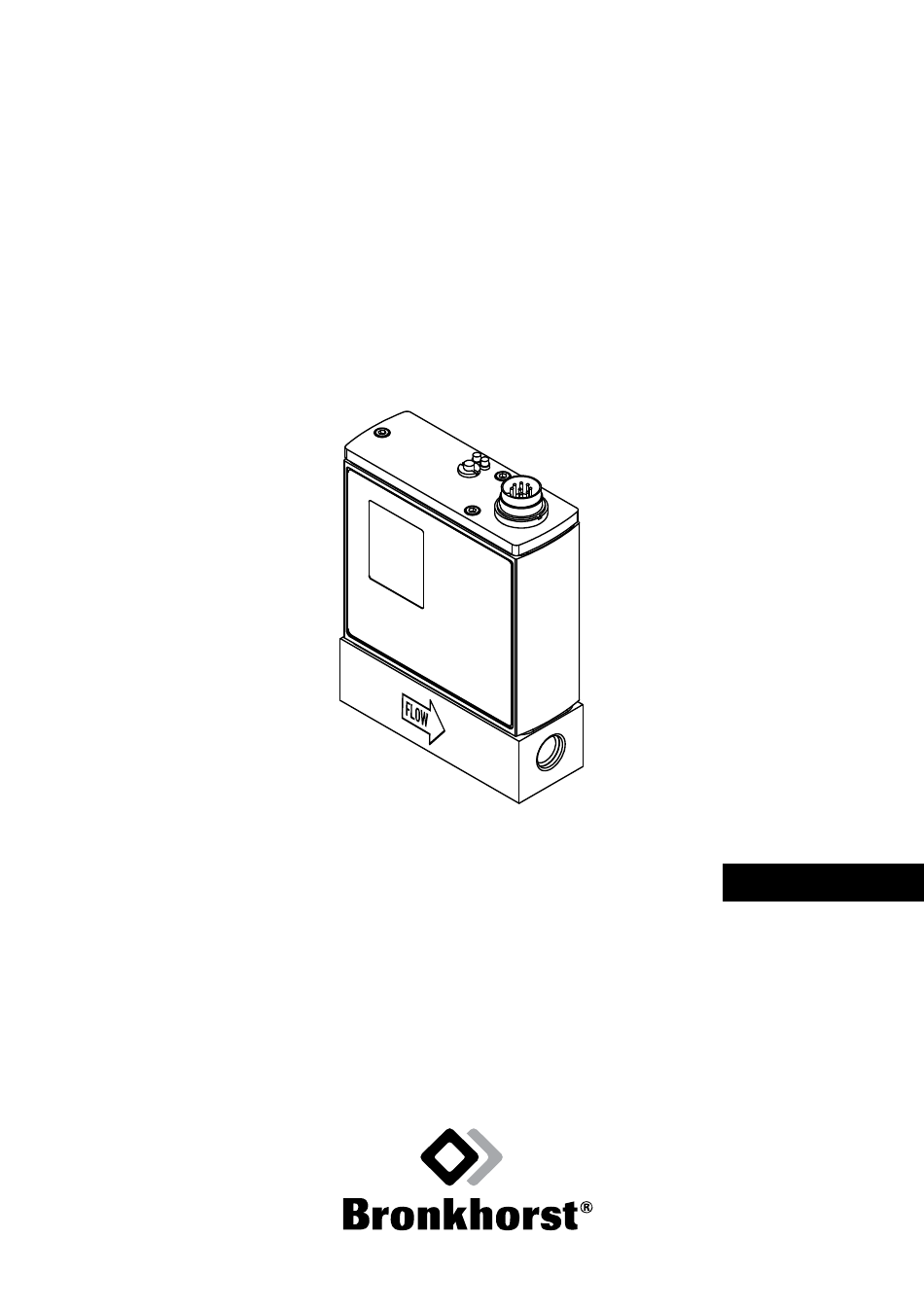

- Page 1 MASS-STREAM™ D-6400 Mass Flow Meter/Controller Quick Start Guide English Doc. no.: 9.17.160 rev. C Date: 16-02-2023...
- Page 2 Complete documentation For a comprehensive instruction manual, hook-up diagrams and other documentation about the MASS-STREAM™ D-6400, visit the Bronkhorst® product pages: www.bronkhorst.com/downloads (or scan the QR code) Intended use The MASS-STREAM™ D-6400 has been developed to measure and/or control mass flow rates of clean, dry, non-corrosive and non-toxic gases in a fluid system.
- Page 3 Product overview 1. Fluid inlet 2. Display/buttons (optional) 3. Fieldbus connector(s) (optional) 4. Status LED and multifunctional switch 5. Power & signal connector (8DIN) 6. Serial number label 7. Fluid outlet Installation · Verify that the power supply has sufficient capacity to install the instrument into the network.
- Page 4 Configuration Display menu FlowSuite If the instrument is equipped with a display: After installing the FlowSuite software „ Set functions and parameters using the application, establish connection. „ display menu and navigation buttons. Set functions and parameters using the installed software application. The complete list of menu entries, and instructions how to changing the default password (recommended) is available for download (doc.
- Page 5 Powering up · Check leak tightness of fluid system before applying full operating pressure. · For reliable operation, make sure fluid stream is uncontaminated. 1. Power up 2. Pressurize fluid system 3. Green indication LED: ready to use!
- Page 6 (or scan the QR code) Disposal If you are a customer within the European Union and wish to dispose of Bronkhorst® equipment bearing the symbol of a crossed out waste disposal bin, Bronkhorst can take care of proper dismantling, recycling and/or reuse. Just return the item(s) following the return instructions on our website;...
