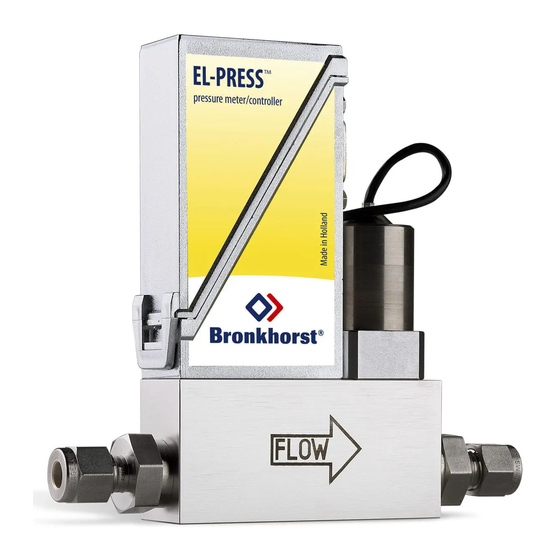

BRONKHORST EL-PRESS Series Instruction Manual

Digital pressure meters and controllers
Hide thumbs Also See for EL-PRESS Series:
Table of Contents

Advertisement

Quick Links

Instruction Manual
EL-PRESS™ series
Digital Pressure Meters and Controllers
Doc. no.: 9.17.101 rev. I
Date: 23-09-2020
ATTENTION
Please read this document carefully before installing and operating the product.
Not following the guidelines could result in personal injury and/or damage to the equipment.
