Clas Ohlson CX-90 Manual

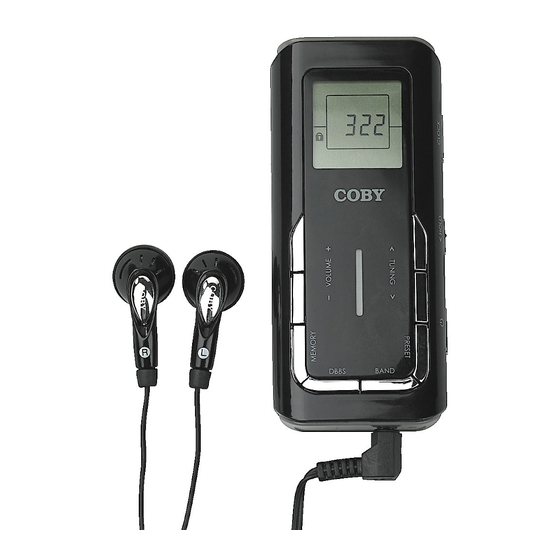

Miniradio with Digital Display
Art.no. 38-3297 Model CX-90
Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images
and any necessary changes made to technical data. If you have any questions regarding technical problems please contact Customer Services.
Operation
1. LCD display
2. Volume control (+/-)
3. Memory
4. DBBS (on/off)
5. AM/FM band selector
6. Preset stations
7. Tuner
8. Clock
9. Lock (on/off)
10. Power button
11. Headphone outlet
12. Battery cover
4 5 6 7
FM
I06.8
1
MHz
VOL
0 16
12
2
3
DBBS BAND
11
Turning on the radio
1. Check that the power button is in the off position.
2. The time should be displayed when the radio is turned off.
3. Turn on the radio using the power button [ON/OFF] (10).
Manual and auto-tuning
1. Select AM or FM by pressing [BAND SELECTOR] (5).
2. Use [ >] or [< ] to manually search for stations.
3. Depress and hold [ >] or [< ] for two seconds to activate
the automatic search. When the search function begins release the
button. The search will continue until a radio station is found.
Preset memory settings
1. Select a desired radio station (refer to steps 1-3 above).
2. Press [memory] once to save the station.
3. Use [ >] or [< ] until you reach a desired available
memory slot.
for the station (you can store up to 10 stations/band).
4. Press [MEMORY] once to store the station in position.
5. To listen to any one of the saved stations, press [PRESET] (6) to
select one of the stations between 1 and 10.
Setting the time
1. Make sure the radio is turned off and in the mode where
only time is displayed.
2. Depress [CLOCK] (8) for two seconds until the hour display starts
to flash.
3. Press [ >] or [< ] to adjust the hours.
GREAT BRITAIN
customer service tel: 08545 300 9799 e-mail: customerservice@clasohlson.co.uk
internet: www.clasohlson.com/uk
4 5 6 7
FM
I06.8
8
MHz
VOL
0 16
9
7
10
6
DBBS BAND
4 5
4. Press the [CLOCK] button once again to set the hours and the
minute display should begin to flash.
5. Press [ >] or [< ] to adjust the minutes.
Note: While listening to the radio the time will not be displayed.
Depress [CLOCK] (8) and the time will be display for 4 seconds.
Setting the volume
Press the volume control (+) or (-) to increase or decrease the volume
incrementally.
DBBS button
Press [DBBS] to turn the dynamic bass function on/off. "DBBS" will be
displayed on the right of the display when this function
is activated.

Lock switch

The lock switch is used to prevent buttons from being pressed
unintentionally when listening to the radio or when the device
is off. No functions can be activated/deactivated while the radio
is locked. When the radio is in locked mode the lock icon will be
shown in the display.

Headphone socket

• Prolonged exposure to high volume can damage your hearing.
• Make sure that the volume is at a low level before putting on the
headphones.
• Increase the volume gradually to the desired level.
Batteries
• The weak battery icon is shown when the battery becomes weak.
• When inserting the batteries, make sure that the polarities
correspond to the markings in the battery compartment.
Safety
• Do not expose the device to high temperatures or moisture.
• Do not expose the device to knocks/blows or place heavy objects
upon it.
• Do not use solvents for cleaning.
• Do not disassemble or try to repair the device by yourself.
Contact our Customer Services.
• Do not store the device in dusty areas.
Disposal
Follow local ordinances when disposing of this product.
If you are unsure of how to dispose of this product, please
contact your municipality.

Specifications

FM frequency range 87.3 – 108.1 MHz
AM frequency range 520 – 1.720 kHz
10 AM and 10 FM memory preset settings
Maximum output 2 x 15 mW (at 32 ohms)
(stereo headphones)
3 V DC from 2 x AAA/LR03 (1.5 V) batteries
Power supply
Size 21.5 x 47,5 x 106,5 mm (D x B x H)
Weight 70 g (for main unit)
Accessories Headphones
