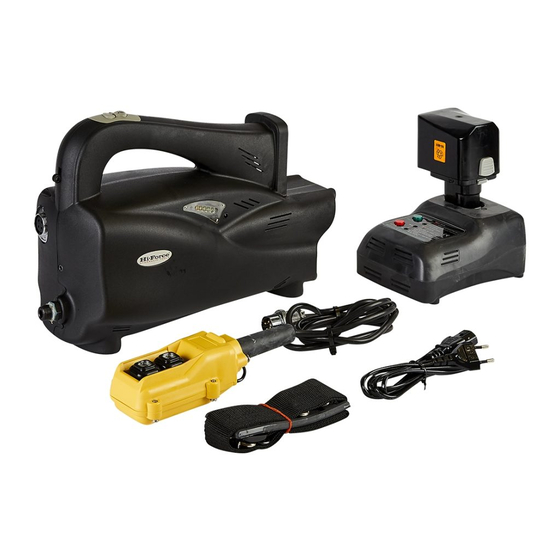

BPP107 BATTERY POWERED HYDRAULIC PUMP
OPERATING INSTRUCTIONS
001
4294
MODEL
HIGH
WIDTH
Approved by:-
BP12:(14.4V Ni-MH battery)
1.8M HOSE*1
WIRE REMOTED CONTROL*1
Page 1 of 12
TDS:-
Martin Davies
Date:08/10/14
BPP107
700 Kg/cm2
20 Kg/cm2
150 c.c.
500 c.c.
700 c.c.
14.4V
360mm
260mm
170mm
7.8Kg
1409
