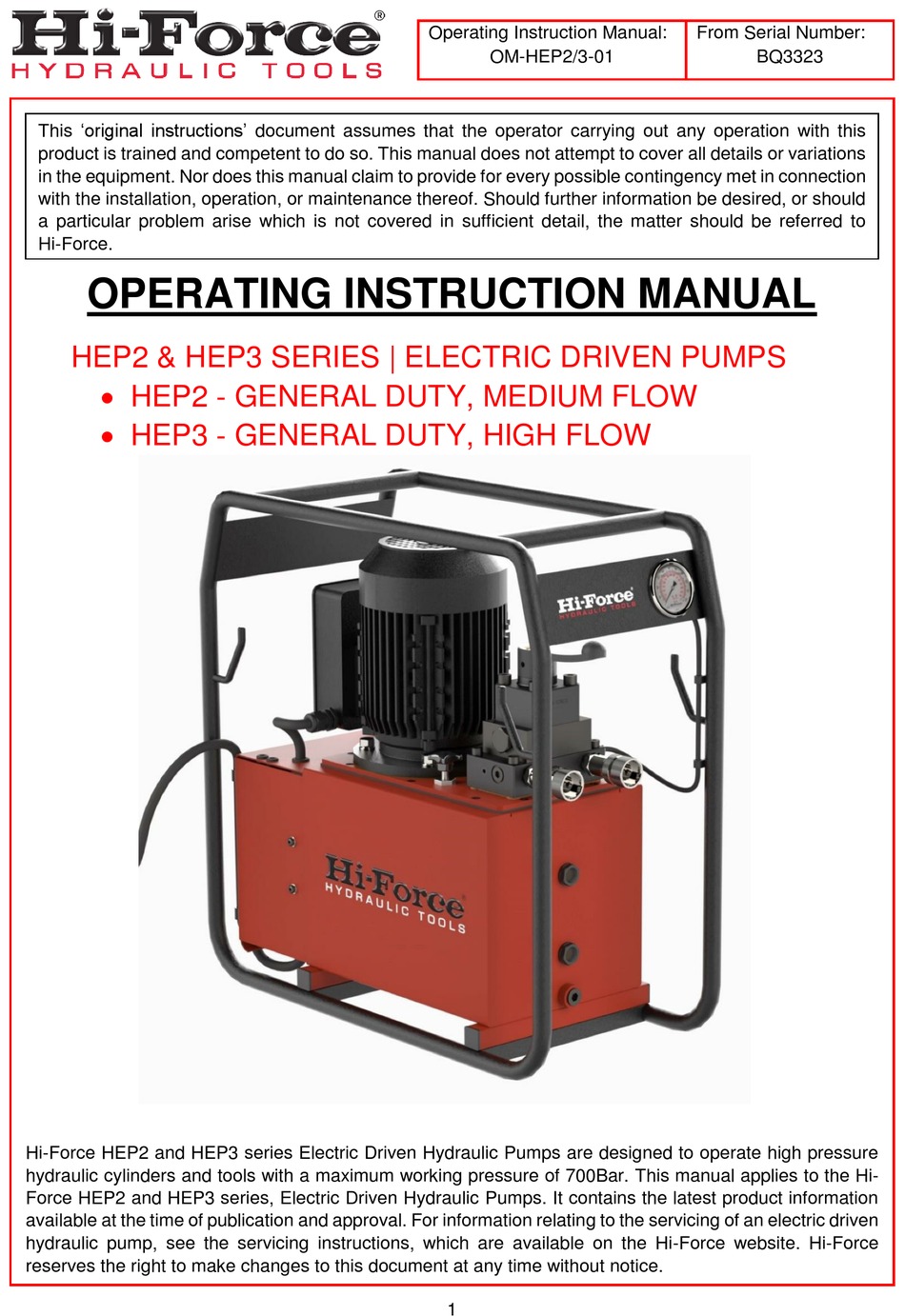

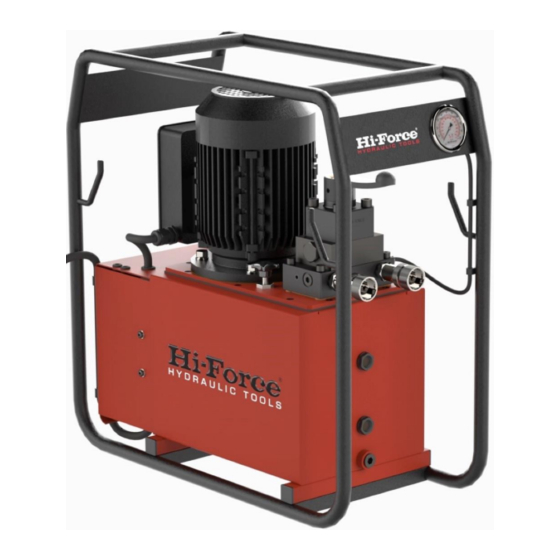

OPERATING INSTRUCTION MANUAL
HEP2 & HEP3 SERIES | ELECTRIC DRIVEN PUMPS
HEP2 - GENERAL DUTY, MEDIUM FLOW
HEP3 - GENERAL DUTY, HIGH FLOW
Hi-Force HEP2 and HEP3 series Electric Driven Hydraulic Pumps are designed to operate high pressure
hydraulic cylinders and tools with a maximum working pressure of 700Bar. This manual applies to the Hi-
Force HEP2 and HEP3 series, Electric Driven Hydraulic Pumps. It contains the latest product information
available at the time of publication and approval. For information relating to the servicing of an electric driven
hydraulic pump, see the servicing instructions, which are available on the Hi-Force website. Hi-Force
reserves the right to make changes to this document at any time without notice.
Operating Instruction Manual:
OM-HEP2/3-01
1
From Serial Number:
BQ3323
Advertisement
Table of Contents
Related Manuals for Hi-Force HEP2 Series
Summary of Contents for Hi-Force HEP2 Series
- Page 1 HEP2 - GENERAL DUTY, MEDIUM FLOW HEP3 - GENERAL DUTY, HIGH FLOW Hi-Force HEP2 and HEP3 series Electric Driven Hydraulic Pumps are designed to operate high pressure hydraulic cylinders and tools with a maximum working pressure of 700Bar. This manual applies to the Hi- Force HEP2 and HEP3 series, Electric Driven Hydraulic Pumps.
-
Page 2: Table Of Contents
Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 Table of Contents 1.0 Inspection upon Receipt ..............3 2.0 Safety Precautions ................3 3.0 Declaration of Incorporation / Conformity ........5 4.0 Component Identification ..............6 5.0 Installation/Setup ................8 6.0 Operation ..................11 7.0 Maintenance and Storage .............. -
Page 3: Inspection Upon Receipt
If in doubt on the correct use of any Hi-Force equipment, contact your nearest Hi-Force office or distributor. Only qualified personnel should be allowed to operate hydraulic equipment. If an operator has not been trained on high-pressure hydraulic equipment and its safe usage, consult your local Hi-Force sales office or distributor who can offer training courses for operators. - Page 4 Immediately replace any worn or damaged parts using genuine Hi-Force parts only. DO NOT remove any labels from the product. Replace any damaged or unreadable label immediately.
-
Page 5: Declaration Of Incorporation / Conformity
3.0 Declaration of Incorporation / Conformity Hi-Force declares that this product has been tested and complies with the standards set out in the relevant EU directives. The EU Declaration of Incorporation / Conformity is included as Annex A to this instruction... -
Page 6: Component Identification
Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 4.0 Component Identification Hydraulic Oil Drain Plug Adjustable Pressure Relief Valve Hydraulic Oil Level Gauge Oil Reservoir Hydraulic Service Connections * Electrical Enclosure Directional Control Valve ** Oil Filler Breather Cap 700 bar Pressure Gauge Motor *** Protective Roll Frame On/Off Switches... - Page 7 Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 Figure 4.2: Component Identification...
-
Page 8: Installation/Setup
Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 5.0 Installation/Setup 5.1 Before First Use 1. Immediately after unpacking, examine the pump for signs of transit damage and if found contact the shipping company. 2. Remove the temporary transit fitting / plate which is fitted in the position of the oil filler breather cap (11) and fit the oil filler breather cap which is packed separately. - Page 9 Once satisfied the supply is suitable, an electrical connection can be made. NOTE: Supply voltages vary from country to country. Hi-Force pumps will operate within the normal voltage tolerance ranges, but in extreme cases where they are operated for long periods at high pressures and in low voltage conditions, the motor may overheat and shut down.
- Page 10 NOTE: When longer hoses are used (especially in the case of smaller capacity Figure 5.2 cylinders), the above procedure may not remove all the air from the system. In these cases, contact your Hi-Force representative for advice on pre-filling hoses with hydraulic oil.
-
Page 11: Operation
BQ3323 6.0 Operation Hi-Force will not always be aware of what equipment this pump will be used to power. It is the responsibility of the owner and all operators to read, understand and comply with all appropriate safety warnings and operating instructions relating to the equipment being used. - Page 12 Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 6.2 Pumps with Manual Valves 1. Set the adjustable pressure relief valve (8) if required. See section 6.1 for details. 2. With all hydraulic connections and an electrical connection made turn the motor on by pressing the green ‘ON’...
-
Page 13: Maintenance And Storage
Inspect the pump for damage after each use. Change the oil every 500 working hours using high quality ISO46 hydraulic oil. Zero the pump pressure before storing. Have the pump serviced regularly by a Hi-Force authorised repair centre. -
Page 14: Specifications
Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 8.0 Specifications An average A-Weighted sound pressure level of 75dB was measured for undefined workspaces, as per EU Directive 2006/42/EC Section 1.7.4.2 (u). 8.1 HEP2 Specifications Refer to the nameplate on the pump for model identification. HEP2 │... - Page 15 Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 8.2 HEP3 Specifications Refer to the nameplate on the pump for model identification. HEP3 │ ELECTRIC DRIVEN PUMPS – GENERAL DUTY, HIGH FLOW Maximum Flow Rate Weight Model Valve Motor Capacity (litres/minute) Number Type Voltage...
-
Page 16: System Components / Accessories
Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 9.0 System Components / Accessories (Refer to the Hi-force website or latest Hi-Force catalogue, Section: System Components for further details) High Pressure Hydraulic Hoses Manifolds and Manifold Assemblies. Flow Control Valve ... -
Page 17: Troubleshooting
From Serial Number: OM-HEP2/3-01 BQ3323 10.0 Troubleshooting Hi-Force HEP2 & HEP3 electric driven hydraulic pumps should be serviced and repaired only by authorised Hi-Force repair centres. The following table gives possible causes and solutions for common problems. TROUBLESHOOTING GUIDE Problem... - Page 18 Check for correct system setup. Check functioning correctly. to pump. couplers (if fitted) for full engagement b. Pump solenoid faulty. Contact your local Hi-Force office/distributor. See cylinder/tool’s troubleshooting guide or c. Cylinder/tool fault. contact your local Hi-Force office/distributor. d. Low oil level Add oil as per section 5.2.
-
Page 19: Contact Details
Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 UK Head Office: Hi-Force Limited Prospect Way, Daventry, Northamptonshire NN11 8PL United Kingdom Tel: + 44 1327 301000 Fax: + 44 1327 706555 Email: daventry@hi-force.com... - Page 20 Operating Instruction Manual: From Serial Number: OM-HEP2/3-01 BQ3323 Hi-Force Regional Offices: Hi-Force Caspian Hi-Force Hydraulics (Asia) S.B Baku Selangor Azerbaijan Malaysia Tel: +994 12 447 4100 Tel: +603 5525 4203 Email: baku@hi-force.com Email: malaysia@hi-force.com Hi-Force Nederland BV Hi-Force Saudi Numansdorp...
