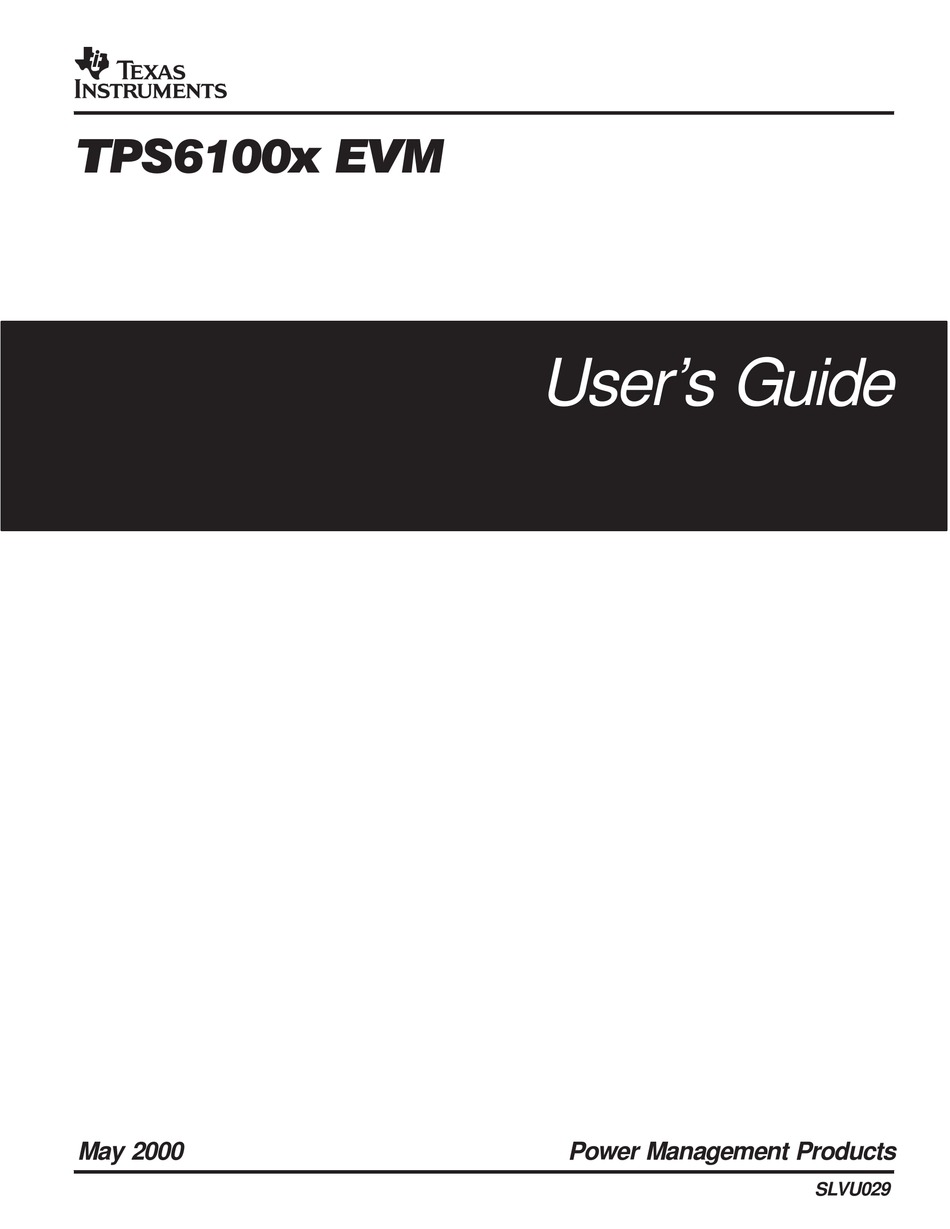

- Page 1 TPS6100x EVM User’s Guide May 2000 Power Management Products SLVU029...
- Page 2 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those pertaining to warranty, patent infringement, and limitation of liability.
- Page 3 How to Use This Manual Preface Read This First About This Manual This user’s guide describes the evaluation module (EVM) TPS6100x EVM-156. The TPS6100x family of devices is a single-cell boost converter with start-up into full load. The TPS6100x family is intended for systems with a single or dual-battery cell supply and a required output voltage between1.5 V and 3.3 V.
- Page 4 Related Documentation From Texas Instruments Related Documentation From Texas Instruments TPS6100x Single-Cell Boost Converter With Start-Up Into Full Load – data sheet (literature number SLVS279) Understanding Boost Power Stages in Switchmode Power Sup- plies (literature number SLVA061) Linear Design Seminar (literature number SLYD016)
-
Page 5: Table Of Contents
Running Title—Attribute Reference Contents Introduction ..............Schematic and Bill of Material . -
Page 7: Introduction
Chapter 1 Introduction The Texas Instruments TPS6100x are low-power single-cell boost converters. The TPS61002, TPS61003, and TPS61006 are fixed voltage versions with 1.8-V, 2.5-V and 3.3-V output voltage. The TPS61000 can be adjusted with an external voltage divider to an output voltage between 1.5 V and 3.3 V. Each of these four versions is supported with its own EVM. -
Page 9: Schematic And Bill Of Material
Chapter 2 Schematic and Bill of Material Figure 2–1. Schematic of the EVM COMP SWITCH Schematic and Bill of Material... - Page 10 Table 2–1. Bill of Material Component Value Functionality Texas Instruments: Controller-IC in the boost-converter stage TPS6100x 10-pin MSOP package 10 µH, Inductor for storing energy during on-state of the power transistor Coilcraft: DS1608C-103 Motorola: Schottky diode for rectifying current flow, works as a free-wheeling...
-
Page 11: Layout
Chapter 3 Layout Topic Page Top-Side Layout and Component Placement ....Bottom-Side Layout and Component Placement ....Layout Considerations . -
Page 12: Top-Side Layout And Component Placement
Top-Side Layout and Component Placement 3.1 Top-Side Layout and Component Placement 3.2 Bottom-Side Layout and Component Placement... -
Page 13: Layout Considerations
Layout Considerations 3.3 Layout Considerations The basic components of a boost converter topology (as shown in Figure 3–1) are placed on the top side of the EVM. These are the components which carry the high currents. The ground plane is divided into two parts that are connected to the ground pin of the device. -
Page 15: Setup Of The Evm
Chapter 4 Setup of the EVM Topic Page Setup of the EVM ..........Low-Battery Function LBI and LBO . -
Page 16: Setup Of The Evm
4.1 Setup of the EVM Figure 4–1. Setup of the EVM Voltage Meter for Oscilloscope LBO Output Voltage for Output Voltage and Output Ripple Voltage Meter for Input Voltage Power LOAD Supply – Current Meter Current Meter for Output Current for Input Current (See Note A) Important... -
Page 17: Low-Battery Function Lbi And Lbo
Low-Battery Function LBI and LBO 4.2 Low-Battery Function LBI and LBO The low battery feature is typically used to supervise the battery voltage and to indicate when the voltage goes below an adjustable threshold voltage. The threshold voltage can be adjusted by an external resistive divider connected to the low-battery input (LBI) as shown in Figure 4–2.
