Emerson FISHER T205B Instruction Manual

Instruction Manual
March 2013
Type T205B Balanced Tank Blanketing Regulator
Contents
Introduction .................................................................. 1
Specifications .............................................................. 2
Principle of Operation .................................................. 3
Installation ................................................................... 4
Startup ......................................................................... 6
Adjustment................................................................... 6
Shutdown..................................................................... 7
Maintenance ................................................................ 7
Parts List.................................................................... 11
WARNING
!
Failure to follow these instructions or
to properly install and maintain this
equipment could result in an explosion,
fi re and/or chemical contamination
causing property damage and personal
injury or death.
Fisher tank blanketing regulators must
®
be installed, operated, and maintained
in accordance with federal, state and
local codes, rules and regulations,
and Emerson Process Management
Regulator Technologies, Inc. (Regulator
Technologies) instructions.
If the regulator discharges process fl uid or
a leak develops in the system, service to
the unit may be required. Failure
to correct trouble could result in a
hazardous condition.
Call a qualifi ed service person to service
the unit. Installation, operation, and
maintenance procedures performed by
unqualifi ed person may result in improper
adjustment and unsafe operation. Either
condition may result in equipment damage

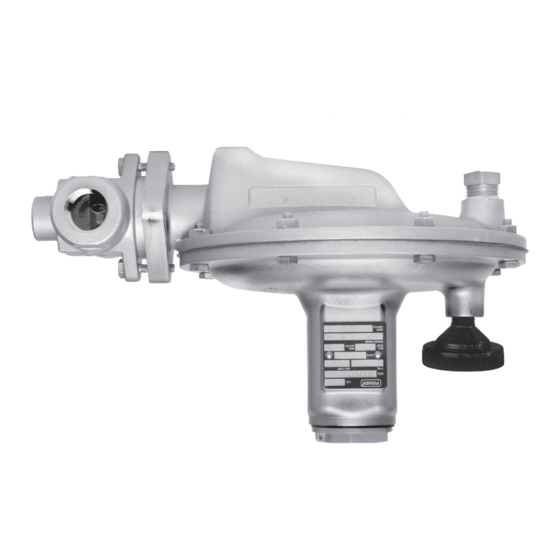

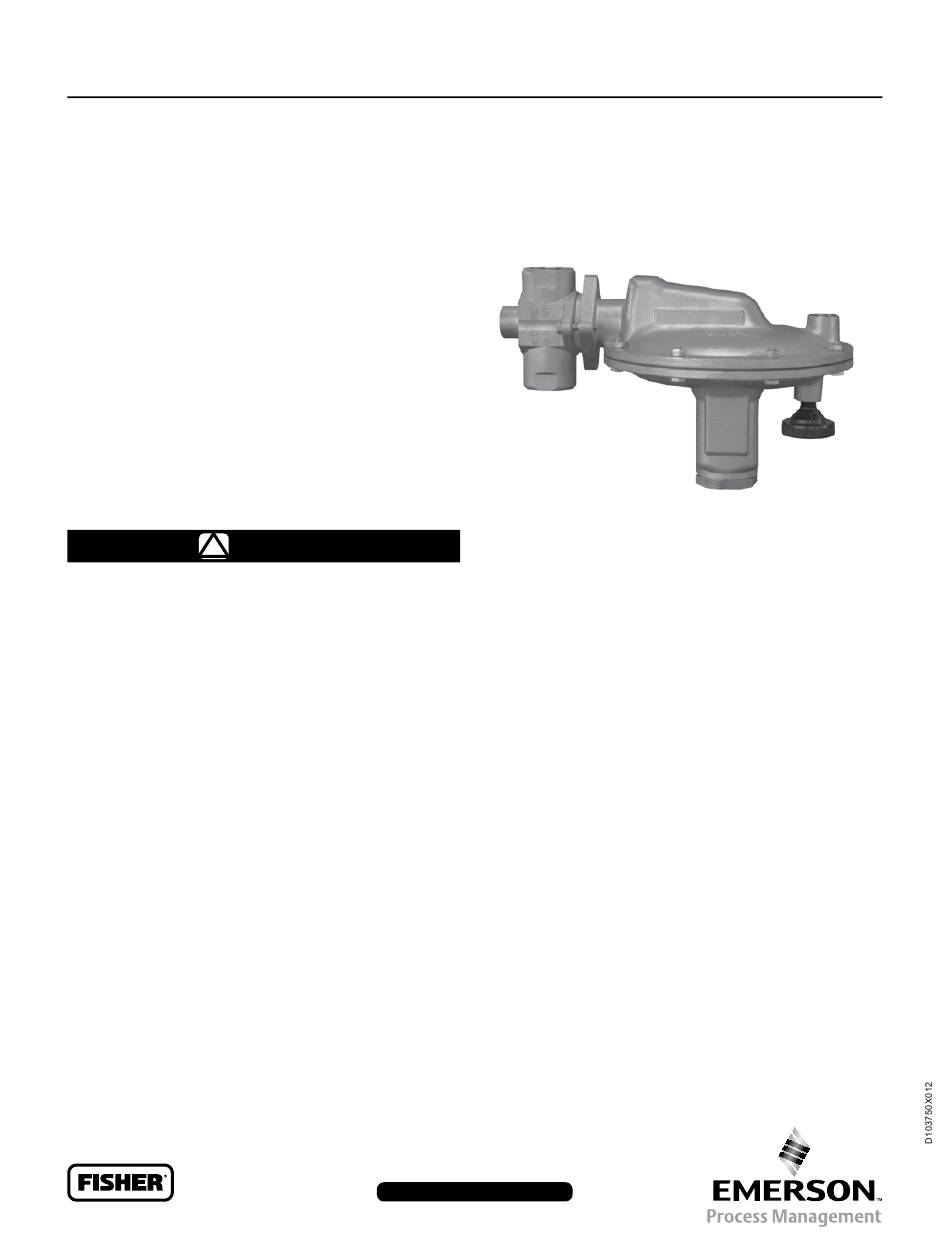

Figure 1. Type T205B Tank Blanketing Regulator
or personal injury. Only a qualifi ed person
must install or service the Type T205B tank
blanketing regulator.

Introduction

Scope of the Manual
This Instruction Manual provides instruction for
installation, startup, maintenance, and parts
ordering information for the Type T205B tank
blanketing regulator.
Product Description
The Type T205B balanced tank blanketing regulator
(Figure 1) is a direct-operated regulator with fully
balanced plug design to reduce inlet pressure sensitivity
and with large diaphragm to accurately control tank
pressure at low pressure settings on tank blanketing
systems. The regulator prevents a stored liquid
from vaporizing into the atmosphere, reduces liquid
combustibility and prevents oxidation or contamination
of the liquid by reducing its exposure to air. The
Type T205B maintains a slightly positive pressure and
thereby reduces the possibility of tank wall collapse
during pump out operation.
www.fisherregulators.com
Type T205B
