Instruction Manual
D103752X012
September 2020
T208 Series Tank Blanketing Vapor
Recovery Regulators

Table of Contents

Introduction .................................................................. 1
Specifications .............................................................. 2
Principle of Operation .................................................. 2
Installation ................................................................... 4
Startup, Adjustment and Shutdown ............................. 5
Maintenance ................................................................ 6
Parts Ordering ............................................................. 8
Parts List...................................................................... 9
▲
Failure to follow these instructions or
to properly install and maintain this
equipment could result in an explosion,
fire and/or chemical contamination
causing property damage and personal
injury or death.
Fisher™ Vapor Recovery regulators must
be installed, operated, and maintained
in accordance with federal, state and
local codes, rules and regulations, and
Emerson Process Management Regulator
Technologies Inc. (Emerson) instructions.
If the regulator discharges process
fluid or a leak develops in the system,
service to the unit may be required.
Failure to correct trouble could result in
a hazardous condition.
Call a qualified service person to service
the unit. Installation, operation and
maintenance procedures performed
WARNING

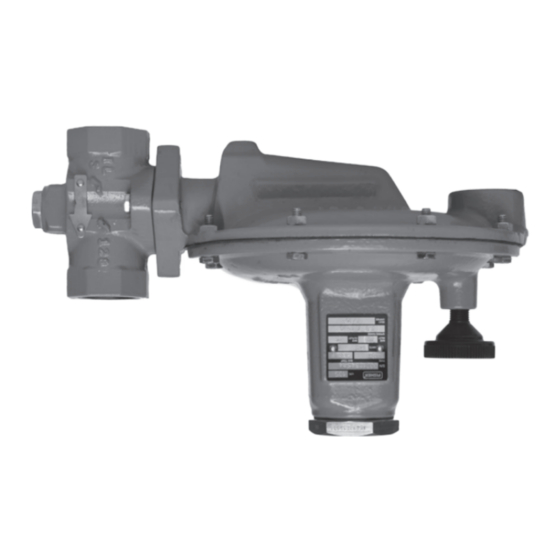

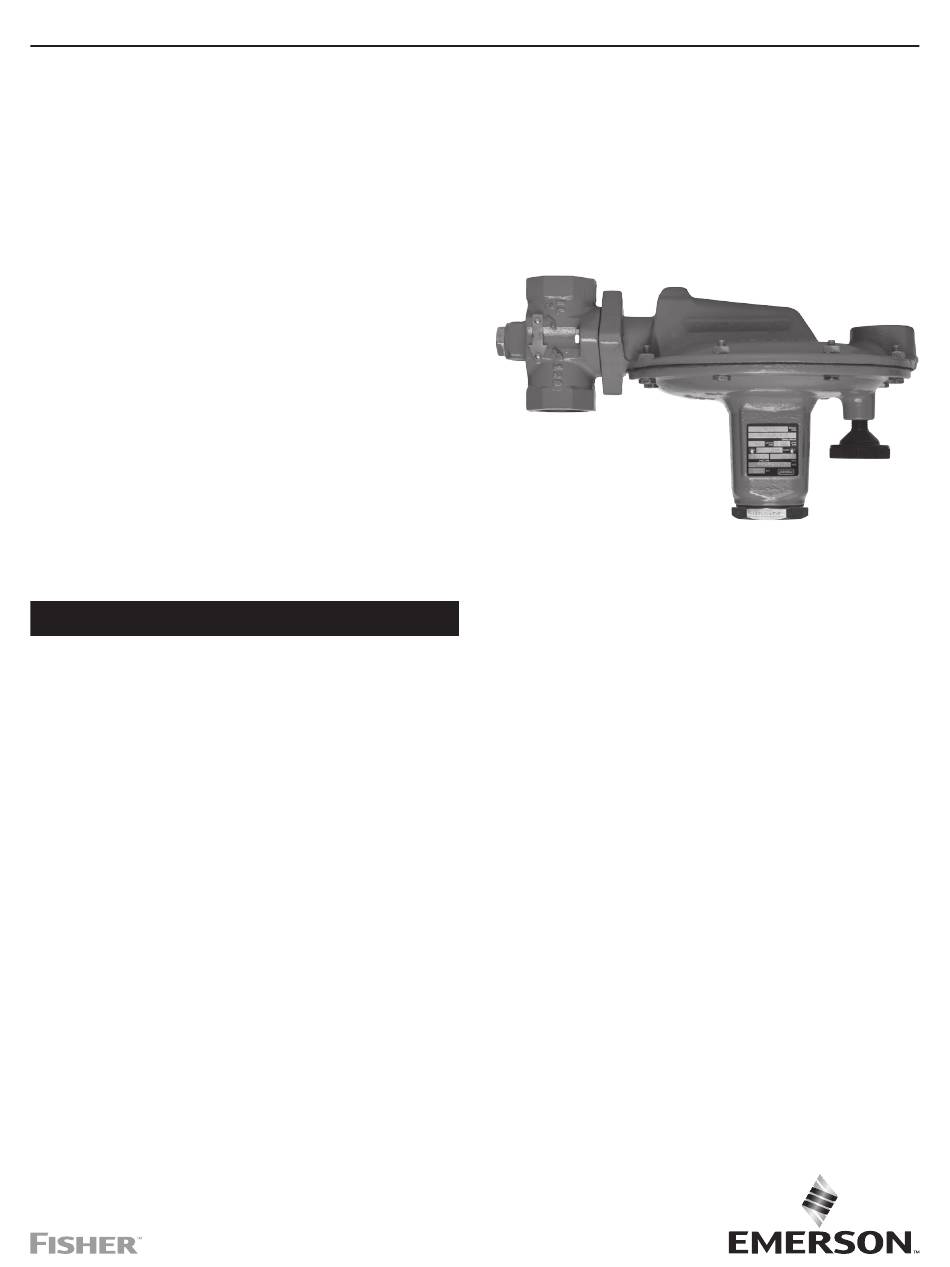

Figure 1. Type T208 Tank Blanketing Vapor Recover Regulator
by unqualified person may result
in improper adjustment and unsafe
operation. Either condition may result in
equipment damage or personal injury.
Only a qualified person shall install or
service the T208 Series vapor
recovery regulator.

Introduction

Scope of the Manual
This Instruction Manual provides instructions for
installation, startup, maintenance and parts ordering
information for the T208 Series vapor recovery
regulators. Instructions and parts list for other
equipment used with these regulators are found in
separate manuals.
T208 Series
