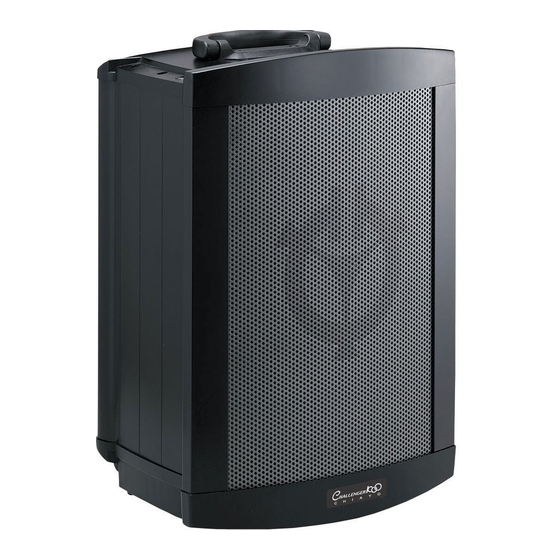

Modulized Wireless Portable Amplifier System

IF DESIGN AWARD

HKEIA AWARD

Operation manual

TAIWAN

TAIWAN GOOD

EXCELLENCE

DESIGN

Need help?

Do you have a question about the Challanger 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chiayo Challanger 1000

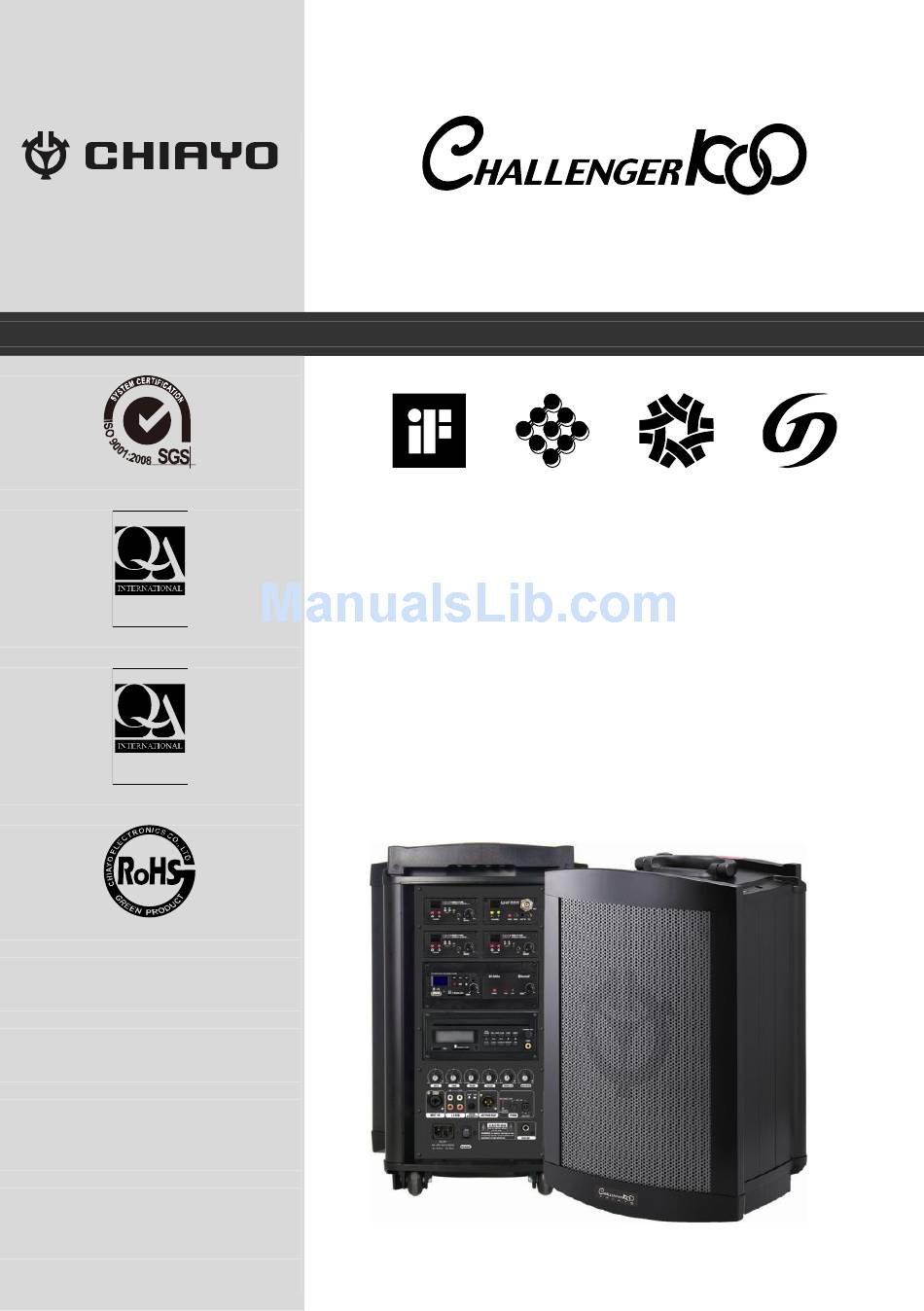

Page 1: Operation Manual
Modulized Wireless Portable Amplifier System Operation manual IF DESIGN AWARD HKEIA AWARD TAIWAN TAIWAN GOOD ISO 9001 EXCELLENCE DESIGN R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT IC: 3563A-CHALLENGER...
Page 2 Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions  Be sure to read the instructions in this section carefully before use. ...
Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 CHALLENGER 1000 (Master) A,B&D. Slot for receiver/MP3/Bluetooth module C. Slot for receiver/transmitter/MP3/Bluetooth module E&F. Slot for other modules (CD player, DVD player, MP3+Bluetooth player…) 1. Wired microphone volume control 2. Line-in volume control 3. Tape/DVD power+volume control 4.
Page 4 CHALLENGER Companion powered speaker A. Slot for receiver/MP3/Bluetooth module B. Slot for receiver/transmitter/MP3/Bluetooth module 1. Audio link input 2. Audio link output 3. Volume control 4. Speaker out (switched) 5. Speaker out (unswitched) 6. 24~32V DC input 7. Fuse 8. Power status indicator (RED) 9.
Page 5 ISO 9001｜ISO 14001｜OHSAS 18001 CHALLENGER Companion passive speaker 1. Speaker input 2. Speaker output...
Page 6 Operating procedures After unpacking the unit for the first time, please charge the unit for at least 6 hours before operation. This is absolutely necessary as the built-in rechargeable batteries might have been discharged naturally due to long shipment and storage time, even though it has been fully charged in the factory prior to shipment.
Page 7 ISO 9001｜ISO 14001｜OHSAS 18001 Wired Audio Link The CHALLENGER 1000 could be operated as MASTER as well as SLAVE. This depends on the setting of Master/Slave selector switch. However, the CHALLENGER Slave can only be operated as SLAVE. In order to operate Audio Link, you must have a CHALLENGER 1000 unit that operates as a MASTER.
Page 8 Wireless Audio Link Different from Wired Audio Link, with new SLAVE's capability of installation of receiver and transmitter modules it eliminates all cable connection and largely extends the number limit of SLAVEs. Application: For crowds of 1000 to 2000. (e.g., speeches or forums) Configuration: One Master + several SLAVEs (with receiver module built in) Application: For crowds of over 3000.
Page 9 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
Page 10 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242...
