Chiayo Challenger 1000 Operation Manual

Hide thumbs Also See for Challenger 1000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
CHIAYO ELECTRONICS CO., LTD.
http://www.chiayo.com.tw
OFFICE: 30, LANE 27, SEC.4. JEN-AL ROAD, TAIPEI, TAIWAN / TEL: 886-2-2741-5741
FACTORY: 88, CHUNG HSIAO STREET 2, CHIAYI, TAIWAN. / TEL: 886-5-271-1000
Printed in Taiwan, February 2010
E-mail: sales@chiayo.com.tw
FAX: 886-2-2752-5242
FAX: 886-5-276-7611
GOOD DESIGN
PRODUCT
IT'S VERY WELL
MADE IN TAIWAN
Design Award
HKEIA AWARD
For Outstanding Innovation
and Technology Products
GREEN PRODUCT
It has been RoHS Compliant
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Challenger 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Chiayo Challenger 1000

Summary of Contents for Chiayo Challenger 1000

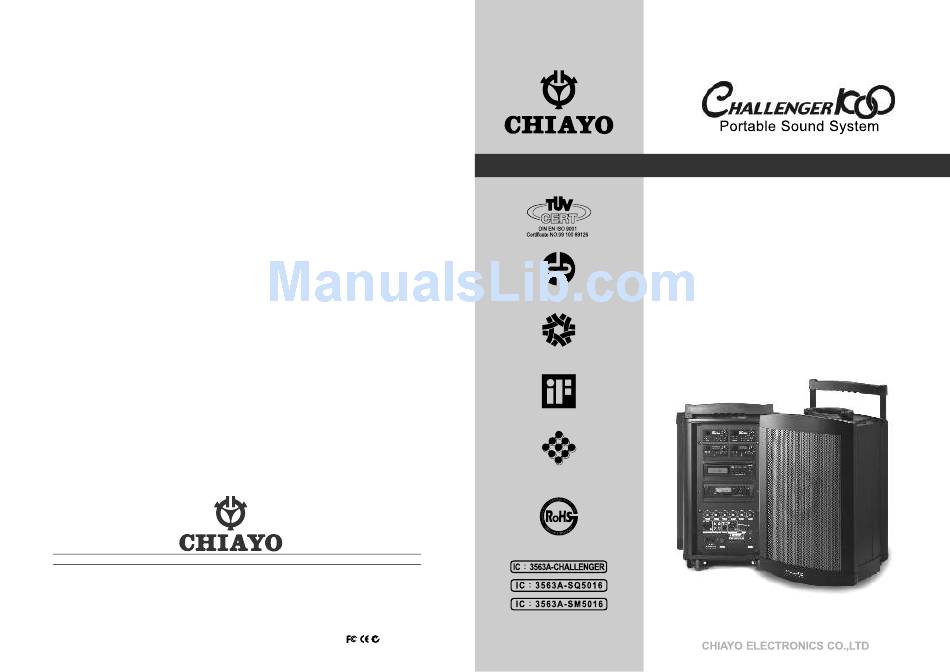

  • Page 1 HKEIA AWARD For Outstanding Innovation and Technology Products GREEN PRODUCT It has been RoHS Compliant CHIAYO ELECTRONICS CO., LTD. http://www.chiayo.com.tw E-mail: sales@chiayo.com.tw OFFICE: 30, LANE 27, SEC.4. JEN-AL ROAD, TAIPEI, TAIWAN / TEL: 886-2-2741-5741 FAX: 886-2-2752-5242 FACTORY: 88, CHUNG HSIAO STREET 2, CHIAYI, TAIWAN. / TEL: 886-5-271-1000...

  • Page 2: Optional Accessories

    2. If the battery is not recharged 72 hrs after it is completely used, it will be permanently damaged. 4. Challenger 1000 with CD / USB Player & Digital Recorder.( Fig.4 ) 3. When the battery is being charged, the internal gases will be electrolyzed into water at the negative charge, maintaining the battery’s storage abilities with no water added.

  • Page 3: Fcc Caution

    Operation of wireless microphones Challenger 1000 ( Master ) Chiayo Transmitters and Receivers have factory preset to allow immediate use after switch- ( Basic configuration ) However, please note that the transmitter Sensitivity function is dependent on application such as close proximity singing or tripod mouth speech. To avoid over-modulation and distortion, please check whether the preset sensitivity level is suitable for your particular application.

  • Page 4: Lcd Display

    CD player remote control. Application GMW-216 is compatible with any of CHIAYO's UHF 16-channel receivers and portable PA system whichever is equipped with built-in 16/100- channel wireless receiver module. Besides handheld and beltpack types, it is another stylish hands free alternative.

  • Page 5: Power On/Off Led

    Gooseneck Transmitter GMW-216(UHF) Challenger 1000 ( Master ) (Tape Deck Version ) 1. Gooseneck microphone input 2. LCD display 3. UP button a. EJECT KEY b. COUNTER 4. DOWN button c. VARIABLE SPEED CONTROL 5. SET button d. AUTO REVERSE INDICATOR e.

  • Page 6: Sd Card Slot

    Challenger 1000 ( Master ) Beltpack Transmitter SM-316(VHF) (CD / USB Player & Digital Recorder version ) Battery installation Antenna(SM-916) SM-316 use a 9V battery. To insert the battery, first open the battery compartment cover by pressing the cover downward till the door flips open...
  • Page 7 The Challenger Slave is an active ( powered ) speaker unit with built-in switching power supply as well as rechargeable batteries, complete with similar charging circuit as that of the Challenger 1000 Master unit.¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@ Battery installation It is an extended and indispensable member of the Challenger Audio Link system.

  • Page 8: Battery Installation

    The Challenger Speaker is a passive companion speaker for the Challenger 1000 series. 1. Antenna 7. Charging contacts It is for connection to the switched or unswitched speaker outs of the Challenger 1000 ( Master ) 2. Battery low indicator 8. Lavalier microphone or the Challenger Slave units.

  • Page 9: Operating Procedures

    Operating procedures After unpacking the unit for the first time, please charge the unit for about 4-5 hours before any operation. This is absolutely necessary as the built-in rechargeable battery might have been discharged naturally due to long shipment and storage time, even though it has been fully charged in the factory prior to shipment.
  • Page 10 UHF Beltpack Transmitter SM-5016 First turn on the Power of the main unit. Then turn on the individual power of the SDR-6216m/ SDR-6116m receiver module. Select a desired channel by pressing the ? or ? button and the corresponding channel on the Transmitter. Parts &...
  • Page 11 Operation of system with CD / USB Player. This operation is valid for version of Challenger 1000 with built-in " CD / USB Player" To operate, push the Power/Vol button to turn on the player. The LCD panel on the player will be lighted up and normal operation is ready.

  • Page 12: Parts And Functions

    The Challenger 1000 could be operated as MASTER only. The Challenger Slave can only be operated as SLAVE. In order to operate Audio Link, you must have a Challenger 1000 unit that operates as a MASTER. Only one unit is allowed to act as MASTER and the other(s) MUST operate as SLAVE(s).

  • Page 13: Changing Channels

    UHF HANDHELD MICROPHONE SQ-1016 Volume Control ( 6 ) for MASTER or ( 21 ) for SLAVE. When used on the MASTER, it controls the MASTER as well as all the SLAVE units. Parts and functions When used on the SLAVE unit, it only controls that particular SLAVE unit volume. Maximum number of SLAVE units to be connected with a MASTER is about 20.
  • Page 14 Battery Charging Internally, the Challenger 1000 contains 2 pcs of 12V / 5AH maintenance free lead acid battery, which has no memory effect. When the batteries are weak, the power indicator ( 11) LED will keep lighted still. To charge the batteries, simply plug in the AC power supply, the charging process will start automatically.
  • Page 15 UHF Handheld Transmitter SQ-5016 Operating the Tape Deck To begin operation switch on the TAPE Power after the main power of Challenger 1000 has Parts and functions been turned on. Keys Functions FF Fast Forward Press this key for fast forward .
  • Page 16 Challenger 1000. To begin operation switch on the CD Power after the main power of Challenger 1000 has been 10 . The SD card is a very precise electronic part, please use it according to the following notice: turned on.
  • Page 17 5. MODE key------ Push the MODE key with another key for special function selection. The In stop mode: LCD will show "MODE" when push MODE key, you shall push another Skip the starting play folder to previous folder during stop mode, cyclic function key to perform the function.
  • Page 18 Operating the Digital Recorder Product Features : 1.Digital record to MP3 compression format 2.Highest sample rate at 44.1KHz, 128Kbps (as CD quality). 3.1 - 99 recording tracks. 4.Equiped with 128MB flash memory for 60 min. recording time. 5.Available expanded memory socket of SD card. Up to 512MB ( When using 512 MB SD card, the recording time is available for over 8 hours.) ( If using 1G MB SD card, it will be divided into 99 recording tracks, each track with recording time less than 9:59:59 will be able to display time function on LCD.)
