120 V~/230 V~ activation of the SKPx5 actuator
Building Technologies

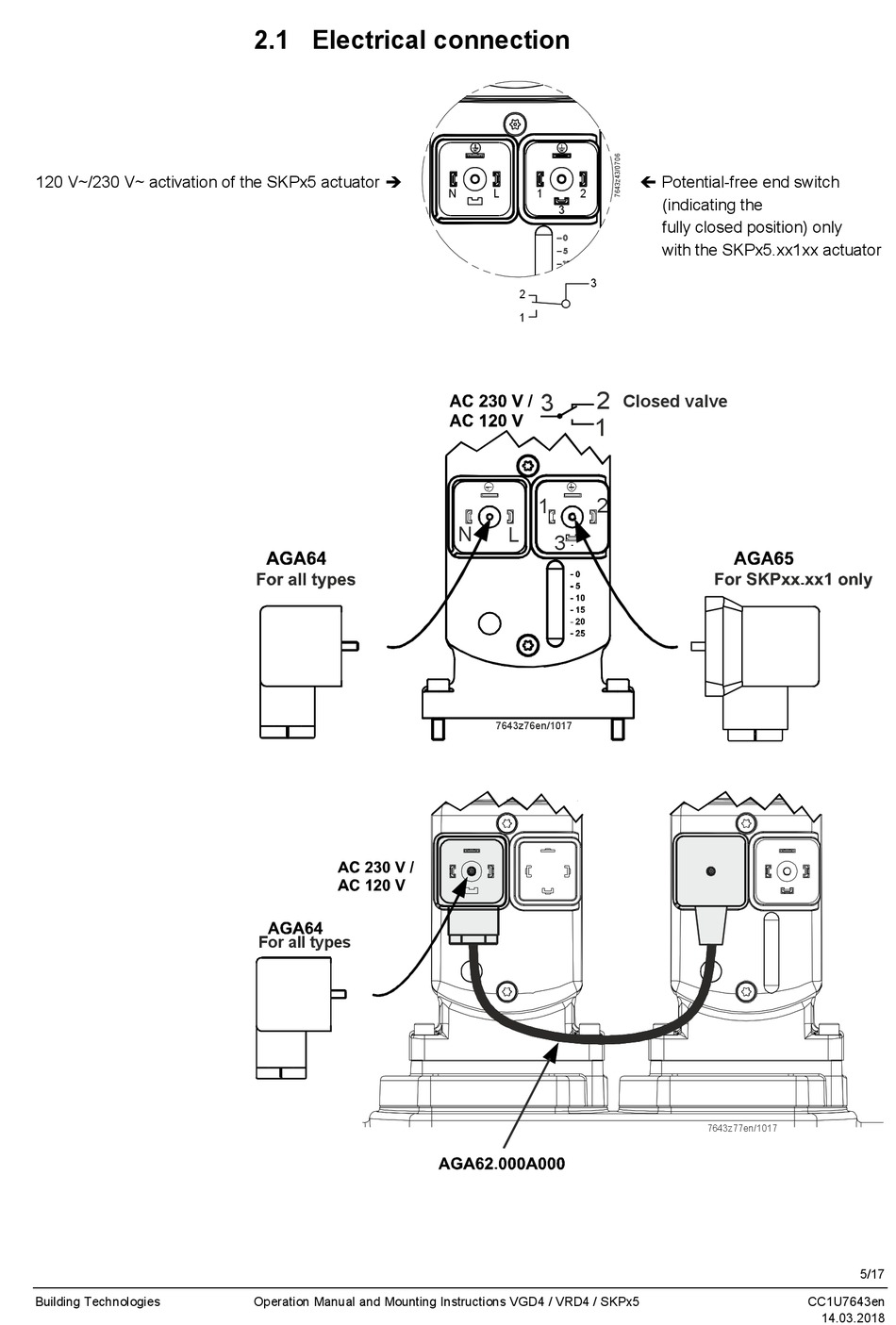

2.1 Electrical connection
For all types
Operation Manual and Mounting Instructions VGD4 / VRD4 / SKPx5
N
L
1
2
3
3
2
1
2
3
1
1
2
N
L
3
7643z76en/1017
Potential-free end switch
(indicating the
fully closed position) only
with the SKPx5.xx1xx actuator
Closed valve
7643z77en/1017
5/17
CC1U7643en
14.03.2018
