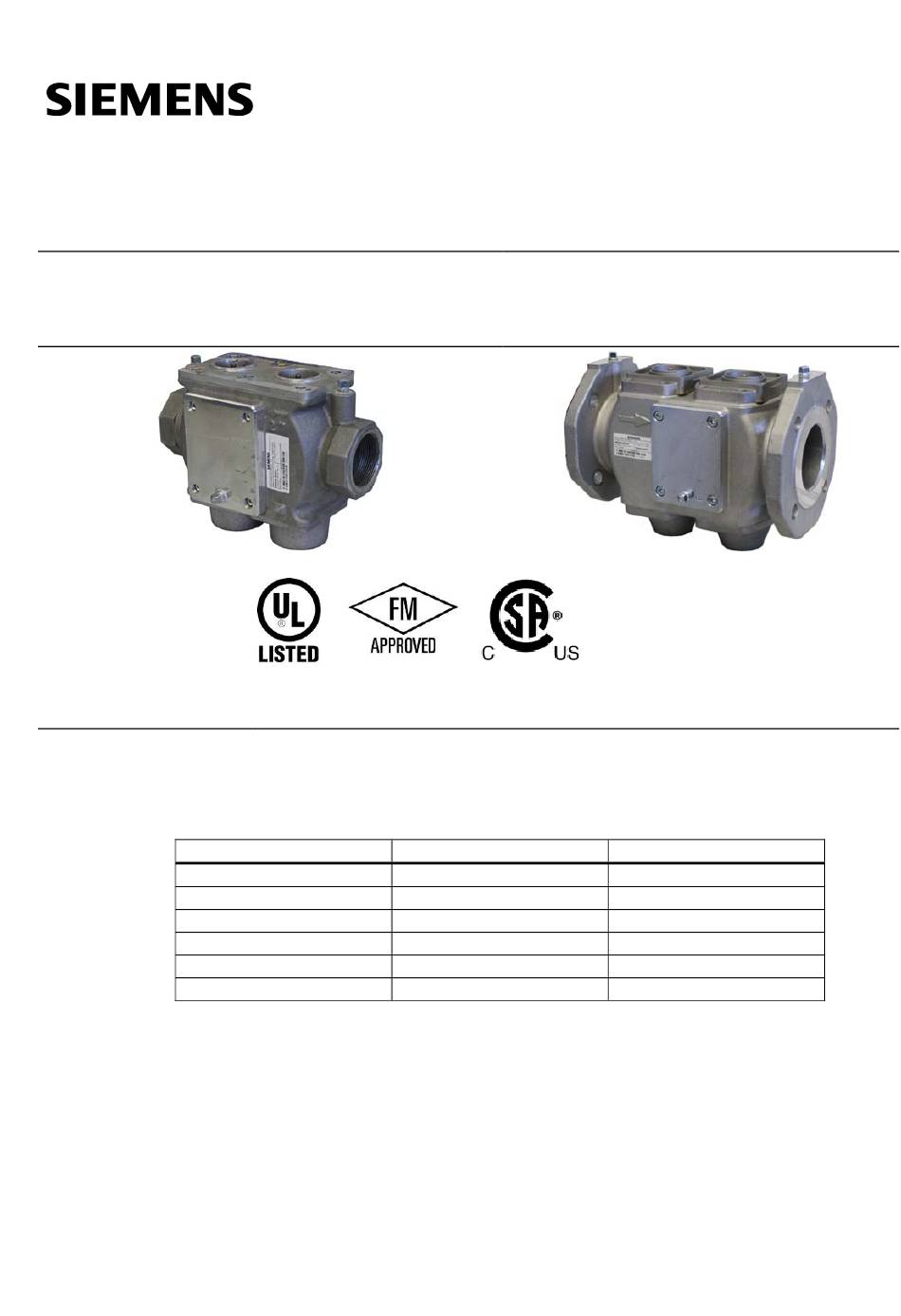

Siemens VRD Series Technical Instructions

Double valves for use with skp electro-hydraulic actuators
Hide thumbs

Advertisement

Quick Links

VRD Series
VRD40.xxxUx Double Valves
for use with SKP... electro-hydraulic actuators
ISO 9001 and 14001
REGISTERED FIRM
Description
Only with series SKPxx.xxxUx actuators
The normally closed VRDxx.xxxUx series of modular double-body gas valves combine
with SKP... series electro-hydraulic actuators to provide safety shut-off, gas pressure
regulation and/or air-gas ratio control for commercial or industrial gas burners.
Table 1. VRDxx.xxxU model numbers
Model Numbers
VRD40.040U
VRD40.050U
VRD40.065UF
VRD40.080UF
VRD40.100UF
VRD40.150UF
Technical Instructions
Body style
Double
Double
Double
Double
Double
Double
Document No. 7649
VRD40.xxxUx
September 08, 2016
Connection
NPT thread
NPT thread
ANSI flange
ANSI flange
ANSI flange
ANSI flange
Siemens AG Building Technologies Division
