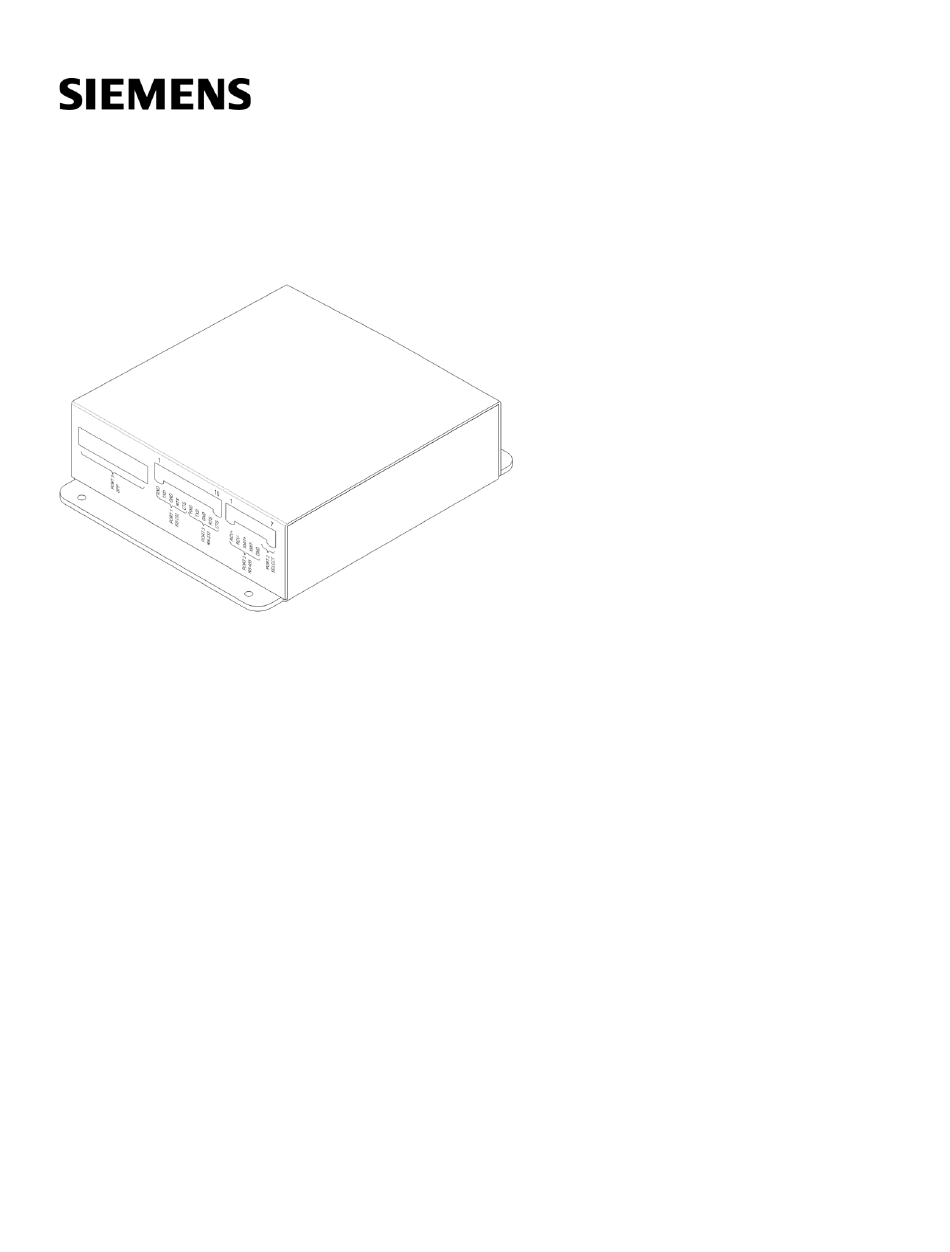

- Page 1 VESDA Peripheral Module Installation Instructions Model VPM Installation Mounting A6V10347523_en--_g 2025-03-05...
-
Page 2: Cybersecurity Disclaimer
Siemens’ portfolio undergoes continuous development to make it more secure. Siemens strongly recommends that updates are applied as soon as they are available and that the latest versions are used. Use of versions that are no longer supported, and failure to apply the latest updates may increase your exposure to cyber threats. -
Page 3: Legal Notice
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. Issued by: Siemens Industry, Inc. Smart Infrastructure 2 Gatehall Drive Parsippany, NJ 07054 Tel. - Page 4 VESDA® detector in Zeus agrees with the address assigned to it by the VESDA® programming tool. The VPM communicates the status of the VESDA® devices over HNET to the FireFinder- XLS/Desigo Fire Safety Modular/Cerberus PRO Modular System where it can be displayed on the Operator Interface (OI).
-
Page 5: Operation
The VPM communicates all relevant device and event information, such as alarms and troubles, to the OI. The sensitivity of any VESDA® detector can be checked from the OI through the VPM. All information about the devices on the loop can be displayed on the OI. -
Page 6: Pre-Installation
Port 2 RS-485 connector. 3.1 Configuring VESDAnet for use with the VPM In order to comply with UL/ULC timing requirements for supervision of the VESDA detectors on VESDAnet, two supervision parameters must be set. While logged on and configuring the VESDAnet system with the Xtralis VSC program, perform the following steps: 1. - Page 7 Pre-Installation Configuring VESDAnet for use with the VPM It is also recommended to set the system date and time while configuring the VESDAnet. 1. In the tree view, right click on “VESDAnet.” 2. Select “device” from the options list. 3. Select “Select system date and time.” 4.
- Page 8 Mount the VPM to the VPM-MP on the upper right side of the bracket, as shown in Figure 3. One VPM-MP uses one CC-5 slot. Refer to the VPM-MP installation instructions, P/N A6V10347525, for information on mounting the VESDA-HLI-KIT (HLI high level interface card, socket card and cables) on the VPM-MP.
- Page 9 Mounting Configuring VESDAnet for use with the VPM Fig. 4: Powering The VPM / HLI(s) From A PSC-12 or PSC-12M/PSX-12 or PSX-12M NOTES: 1. 18 AWG min., 12 AWG max. 2. Power limited to NFPA72 per NEC 760. 3. No end of line device required. 4.
- Page 10 Mounting Configuring VESDAnet for use with the VPM Fig. 5: Powering The VPM / HLI(s) From A PAD-3 NOTES: 1. 18 AWG min., 12 AWG max. 2. Power limited to NFPA72 per NEC 760. 3. No end of line device required. 4.
- Page 11 Mounting Configuring VESDAnet for use with the VPM Fig. 6: VPM to HLI Connection NOTES: 1. 4000 feet maximum between devices on the VESDAnet® network. 2. Total VESDAnet® length must not exceed 16,000 feet. 3. Recommended cable: Belden 9841 or equivalent. 4.
- Page 12 VESDA® detector model. To determine if your configuration falls within the limits of an HLI, first add up the number of VESDA® detector nodes (see Table 1) that you plan for this HLI. This value must be <= 100.
- Page 13 VLS-210 VEU-A00***+ VES-A00-P***** VEU-A10***+ VES-A10-P***** E-Series SCANNER VEP-A00-1P-UL VES-A00-P-UL VEP-A00-P-UL VES-A10-P-UL VESDA-E (7th VEP-A10-P-UL edition) VEU-A00-UL VEU-A10-UL LaserINDUSTRIAL VLI-885** FireTRACER VFT-15** Table 1: VESDAnet® COMPATIBLE DEVICES *Requires VIC-010 VESDAnet® Card. **On these detectors, a jumper must be installed between the VESDAnet® A pair and B pair shield.
- Page 14 Mounting VESDAnet Limitations VESDA E Siemens P/N VESDA E Displayed in VLP Siemens equivalent model (VESDA E) Description Zeus as Description model VESDA VLC- 505 LASER VEP-A00-1P S54333-Z30- VEP with VEP-A00-1P *VLC w/ Zone VLC-505 500-699893 LEDs, 1 Pipe Compact 1-Pipe...
- Page 15 Mounting HNET Connection 4.2 HNET Connection The VPM can be connected to the HNET either Style 4 or Style 7. Refer to the Zeus configuration for the proper Style. In either case, the VPM can be connected in the middle of an HNET. For a Style 4 network, the VPM can also be connected at the end. If the VPM is connected at the end, care must be taken to properly terminate the HNET See Figures 8 and 9 for the wiring instructions when the VPM is in the middle and Figure 10 when the VPM is at the end of the network.
- Page 16 Mounting HNET Connection Fig. 9: VPM In The Middle Of A Style 7 HNET NOTES: 1. No end of line resistor required. VPM termination set to OFF. 2. 18 AWG min., 12 AWG max. 3. 2000 feet max. between NIC-Cs. 4.
- Page 17 Mounting HNET Connection NOTES: 1. No end of line resistor required. VMP termination set to ON. 2. 18 AWG min., 12 AWG max. 3. 2000 feet max. for NIC-C. 4. Use twisted pair or shielded twisted pair. 5. Terminate shield at one end only. 6.
-
Page 18: Installation
Installation 5 Installation The VPM mounts on the VPM-MP along with up to two HLI modules and 2 socket cards. The VPM-MP mounts in any CAB (CAB1, CAB1-X, CAB2 or CAB3) enclosure where a CC-5 can be mounted. The VPM-MP can also be mounted on a CAB-MP mounting plate. -
Page 19: Electrical Ratings
Electrical Ratings 6 Electrical Ratings N.A. 24V Back Plane Current N.A. N.A. Screw Terminal 24V 50mA Max. 110mA Max 110mA Max. Current 6.2V Back Plane Current N.A. N.A. 24V Standby Current 50mA Max. 110mA Max. Output Power HNET/VESDAnet® 8V peak to peak max. 8V peak to peak max. - Page 20 Electrical Ratings Fig. 12: Power Limited Wiring Separation 20 | 21 2025-03-05 A6V10347523_en--_g...
- Page 21 Issued by Siemens Industry, Inc. Smart Infrastructure 2 Gatehall Drive Parsippany, NJ 07054 +1 973-593-2600 www.usa.siemens.com/fire © Siemens, 2025 Technical specifications and availability subject to change without notice. A6V10347523_en--_g...
