NEUTRIK StageBox Assembly Instructions

Assembly Instructions
1
2
A
3
4

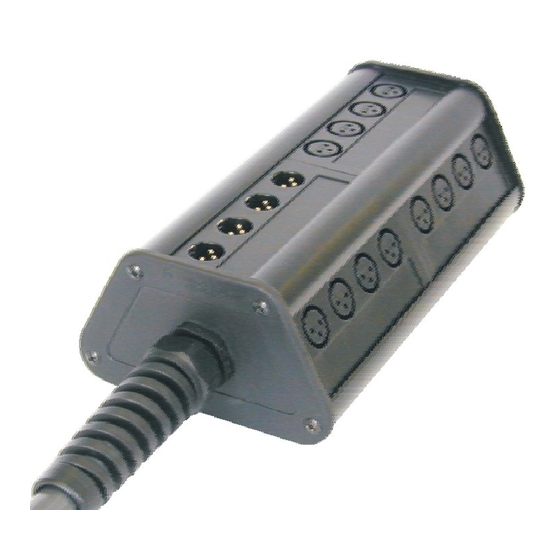

Modular Connector Box System
B
L for Size
max
1 = 180 mm [7.0"]
2 = 300 mm [11.8"]
3 = 420 mm [16.5"]

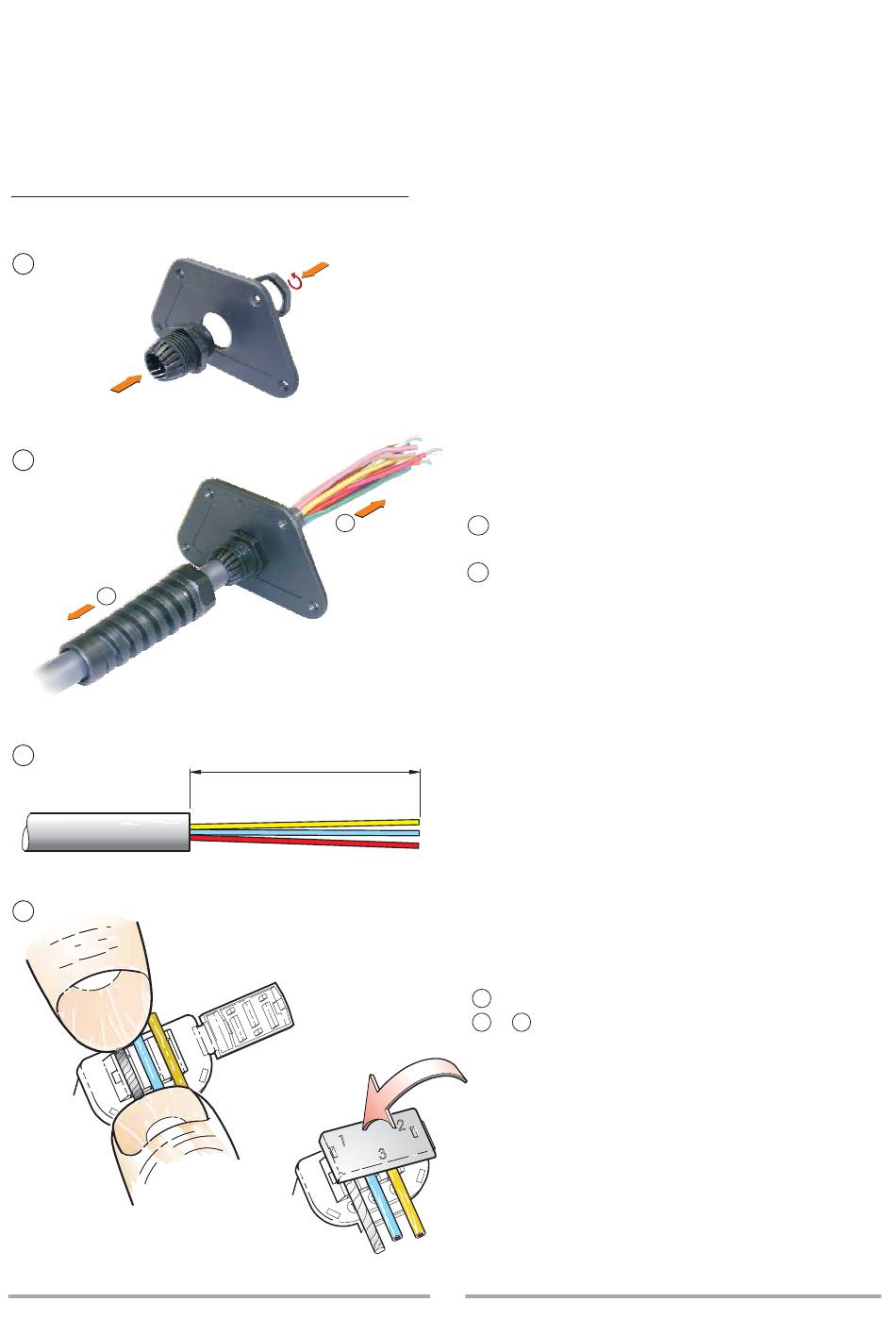

1. Assemble strain relief into the end piece with
the hole.
2. A Slide the bushing onto the cable.
B Insert the cable into the strain relief.
3. Prepare the cable according to the drawing.
4. Insert the wire per channel into the cable clamps
of each connector, check the channel numbering
and the pin numbering of the XLR:
1 = shield
2 + 3 = signal wires
Œ
StageBox
