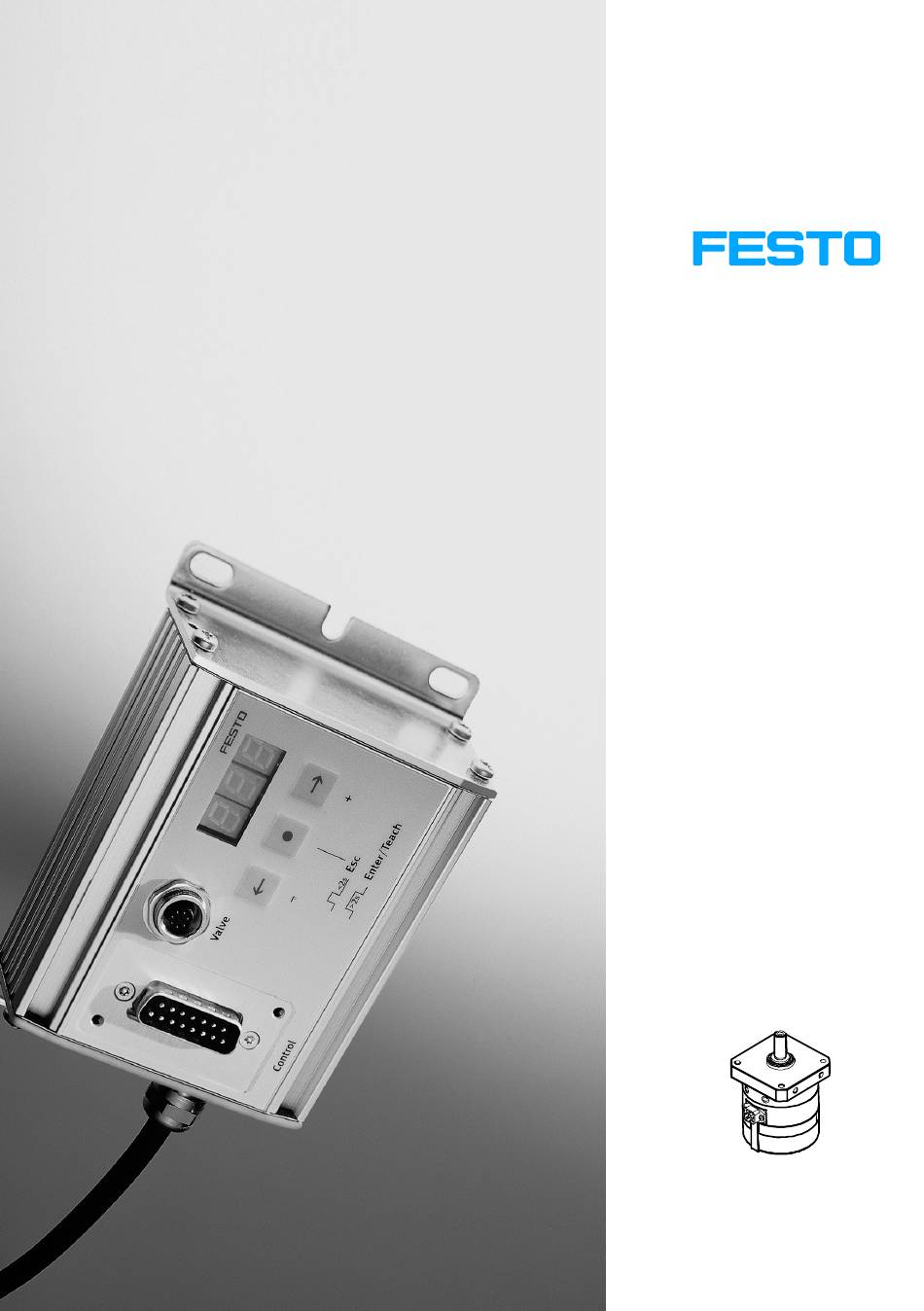

Soft Stop SPC11
Supplementary
description
Drive−specific
supplement for
operation of the
SPC11 with rotary
and vane drive
type DSMI−...
Manual
196 742
en 0910b
[750 082]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPC11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Festo SPC11

Summary of Contents for Festo SPC11

  • Page 1 Soft Stop SPC11 Supplementary description Drive−specific supplement for operation of the SPC11 with rotary and vane drive type DSMI−... Manual 196 742 en 0910b [750 082]...
  • Page 3 ....... . . 196 742 © (Festo AG & Co. KG, D 73726 Esslingen, Federal Republic of Germany, 2009) Internet: http://www.festo.com...
  • Page 4 Contents and general instructions Festo P.BE−SPC11−DSMI−EN en 0910b...

  • Page 5: Table Of Contents

    ..... . . 1−5 Parameters of the SPC11 for the DSMI−......
  • Page 6 Contents and general instructions Festo P.BE−SPC11−DSMI−EN en 0910b...

  • Page 7: Intended Use

    Contents and general instructions Intended use The SPC11 has been designed for fitting into a machine or an automation device. In conjunction with permitted drives and measuring systems and a proportional directional control valve type MPYE−5−..., the SPC11 enables: fast movement into the mechanical end positions and one or two selectable mid−positions...

  • Page 8: Service

    Contents and general instructions Service If you have any technical problems, please contact your local Festo Service. Target group This manual is intended exclusively for personnel trained in control and automation technology. Festo P.BE−SPC11−DSMI−EN en 0910b...

  • Page 9: Important User Instructions

    This means that failure to observe this instruction may result in damage to property. The following pictogram marks passages in the text which describe activities with electrostatically sensitive compo nents. Electrostatically sensitive components may be damaged if they are not handled correctly. Festo P.BE−SPC11−DSMI−EN en 0910b...
  • Page 10 Accessories: Information on necessary or sensible accessories for the Festo product. Environment: Information on environment−friendly use of Festo products. Text markings The bullet indicates activities which may be carried out in any order. 1. Figures denote activities which must be carried out in the numerical order specified.

  • Page 11: Product−Specific Terms And Abbreviations

    Teach procedure In the Teach procedure, the SPC11 checks the set parameters, learns the position of the mechanical fixed stops as well as various characteristic system values and saves these in the integrated EEPROM.

  • Page 12: Notes On This Manual

    1) These manuals contain the permitted drive−valve combinations, drive diameters, lengths and mass loads as well as the parameter settings valid here for the SPC11. Please note For installation and commissioning you will require the system manual as well as the manual Drive−specific sup...

  • Page 13: Summary Of Components

    Summary of components Chapter 1 1−1 Festo P.BE−SPC11−DSMI−EN en 0910b...
  • Page 14 ....... . . 1−4 Notes on installing the pneumatic components ..... . . 1−5 1−2 Festo P.BE−SPC11−DSMI−EN en 0910b...

  • Page 15: General Instructions

    P.BE− SPC11−SYS..Use only the special matching components from Festo for setting up and wiring the system. Only in this way can you guarantee the correct functioning of the system.

  • Page 16: System Structure With The Dsmi

    Fixed stop for end position POS1 Service unit (without lubricator, with 5 ìm filter) Earthing cable Compressed air supply (5...7 bar) Connection for I/O coupling (e.g with PLC) Fig. 1/1: System structure of the SPC11 with rotary drive type DSMI−... 1−4 Festo P.BE−SPC11−DSMI−EN en 0910b...

  • Page 17: Notes On Installing The Pneumatic Components

    General rules for building up the system can be found in the system manual type P.BE−SPC11−SYS..Special instructions on operation with rotary drive type DSMI−... can be found in the following sections:...
  • Page 18 Notes on installation see the following sections Fig. 1/2: Summary of pneumatic installation Compressed air supply ( 1 ) See system manual type P.BE−SPC11−SYS... Service unit ( 2 ) See system manual type P.BE−SPC11−SYS... Compressed air reservoir ( 3 ) See system manual type P.BE−SPC11−SYS...
  • Page 19 1. Summary of components Compressed air tubing and screw connectors ( 4 ) See system manual type P.BE−SPC11−SYS... Arrange the tubing between the proportional directional control valve (MPYE−5−...) and the drive (DSMI−...) sym metrically. Recommendation: Tubing length = max. 300 mm Cut the tubing and the connectors to the required length as shown in the following table.
  • Page 20 1. Summary of components Proportional directional control valve ( 5 ) See system manual type P.BE−SPC11−SYS... Work connection 2 of the proportional directional control valve must be connected to the port which moves the drive in the direction POS2. Fixed stop for end position POS2...
  • Page 21 1. Summary of components The drive shaft of the DSMI−... The drive shaft of the DSMI−... is positioned vertically downwards is positioned vertically upwards Fig. 1/4: Connecting the tubing of the DSMI−... 1−9 Festo P.BE−SPC11−DSMI−EN en 0910b...
  • Page 22 The end position cushioning is regulated electronically. In con junction with the SPC11 special mass moments of inertia there fore apply (see Parameters for the DSMI−..." in chapter 2). Please note Make sure that the permitted mass moment of inertia is observed.
  • Page 23 Connect the drive and the load in the direction of move ment free of play. For earthing, connect the earthing connection of the DSMI−... and the earth connection of the SPC11 with low impedance with an earthing band (short cable with large cross−sectional area; see Fig. 1/1).
  • Page 24 1. Summary of components Fixed stops ( 7 ) If the DSMI−... is operated in conjunction with the SPC11, fixed stops will be required. By means of the fixed stops, the end positions can be set as desired. Notes on setting the fixed stops can be found in the operating instructions for the DSMI−...
  • Page 25 Permitted mass moments of inertia see Parameters for the DSMI−..." in chapter 2. The tables listed there contain all the drive−valve combinations and mass moments of inertia per mitted for operating the DSMI−... with the Soft Stop SPC11. 1−13 Festo P.BE−SPC11−DSMI−EN en 0910b...
  • Page 26 1. Summary of components Festo supports you in ascertaining the mass moment of inertia with the MTM calculation program (Internet: http://www.festo.com). This program serves for calculating the mass moments of inertia of 2nd. grade for various basic bodies and Festo standard parts (e.g. plug−on flange for DSMI−...).

  • Page 27: Parameters Of The Spc11 For The Dsmi

    Parameters of the SPC11 for the DSMI−... Chapter 2 2−1 Festo P.BE−SPC11−DSMI−EN en 0910b...
  • Page 28 2. Parameters of the SPC11 for the DSMI−... Contents Parameters of the SPC11 .........

  • Page 29: Parameters Of The Spc11

    Incorrectly set parameters can damage the fixed stops and the drive. Be very careful when setting the parameters. The SPC11 must be familiar with certain conditions of use. These conditions of use are described by the following three parameters, which must be entered directly on the SPC11:...
  • Page 30 Mass moment of inertia Festo supports you in ascertaining the mass moment of iner tia with the MTM calculation program (Internet: http://www.festo.com). This program serves for calculating the mass moments of inertia of 2nd. grade for various basic bodies and Festo standard parts (e.g.

  • Page 31: Setting Parameters

    2. Parameters of the SPC11 for the DSMI−... Setting parameters Warning Incorrectly set parameters can damage the fixed stops and the drive. Always select the amplification and cushioning stages for the maximum mass moment of inertia.If in doubt, set first the amplification and cushioning stages for the lager mass moment of inertia.
  • Page 32 2. Parameters of the SPC11 for the DSMI−... The medium swivel times specified apply to a swivel angle of 270°. In individual cases it may be necessary to optimize the positoning behaviour (see system manual) DSMI−...−... in horizontal operation DSMI−25−...

  • Page 33: Parameters For The Dsmi

    2. Parameters of the SPC11 for the DSMI−... Parameters for the DSMI−...−... in horizontal operation DSMI−...−... in horizontal operation DSMI−25−... DSMI−40−... DSMI−63−... MPYE−5−M5−010B MPYE−5−1/8LF−010B MPYE−5−1/8LF−010B On request 0,75 0,64 0,66 0,78 0,71 0,65 0,79 0,73 0,70 0,82 1200 23 0,76...
  • Page 34 2. Parameters of the SPC11 for the DSMI−... 2−8 Festo P.BE−SPC11−DSMI−EN en 0910b...

  • Page 35: Technical Appendix

    Technical appendix Appendix A A−1 Festo P.BE−SPC11−DSMI−EN en 0910b...
  • Page 36 ............A−5 A−2 Festo P.BE−SPC11−DSMI−EN en 0910b...

  • Page 37: Repetition Accuracy

    DSMI−25−... ± 2° DSMI−40−... ± 2° DSMI−63−... ± 2° Please note Observe the instructions on repetition accuracy in the sys tem manual in order to achieve good positioning behav iour and the repetition accuracy specified. A−3 Festo P.BE−SPC11−DSMI−EN en 0910b...
  • Page 38 A. Technical appendix A−4 Festo P.BE−SPC11−DSMI−EN en 0910b...

  • Page 39: Index

    ........Manuals on the SPC11 .
  • Page 40 ........VIII A−6 Festo P.BE−SPC11−DSMI−EN en 0910b...
