CR825 Instant Issuance System
d
1
2
3
4
5
10
6
OR
Press until correct digit displays
7
Repeat 6 & 7 for each digit
8
9
527749-001EN_E
6

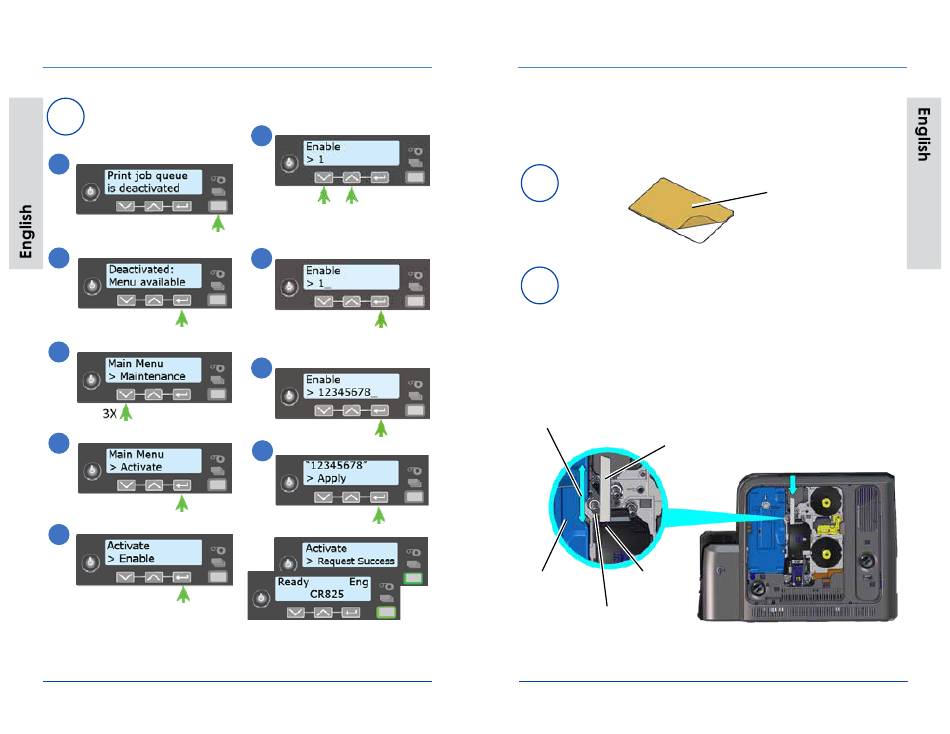

Clean the Printhead Cam Rollers
a
b
1. Insert the cleaning card vertically into the printer between
the retransfer cartridge guidepost and the rollers. The
adhesive side of the card should face to the right and touch
the rollers.
2. Move the cleaning card up and down along the rollers to
remove debris.
Move the cleaning
card up and down
Sticky
Cleaning Card
Printhead
Ink Ribbon
Cam Rollers
Cartridge
Guidepost
527749-001EN_E
Quick Install Guide
Sticky
Cleaning Card
11
