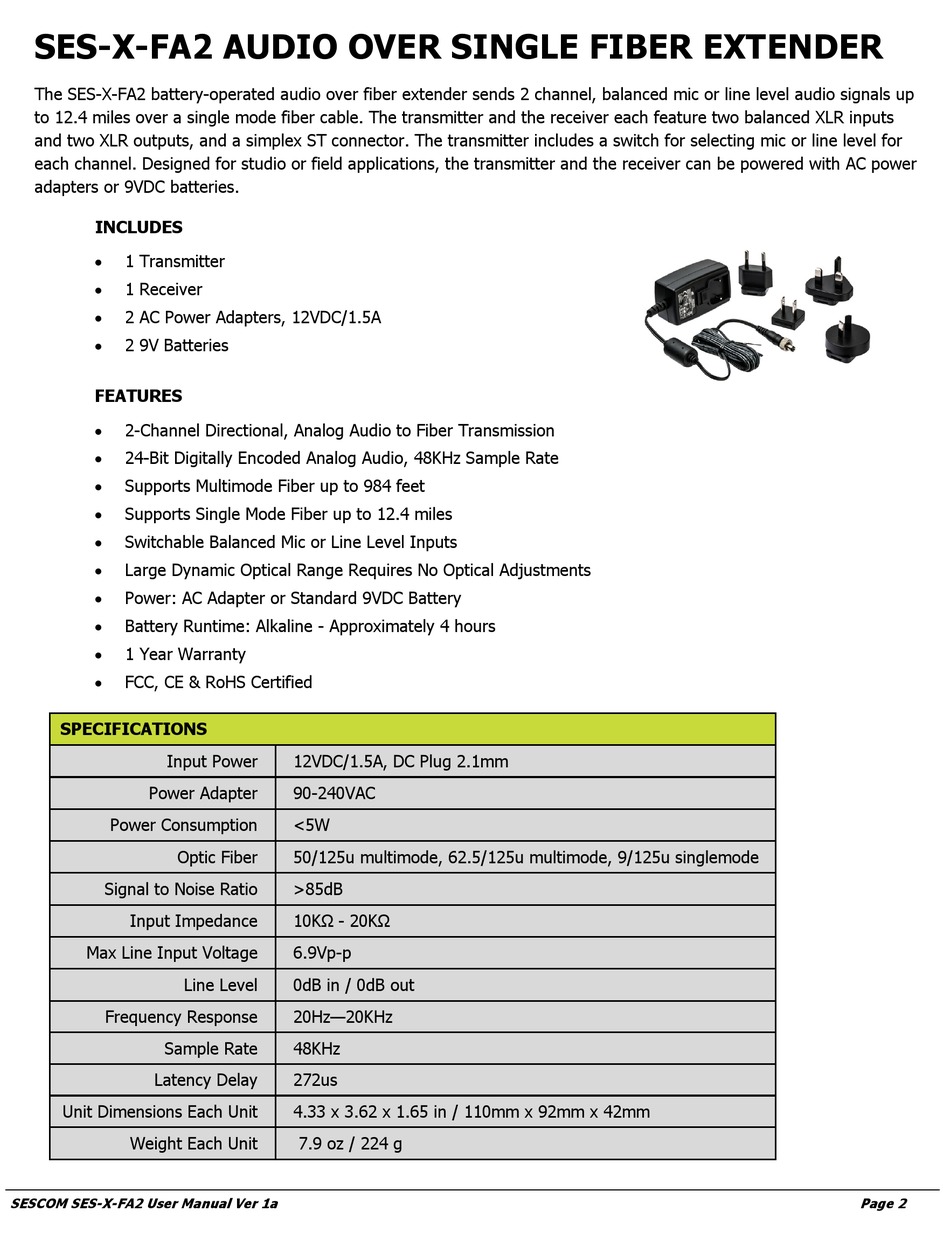

SES-X-FA2 AUDIO OVER SINGLE FIBER EXTENDER
The SES-X-FA2 battery-operated audio over fiber extender sends 2 channel, balanced mic or line level audio signals up
to 12.4 miles over a single mode fiber cable. The transmitter and the receiver each feature two balanced XLR inputs
and two XLR outputs, and a simplex ST connector. The transmitter includes a switch for selecting mic or line level for
each channel. Designed for studio or field applications, the transmitter and the receiver can be powered with AC power
adapters or 9VDC batteries.

INCLUDES

 1 Transmitter
 1 Receiver
 2 AC Power Adapters, 12VDC/1.5A
 2 9V Batteries

FEATURES

 2-Channel Directional, Analog Audio to Fiber Transmission
 24-Bit Digitally Encoded Analog Audio, 48KHz Sample Rate
 Supports Multimode Fiber up to 984 feet

Supports Single Mode Fiber up to 12.4 miles
 Switchable Balanced Mic or Line Level Inputs
 Large Dynamic Optical Range Requires No Optical Adjustments
 Power: AC Adapter or Standard 9VDC Battery
 Battery Runtime: Alkaline - Approximately 4 hours
 1 Year Warranty
 FCC, CE & RoHS Certified

SPECIFICATIONS

Input Power
Power Adapter
Power Consumption
Optic Fiber
Signal to Noise Ratio
Input Impedance
Max Line Input Voltage
Line Level
Frequency Response
Sample Rate
Latency Delay
Unit Dimensions Each Unit
Weight Each Unit
SESCOM SES-X-FA2 User Manual Ver 1a
12VDC/1.5A, DC Plug 2.1mm
90-240VAC
<5W
50/125u multimode, 62.5/125u multimode, 9/125u singlemode
>85dB
10KΩ - 20KΩ
6.9Vp-p
0dB in / 0dB out
20Hz—20KHz
48KHz
272us
4.33 x 3.62 x 1.65 in / 110mm x 92mm x 42mm
7.9 oz / 224 g
