sescom SES-X-FA2LXBT01 Quick Start Manual

2 ch balanced xlr bidirectional line level audio over fiber extender

SES-X-FA2LXBT01 2 CH Balanced XLR Bidirectional Line Level

FEATURES



2-Channel XLR Bidirectional Audio over Fiber with Singlemode Simplex ST Fiber Connector



24-Bit Digitally Encoded Analog Audio



Transmission Distance up to 12.4 miles over Singlemode Fiber



Adjustment Free Plug & Play Operation



Enable Cascaded Audio Setups



1 Year Warranty



FCC & RoHS Compliant

Audio over Fiber Extender

Table of Contents

Need help?

Do you have a question about the SES-X-FA2LXBT01 and is the answer not in the manual?

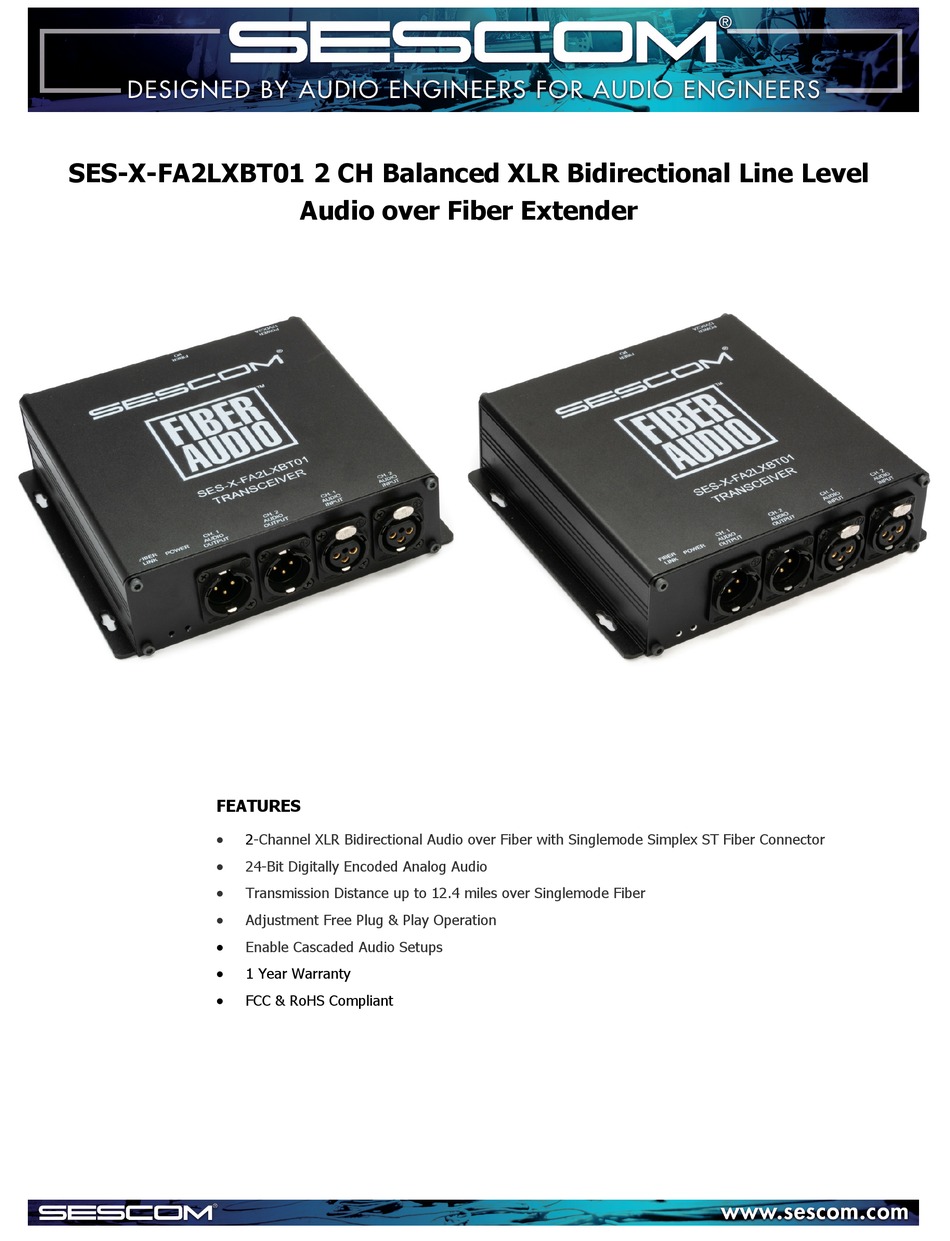

Page 1 SES-X-FA2LXBT01 2 CH Balanced XLR Bidirectional Line Level Audio over Fiber Extender FEATURES  2-Channel XLR Bidirectional Audio over Fiber with Singlemode Simplex ST Fiber Connector  24-Bit Digitally Encoded Analog Audio  Transmission Distance up to 12.4 miles over Singlemode Fiber ...
Page 2 SES-X-FA2LXBT01 AUDIO FIBER EXTENDER Set Up Instructions 1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that can severely affect the signal transfer.
Page 3 SES-X-FA2LXBT01 AUDIO FIBER EXTENDER TRANSCEIVER—EACH UNIT Fiber Link Indicator LED Power Indicator LED Channel 1 Balanced Audio Output Channel 2 Balanced Audio Output Channel 1 Balanced Audio Input Channel 2 Balanced Audio Input DC Power Input Jack ST Fiber I/O Port...
Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SESCOM PO Box 720 • Mt. Marion, NY 12456 • USA 845.246.1915 • sales@sescom.com ...
