sescom FIBER AUDIO SES-X-FA4LXT01 Quick Start Manual

4 ch balanced xlr line level audio over fiber extender

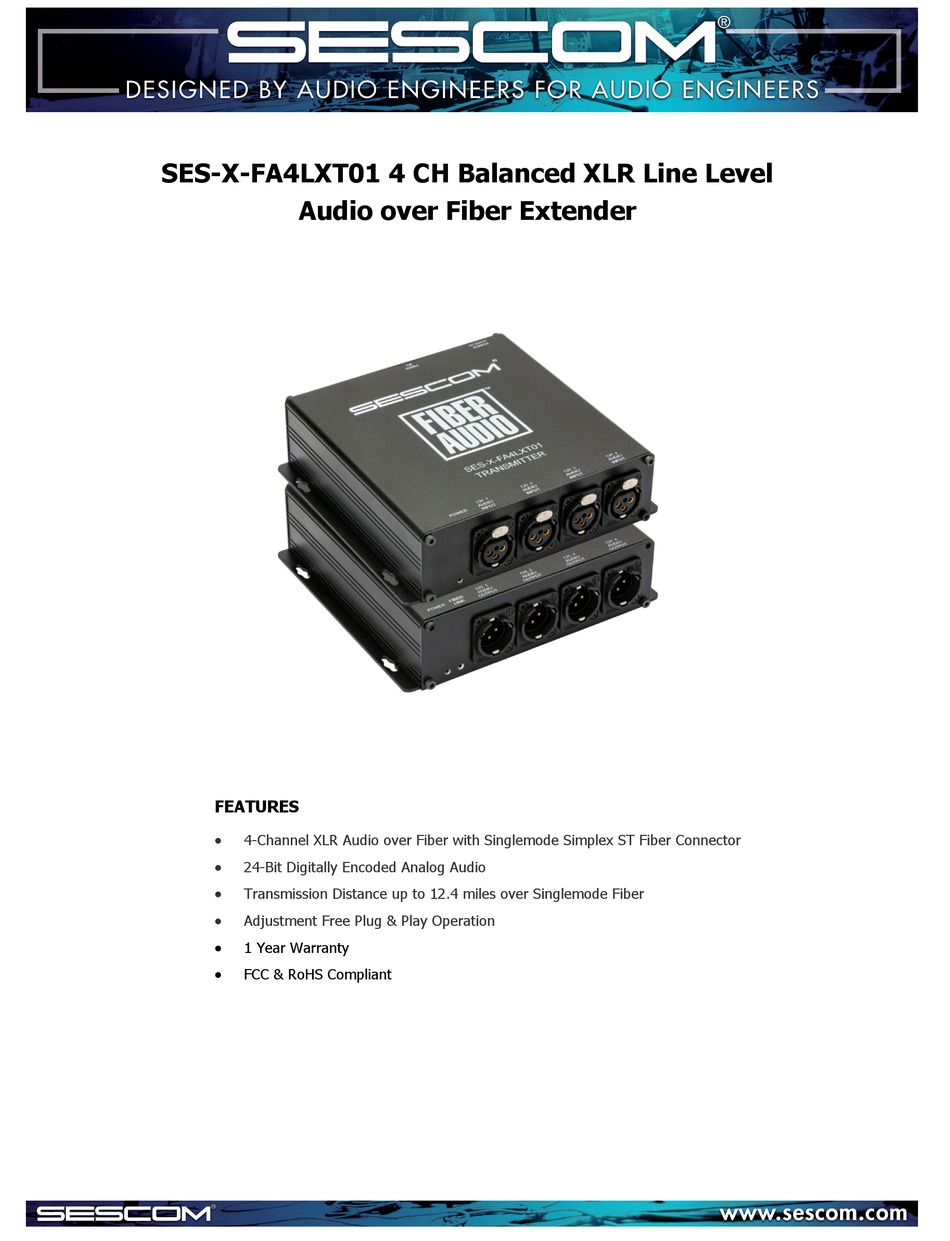

SES-X-FA4LXT01 4 CH Balanced XLR Line Level

Audio over Fiber Extender

FEATURES



4-Channel XLR Audio over Fiber with Singlemode Simplex ST Fiber Connector



24-Bit Digitally Encoded Analog Audio



Transmission Distance up to 12.4 miles over Singlemode Fiber



Adjustment Free Plug & Play Operation



1 Year Warranty



FCC & RoHS Compliant

Table of Contents

Need help?

Do you have a question about the FIBER AUDIO SES-X-FA4LXT01 and is the answer not in the manual?

Page 1 SES-X-FA4LXT01 4 CH Balanced XLR Line Level Audio over Fiber Extender FEATURES  4-Channel XLR Audio over Fiber with Singlemode Simplex ST Fiber Connector  24-Bit Digitally Encoded Analog Audio  Transmission Distance up to 12.4 miles over Singlemode Fiber ...
Page 2 SES-X-FA4LXT01 AUDIO FIBER EXTENDER Set Up Instructions 1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that can severely affect the signal transfer.
Page 3 SES-X-FA4LXT01 AUDIO FIBER EXTENDER TRANSMITTER Power Indicator LED Channel 1 Balanced Audio Input Channel 2 Balanced Audio Input Channel 3 Balanced Audio Input Channel 4 Balanced Audio Input DC Power Input Jack ST Fiber I/O Port RECEIVER Fiber Link Indicator LED Power Indicator LED Channel 1 Balanced Audio Output Channel 2 Balanced Audio Output...
Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SESCOM PO Box 720 • Mt. Marion, NY 12456 • USA 845.246.1915 • sales@sescom.com...
